Automatic and non-automatic clear plastic strip curtain

PVC plastic strip curtain, automatic plastic curtain and non-automatic plastic curtain

PVC Clear Strip Curtains

• Cost-effective climate control: Installing a plastic strip curtain is a cost-effective solution that reduces heat and refrigeration costs.

• Customizable: Choose from a large selection of strip material to best suit your application.

• Increase safety: Clear strip material provides great visibility for oncoming traffic, increasing personnel safety.

• Increase employee comfort: Create an environmental separation while helping to isolate noise between areas of plant activity.

Information

The most economical solution for separating different environments

PVC clear strip curtains are cost-effective solutions for temperature separation between two different environments. The clear, flexible plastic curtain strips provide great visibility for safety in high-traffic areas. All plastic curtain models incorporate rounded edges for protection, while a concave-convex overlapping pattern enhances its sealing effect. Any necessary components including mounting hardware are galvanized to resist corrosion (all components of the 9000E model are galvanized).

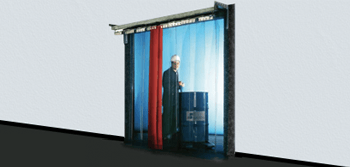

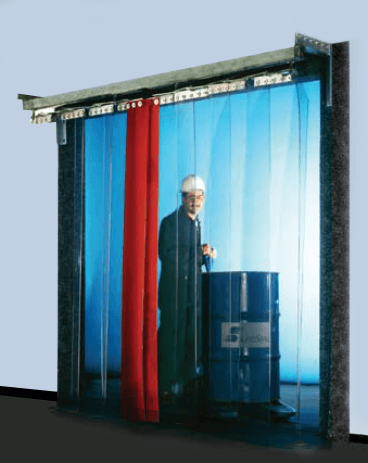

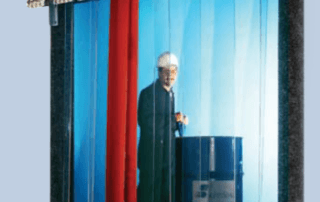

Automatic plastic curtain: 9000E

The Series 9000E plastic strip curtain can be operated either pneumatically or electrically.

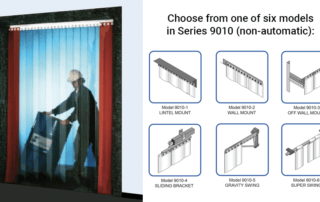

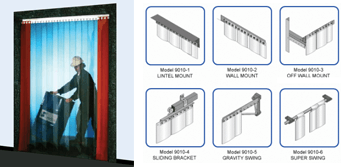

Non-automatic plastic curtain: Series 9010

Choose from one of six different model types to suit your specific application.

Photos

Customers that love this product

Read customer success stories

Models

	Automatic (9000E) The Series 9000E plastic strip curtain can be operated either pneumatically or electrically.
	Non-automatic (Series 9010) Choose from one of six different model types to suit your specific application.

Model comparison chart

	Automatic (9000E)	Non-automatic (Series 9010)
Operating mechanism	1/4 HP, 115V, 1PH, 60 Hz motor, chain pulleys and control panel	N/A
Operation	Hydraulic or electric	N/A
Different mounting options available	No	Yes

Customizations

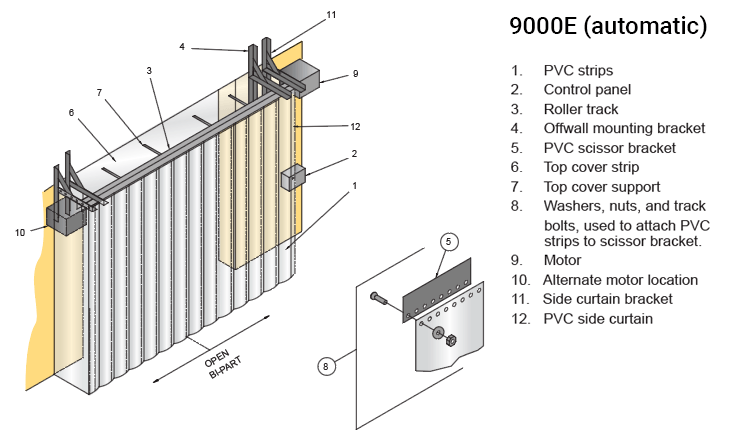

Automatic plastic strip curtain (9000E)

• Activation: photo eye, pull cord, floor loop, motion detector, radio control, remote push-button.
• Freezer package: low temperature PVC panels, galvanized frame, infrared heating for panels and heating bands for frame.

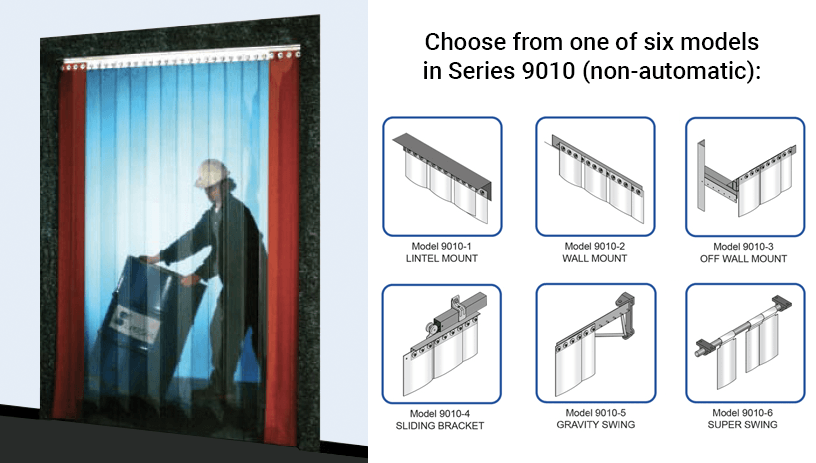

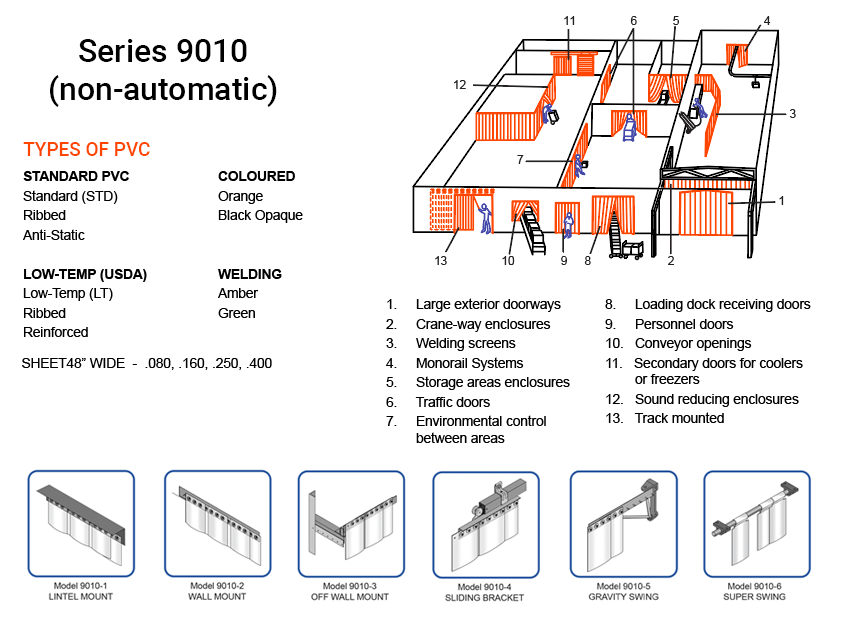

Non-automatic plastic strip curtain (Series 9010)

• Six models to select from: see photos or contact us for more details.
• Available in standard low temp (USDA), ribbed and reinforced PVC.

Warranty

• 1 year limited.
