• Economical: Wheel risers level trailers with loading docks that are otherwise too high.
• High load capacity: Standard aluminum wheel risers are capable of handling 24,000 lbs per pair.
• Customizable: Sizing for wheel risers can be customized to suit any application.
Information
Rugged Aluminum Wheel Risers Essential for Efficient Loading
Rugged aluminum wheel risers are the economical solution to level trailers with loading docks that are otherwise too high. Lightweight by design, these rugged aluminum wheel risers are available in standard heights of 6″, 8″, 10″ or 12″, and standard widths of 18″, 24″ or 30″, with a selection of varying deck lengths.
Each pair of rugged aluminum wheel risers have an extensive load capacity of 24,000 pounds per pair, allowing trailers to be positioned properly above a dock and essential for efficient loading applications. With multiple width, length and custom sizes available, these rugged aluminum wheel risers easily accommodate single, dual, or tandem axle trailers and can be portable or permanently positioned.

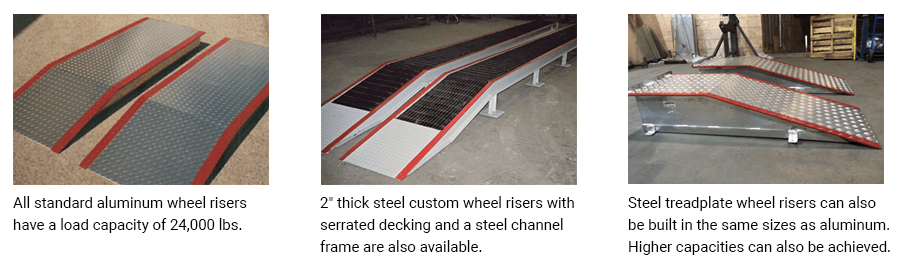

All standard aluminum wheel risers have a load capacity of 24,000 lbs.
2" thick steel custom wheel risers with serrated decking and a steel channel frame are also available.
Steel treadplate wheel risers can also be built in the same sizes as aluminum. Higher capacities can also be achieved.
Photos
Customizations
• Wheel risers constructed 2" thick steel serrated decking and a steel channel frame (same dimensions as aluminum wheel risers with the potential for higher capacities).
Warranty
• 1 year limited.

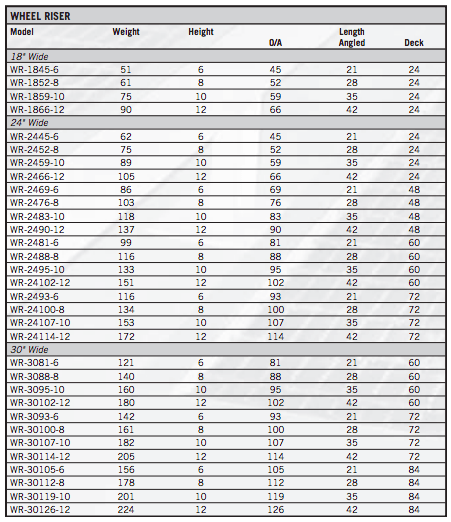

Specifications
 |
