LZR-Widescan Industrial Automatic Door Motion Sensor
LZR-Widescan is a LASER-based, time-of-flight sensor used for motion, safety and presence detection in a variety of industrial door applications. This all-in-one solution offers the benefits of activation and safety while reducing installation time.
- Motion and presence all in one: The LZR-Widescan detect both motion and presence to see people and vehicles even if they’ve stopped and are not moving.
- Activates for pedestrian or forklift traffic: Motion and presence sensors can be set to activate for only people, vehicles or both.
- Speed up workflows: Opens doors without having to stop and push a button.
- Stop the spread of germs: Keep a hygienic environment by never having to touch a door to open it again.
- Install or retrofit: Both dock and pedestrian doors with touchless and automated solutions.
- Protect against pests: Prevents doors from being left open when not in use.
An Automatic Door Method Perfect for:
✓ Entrance doors

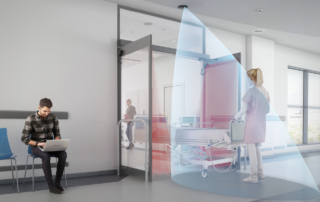

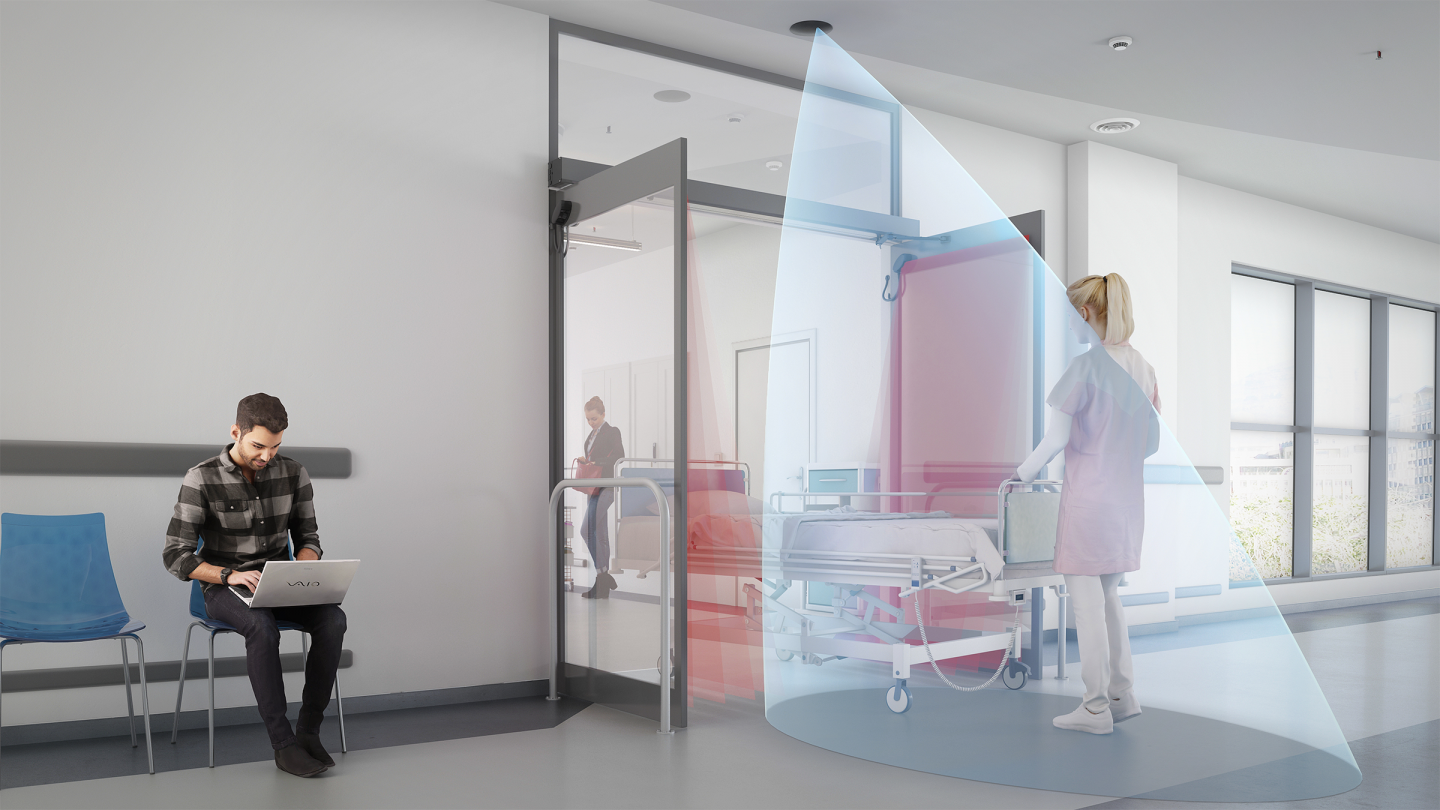

✓ Swing doors

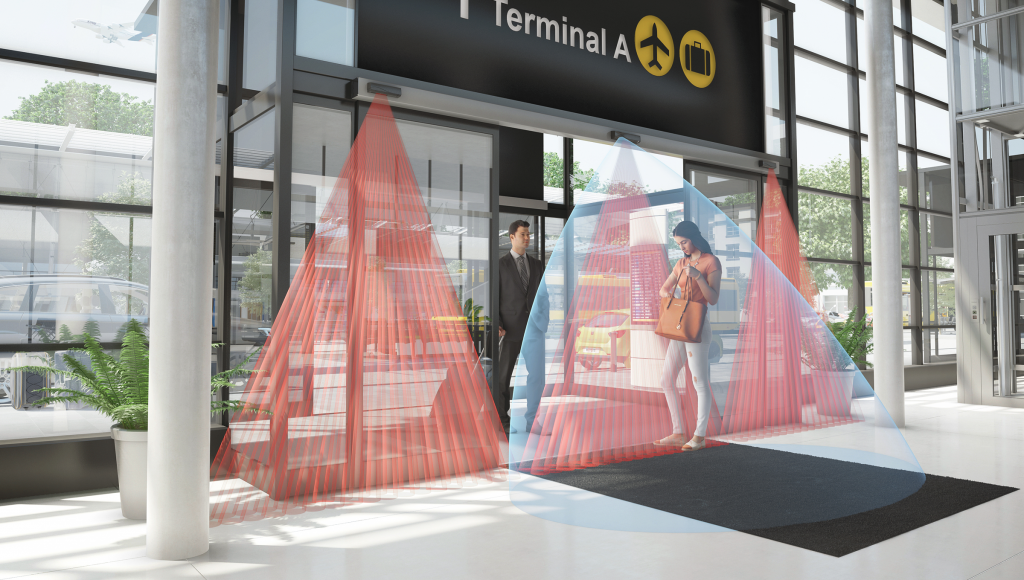

✓ Sliding doors
✓ Lunchroom doors
✓ Vehicle gates/barriers
✓ Parking garages
✓ Loading docks
✓ Industrial doors
✓ Food service facilities
✓ Cleanroom doors
✓ Vehicle detection
✓ Pedestrian and parallel traffic rejection
✓ Barrier arm activation
Information
Prevent Cross-Contamination
Prevent cross-contamination by never having to touch the door to open it. Install or retrofit dock, industrial, commercial and pedestrian doors with automatic motion sensor solutions.
Energy Savings & Pest Control
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Adjustable Detection Settings
These motions and presence sensors can distinguish between approaching, departing and parallel traffic. They can be set up to open when:
- Only people approach the door.
- Only forklifts or cars approach the door
- Either people, forklifts or cars approach the door.
Virtual Pull Cord
Virtual pull cords offer hands-free activation without needing to add push buttons or other activation switches. By programming up to three virtual pull cords, you can have designated activation spots for pedestrians and vehicles.
- Eliminates ceiling clutter.
- Reduces touchpoints for a more hygienic environment.
- Encourages traffic patterns.
Remote Control Adjustments
Remote control programming allows for quick and safe changes to be made from the ground with either a remote controller or mobile app.
Rated For Harsh Environments
IP65 and NEMA 4 rated enclosure.
Speed Up Workflows
Pair up your motion sensor with a high-speed door operator to open doors up to x4 faster to speed up workflows and prevent people from having to wait. Or convert your existing door to an automatic door with a swing door operator for pedestrian and commercial doors.
Furthermore, if the door leads to the outside, add brush weather seal to create a complete seal to stop drafts, pests and white light from entering the building.
Automatic Motion Sensor
+
+
Touchless Wave Sensors for Automatic Doors
Prevent cross-contamination by never having to touch a door to open it. Install or retrofit dock, industrial and pedestrian doors with touchless wave sensors. View »
Photos
Videos

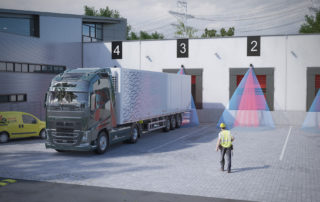

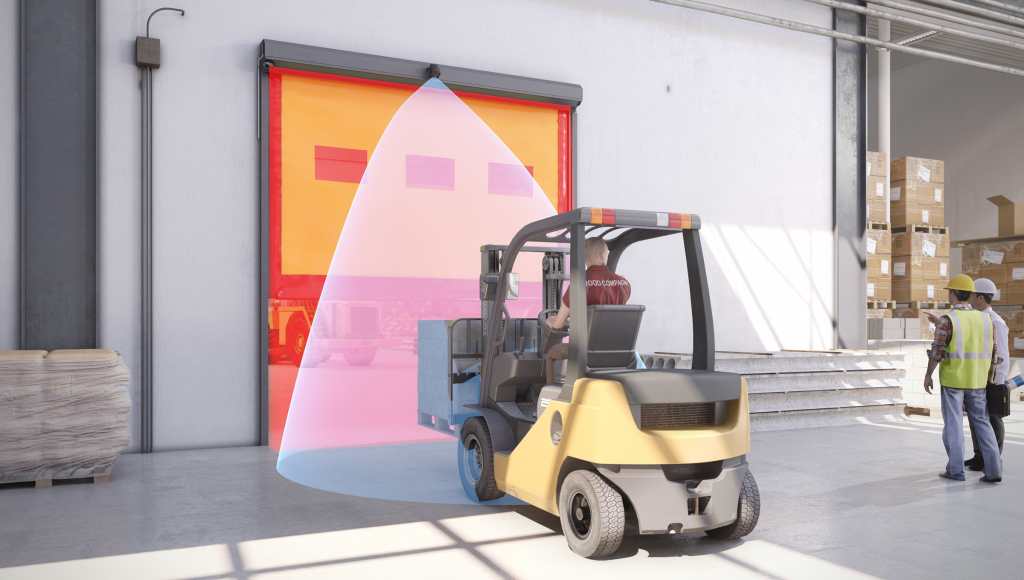

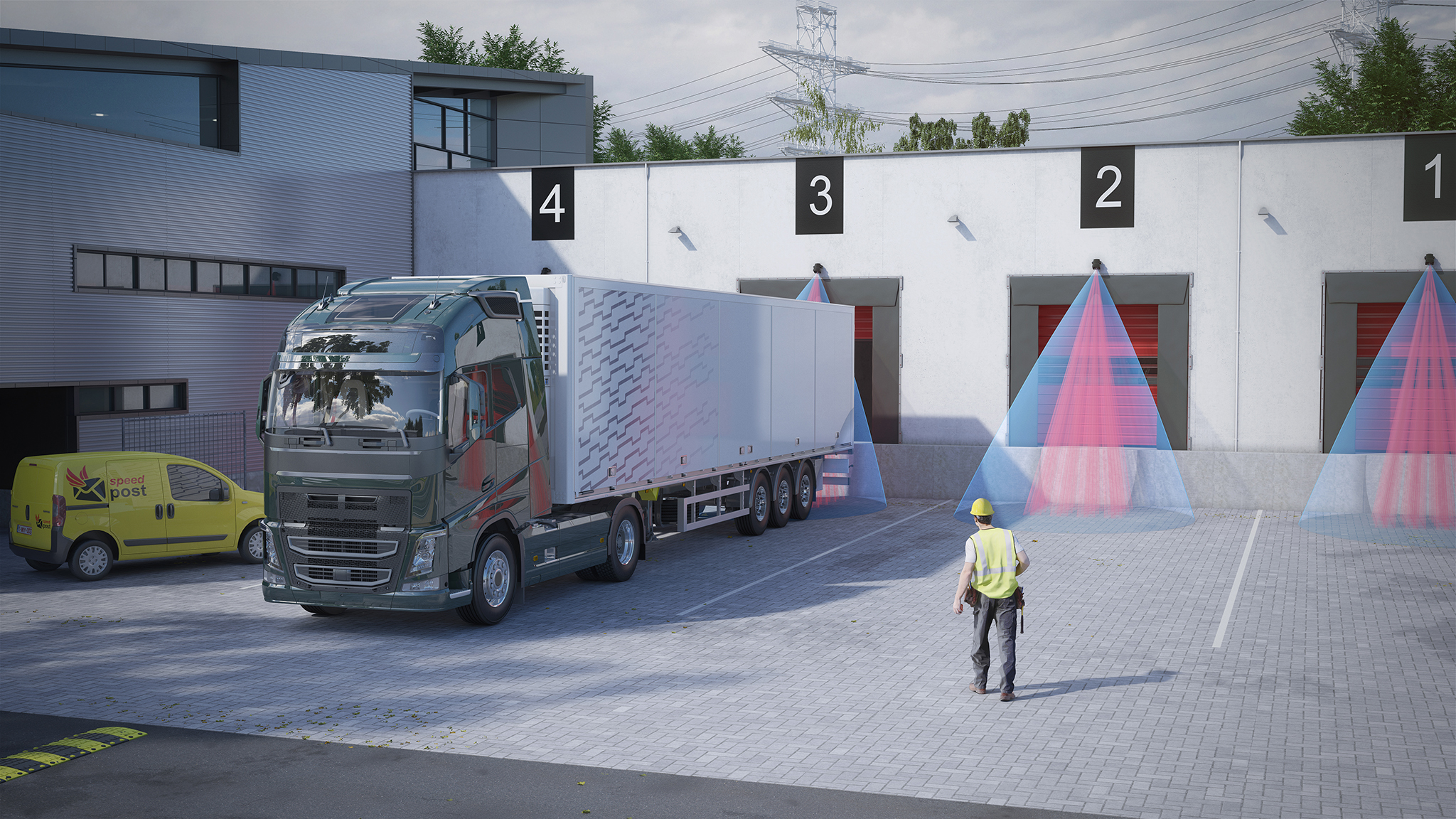

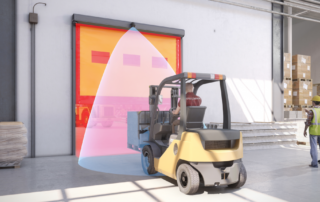

Automatic Motion Sensors for Industrial Dock DoorsMake your dock door an automatic door with a motion sensor that only detects approaching forklift traffic. |
Falcon Motion Sensors for DoorsFalcon family of sensors is the premier microwave activation solution for indoor and outdoor industrial applications. The family includes the Falcon, Falcon XL (extra low mount) and Falcon Wide (for wide detection areas). BEA’s Falcon family is ideal for automatic industrial doors, vehicle gates/barriers, vehicle detection, loading docks or any other industrial application where motion detection is required. |
LZR-Widescan Motion SensorsLZR-Widescan is a LASER-based, time-of-flight sensor used for motion, safety and presence detection in a variety of industrial door applications. This all-in-one solution offers the benefits of activation and safety, while reducing installation time. |
LZR-Widescan AppEasily configure sensor settings with the LZR-WIDESCAN mobile app. The mobile app provides a complete view of sensor settings, from field configurations to immunity. |
Models
|

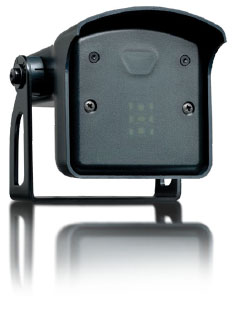

Falcon Automatic Motion Sensor for DoorsThey can be set to open the door when it detects a person, vehicle or a forklift coming towards it. These sensors ensure reliable activation and their unidirectional settings increase energy efficiency and pest control by limiting activation to approaching traffic only.Models: 10FALCON, 10FALCONXL & 10FALCONW |
|

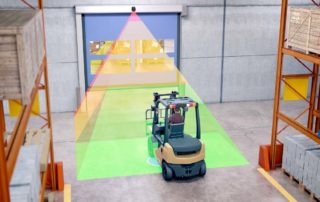

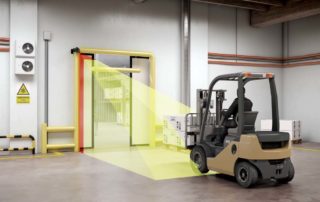

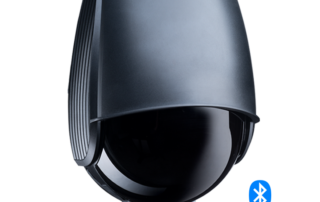

LZR-Widescan Automatic Motion Sensor for DoorsThis Time-of-Flight sensor creates a volumetric detection area by generating seven angled LASER curtains. It has the ability to detect objects based on direction, speed, object size and height. The LZR-WIDESCAN detection field operates independent of ground conditions, allowing for superior functionality in harsh environments.Easily configure sensor settings with the LZR-WIDESCAN mobile app. The mobile app provides a complete view of sensor settings, from field configurations to immunity. |
Model Comparison Chart
| Falcon | Falcon XL | Falcon Wide | LZR-Widescan | |
| Best Use | Standard mounting heights | Low mounting heights | 30’ × 11’ @ 21’ Wide detection fields |
Wide detection laser |
| Technology | Microwave Doppler Radar | LASER scanner, Time-of-Flight measurement (7 LASER curtains) | ||
| Detection Mode | Motion | Motion, presence, height, and speed | ||
| Detection Zone | 13’ × 16’ @ 16’ | 13’ × 6 1/2’ @ 8 1⁄5’ | 30’ × 11’ @ 21’ Typical at 30° and field size 9 |
1.2 x mounting height (adjustable depending on user settings) |
| Mounting Height | 11 1/2 – 23’ | 6 1/2 – 11 1/2’ | 11 1/2 – 21’ | 6’6” – 32’ |
| Tilt Angles | 0 – 180° | -10 – 5° | ||
| Controller | Remote controller | Mobile app | ||
| Supply Voltage | 12 – 24 VAC; ±10% 12 – 24 VDC; 30% / -10% |
30 VDC (max. switching voltage), low < 1 V, high > 10 V (voltage threshold) | ||
| Power Consumption | < 2 W | Heating: Off < 2.5 W Heating: Eco or Auto < 10 W, max 15 W |
||
| Dimensions | 3 3/4“ (W) × 4“ (H) × 5“ (L) | 6” (W) x 7 3/4” (H) × × 4” (L) | ||
| Materials | ABS & Polycarbonate | PC / ASA / Black | ||
| Temperature Range | -30 – 60 ºC | |||
| Degree of Protection | IP65 | |||
Customizations

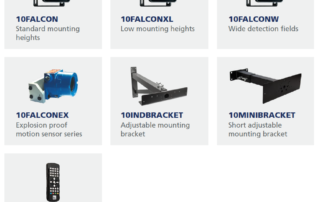

Falcon Motion Sensors for Automatic Doors
Options- 10FALCON: Standard mounting height
- 10FALCONXL: low mounting heights
- 10FALCONW: Wide detection fields
- 10FALCONX: Explosion proof motion sensor series
- 10INDBRACKET: Adjustable mounting bracket
- 10MINIBRACKET: Short adjustable mounting bracket
- 10REMOTE: BEA universal remote control
LZR-Widescan Laser Motion Sensors for Automatic Doors
Options- Faceplates
Warranty
- 36 months limited.
