Cleans the Air You Breathe
Removes Viruses* & Bacteria*
Saves Energy & Lowers Heating Bills
Cycles the Air to Keep You Warmer & Cooler
MERV 13 Industrial Air Filtration System
AtomikAir is our industrial, air quality powerhouse, built for the toughest, high-volume environments. Pushing one million cu ft of air per hour, the AtomikAir uses washable filters to capture suspended particles, allergens and pollutants as small as 0.3μm!
✓ Cleans the air so your lungs don’t have to: This MERV 13 air filtration system removes sand, soot, insect debris, pollen, mould, metallurgical fumes, oil smoke and viruses from the air. It cleans the air to make it easier for you to breathe.
✓ Keeps workers healthy and safe: The MERV 13 filters remove allergens, mould, bacteria* and viruses* that could make people sick.
✓ Enhance comfort for your workers and customers: Destratification equalizes the temperature from floor to ceiling to prevent hot and cold air pockets to keep your workers warm and happy.
✓ Lower your energy bills: This air filtration systems can save you up to 20-40% on your heating costs.
✓ Portable: Optional lockable wheels make it easy to move around the facility. It’s only 4 feet x 4 feet x 6 feet (height), small enough to fit on a skid and to take it with you when you move.
✓ Easy to install: No mounting bolts, hooks, invasive installation or retrofitting required, just simply wheel it into position and plug it in.
✓ Low maintenance: Optional washable reusable filter can be cleaned with compressed air or washed and typically lasts 5+ years.
*Independent third-party studies available.
Information
Perfect for:
• Warehouses
• Loading docks
• Auto garages
• Industrial spaces
Poor Air Quality – A Growing Safety Concern
According to the Canadian Centre for Occupational Health and Safety (CCOHS), poor indoor air quality (IAQ) has become an important health and safety concern. Some of the common causes for poor indoor air quality (IAQ) in open industrial, commercial or warehouse environments are:
- Dust covering surfaces and floating in the air.
- Odours from truck exhaust and the manufacturing process.
- Indoor air contaminants from chemicals, moulds or fungi, bacteria, gases and vapours.
- Inadequate temperature or humidity control.
- Poor air circulation or ventilation system issues.
If you have a poor IAQ in your facility, your workers could experience:
- Dryness and irritation of the eyes, nose, throat, and skin
- Coughing
- Sneezing
- Shortness of breath
- Sinus congestion
- Hypersensitivity and allergies
- Fatigue
- Nausea
- Headache
- Dizziness
These symptoms usually appear after several hours at work, which affects their productivity and overall health.
Cleans the Air You Breathe – MERV 13 Air Filter
The AtomikAir improves air quality and prevents these symptoms from happening by removing sand, soot, insect debris, pollen, mould, metallurgical fumes, oil smoke and viruses* from the air. It does this by filtering the air down to the 0.3 micron with its MERV 13 air filtration system.
Standard air filters are typically only rated MERV 8, meaning that they only remove about 70-85% of the dust, mold, dust mite debris and pollen from the air. The AtomikAir’s MERV 13 filters are able to remove 85% or more of those particles along with smoke, smog, particulates from coughs and sneezes along with bacteria* and viruses* to keep your workers safe and healthy.
*Independent third-party studies available.

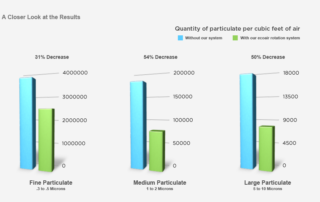

Cleans the Air in Large Areas in Under an Hour

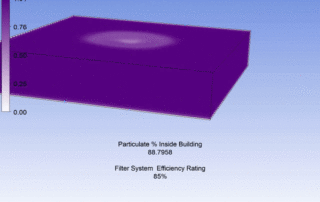

The air enters the filter at 350 FPM (Feet Per Minute) that’s much slower than any alternative system. The slower the air moves through the filters – the more particles they capture! Watch as the AtomikAir cleans this facility of particulates in under an hour!
Cleans the Air from Ground Level – Where People are
A single AtomikAir unit can complete two air changes an hour for spaces up to 20,000 square feet. It will remove particulates such as dust, mold, pollen, smoke, coughs, sneezes, bacteria* and viruses*. More importantly, it cleans from the ground level up to protect your most important asset, your employees.
Furthermore, these air changes create an air current that is similar to being outside. Bio-aerosols created by employees when they sneeze or talk; will be moved away from them to get filtered rather than suspending amongst them.

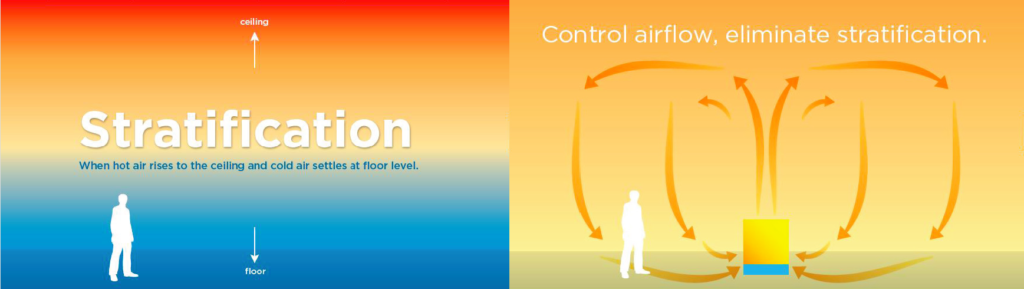

Improves Worker Comfort – Destratification Fan

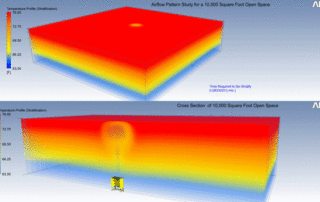

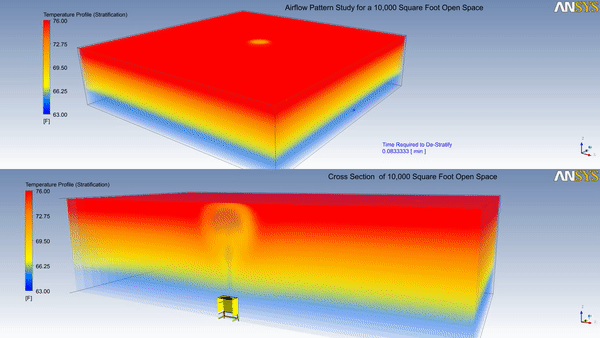

This air filtration system also eliminates stratification, which is when hot air rises to the ceiling and cold air settles at ground level. It does this by pulling the dirty air from the ground and pushing clean air up to keep the temperatures even from floor to ceiling.
The AtomikAir eliminates stratification in under 7 minutes
Saves Energy and Lowers Your Heating Bills
This air purifier lowers heating bills by 20% to 40%. It does this by dramatically reducing “heat” recovery to only a few seconds when overhead doors are opened, and cold air enters the shipping and receiving area. It also decreases your heating bills by preventing stratification, making easier on your HVAC system to heat and cool your facility.
Portable and Easy Installation
No invasive installation, retrofitting, mounting bolts or hooks required. This air filtration system comes standard with locking wheels or it can be mounted to the floor, if you desire. Locking wheels make it easy to move for any facility re-configurations. Just simply wheel it into place and plug it in.
Keep your employees happy, comfortable and their lungs clean with the AtomikAir

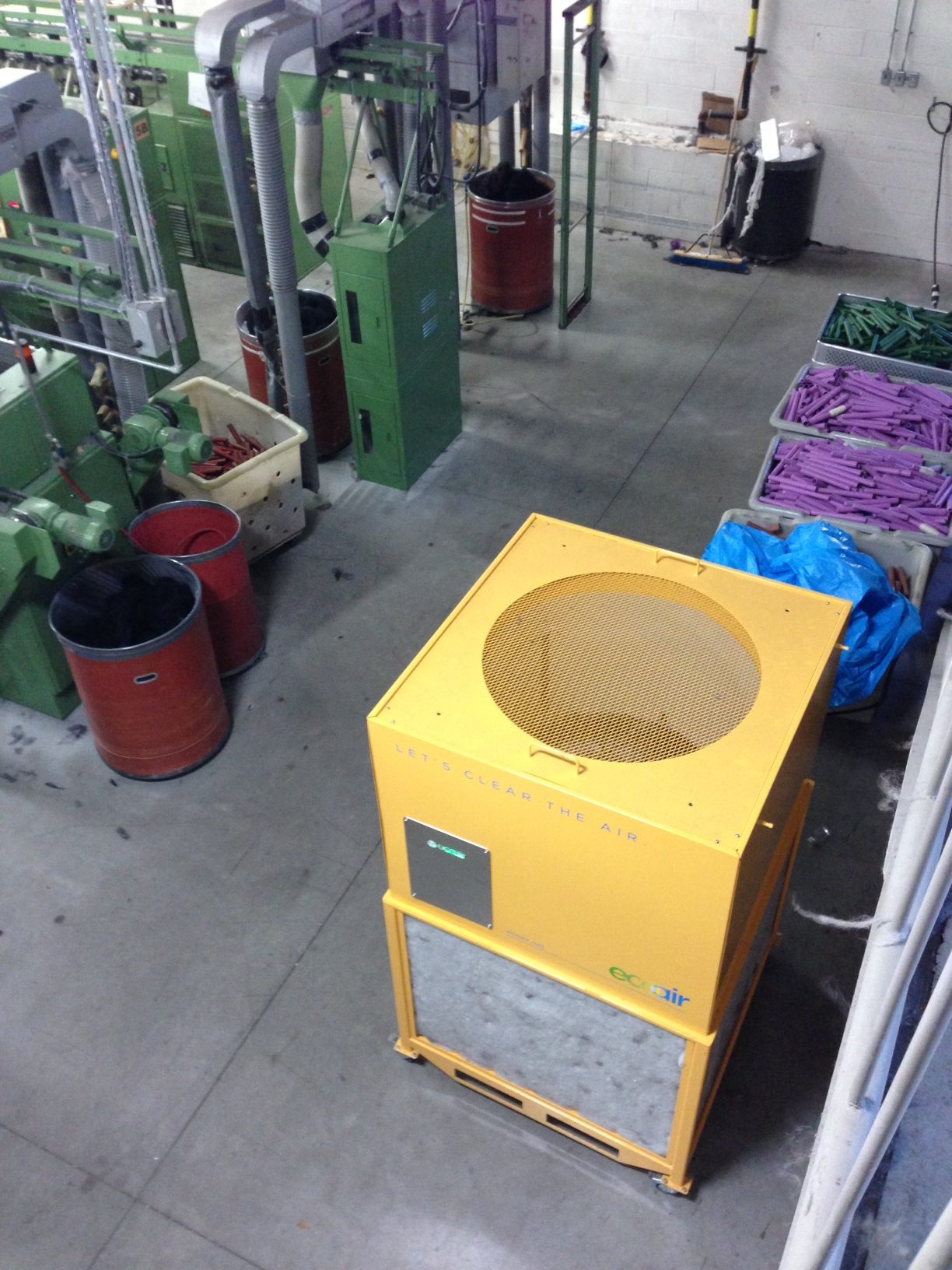

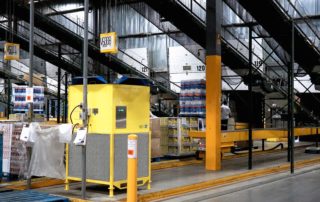

Photos
Customers That Love These Products
“We purchased the Filtration system – at a MERV 13 standard, and it does catch a lot of air debris when the team cleans out the filter each week or so. It offers air diffusion for the ceiling space and should assist in reducing the delta in temperature near the ceiling vs the ground air as you walk around the plant. It’s proving to be a concrete step towards helping our employees during COVID-19 with a solution that can catch and possibly remove some airborne elements, including pollen, bugs, dander etc. that may be floating in the air.”
Brad Glasser, Atlantic Coated Papers
Customizations
- Locking wheels or permanent location feet to mount.
- 575V, 240V or 480V voltages.
- Aluminum frame MERV 13 washable reusable filter can be cleaned with compressed air or washed and typically lasts 5+ years.
- Summer hood creates a cooling cross breeze during the summer months.
Warranty
- 1 year limited.
Specifications
| Dimensions | (W) 50.25" x (L) 49.25" x (H) 79.26" |
| Airflow (CFM) through Filters | 1,000,000 Cubic Feet Per Hour / 15,500 Cubic Feet Per Minute |
| Coverage for Destratification and Lowering Heating Bills by 20% to 40% | One unit every 40,000 sq ft or one unit every 10 loading dock doors |
| Coverage for Improving Air Quality and Cleaning the Air | One unit every 20,000 sq ft or one every 10,000 sq ft if there is very significant |
| Filtration | Washable MERV13 / Other filter options available |
| Sound Level | ~67-72 dB(A) (Measured at 5 Feet) |
| Power | 480V 3 Phase, 60Hz, 3.8A 575V 3 Phase, 60Hz, 2.8A |
| Power Connection | Male Twist Lock Plug End |
| Weight | 450 pounds |
| Portability | Lockable casters are standard with all systems |
