Big Ass Fans – Hornet
Aisle Racking Destratification Fan
Jump to: Information | Photos | Customers | Specifications | Customizations | Warranty
Small but Powerful Destratification Fan
At only 30 inches, it can fit between bar joists, cranes, large machinery and narrow aisles. Save on energy and protect products on the top racks by pushing warm air down while improving worker comfort.
Improve Air Circulation
Provide a Cooling Effect
Reduce Heating Costs
Reduce Health Risks
Manage Condensation
Information
Push Hot Air Down with Destratification Fans
Hot air naturally rises, which can hot pockets of air in your ceiling and upper racking. Destratification fans push hot air down to create a consistent temperature from floor to ceiling to:
- Decrease spoilage rates for food and temperature-sensitive products.
- Increase storage stability for products.
- Lower energy costs.
- Improves working conditions by creating a comfortable temperature to work in.
- Prevents condensation build-up.

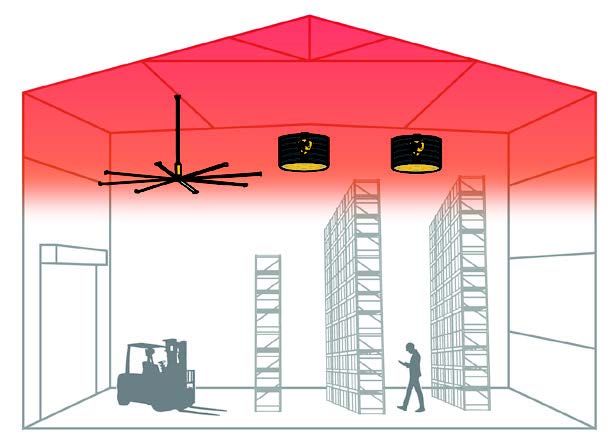

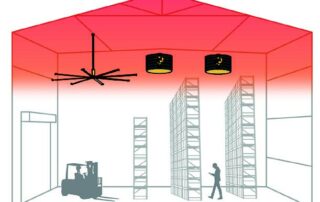

Before Destratification
Hornet and HVLS fans are off

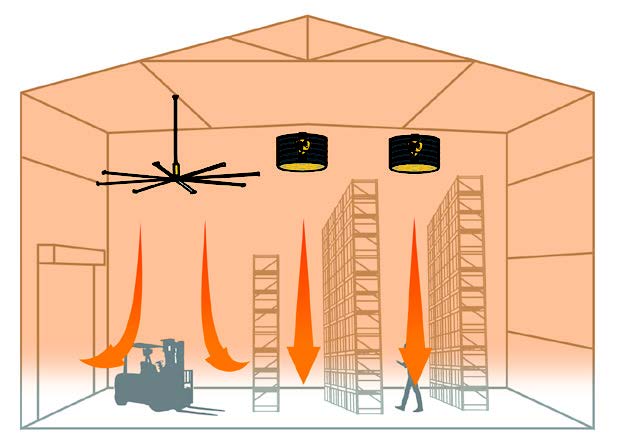

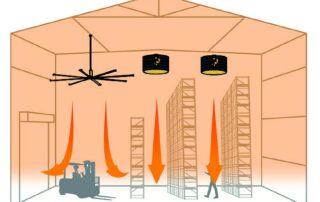

After Destratification
Hornet and HVLS fans are on
Small Enough to Fit in Aisles

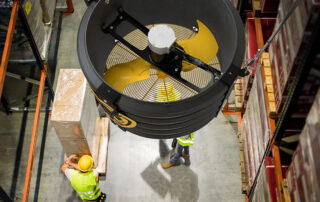

At only 30 inches, the Hornet fan is perfect for congested areas with obstructions such as tall racking, aisles, large machinery and cranes. This destratification fan is perfect for spaces that require strict climate control, such as food, pharmaceutical, chemical and cosmetic storage facilities where an HVLS cannot fit.

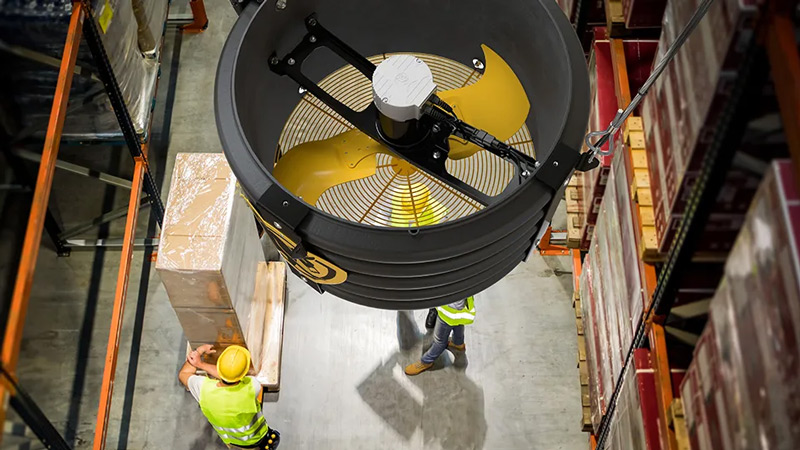

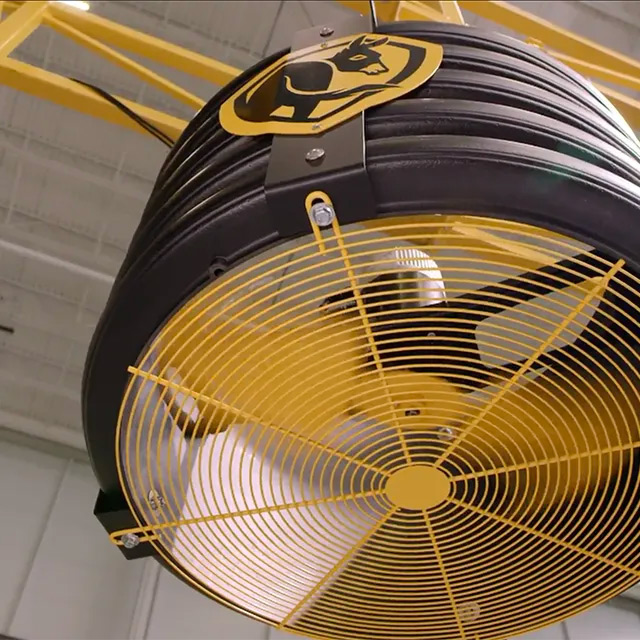

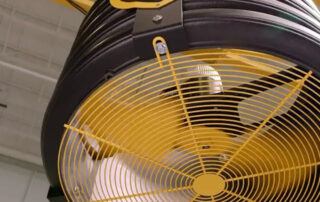

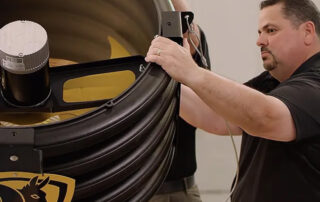

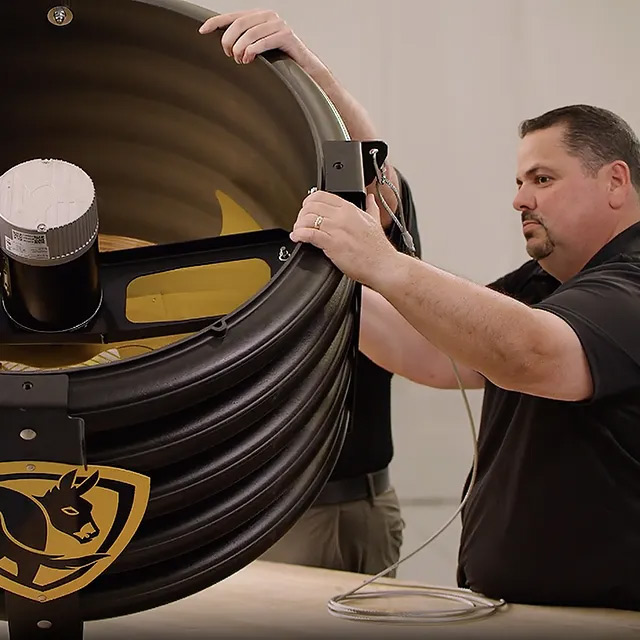

Durable for Industrial Environments

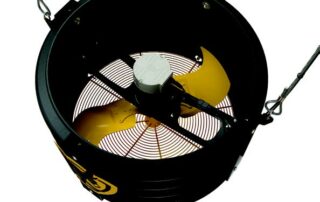

The heavy-gauge steel frame and hub
Vibration damping high-density polyethylene housing.

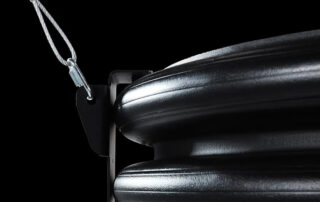

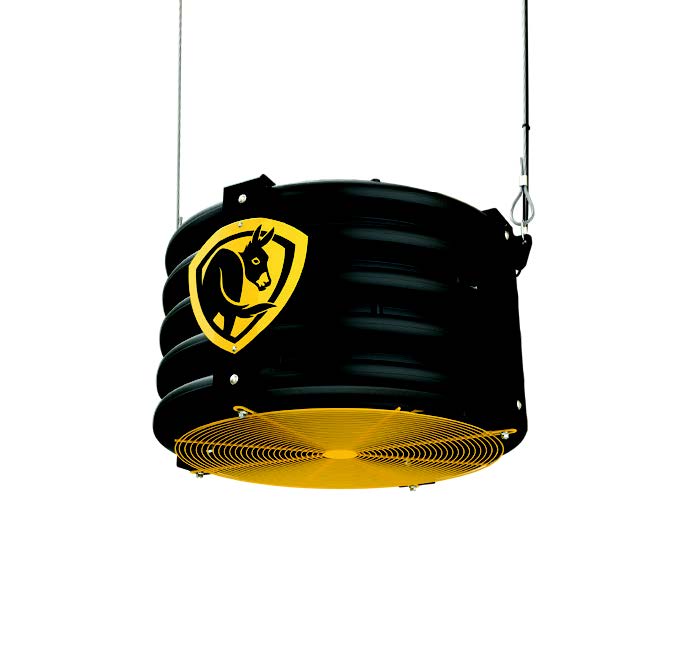

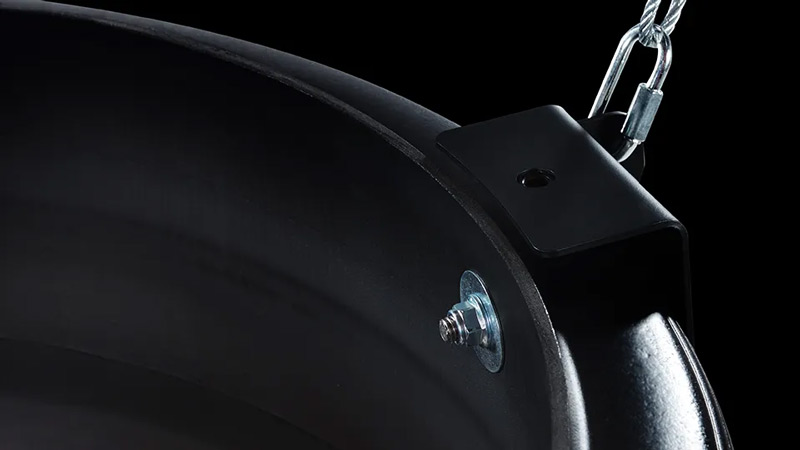

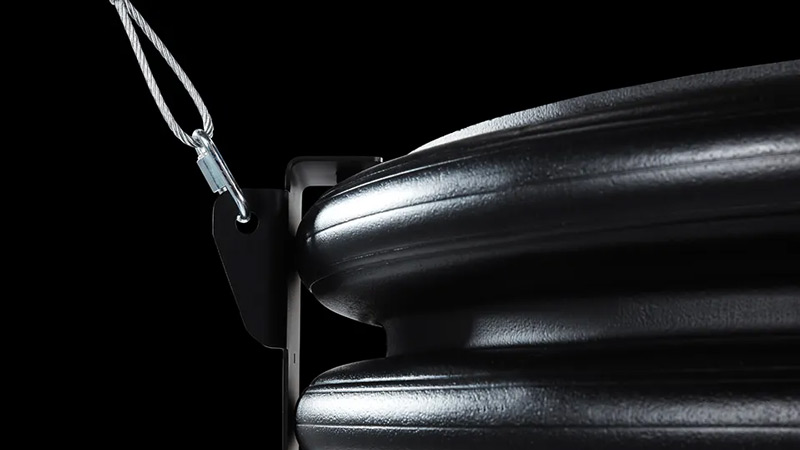

Heavy-gauge steel frame and steel suspension cable system provide industrial-strength durability and safely secure to a variety of mounting structures.

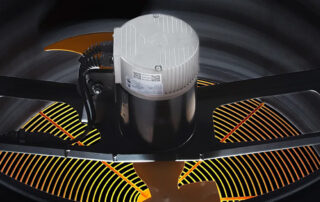

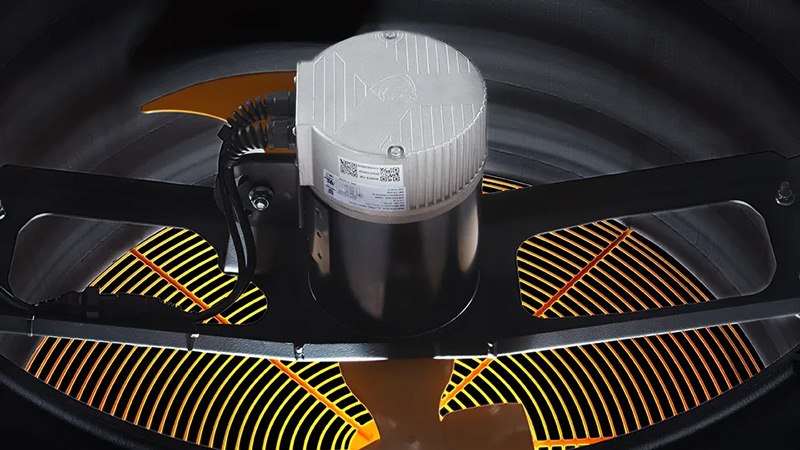

In addition, it has an IP55-rated motor, the only one in the market for small destratification fans.

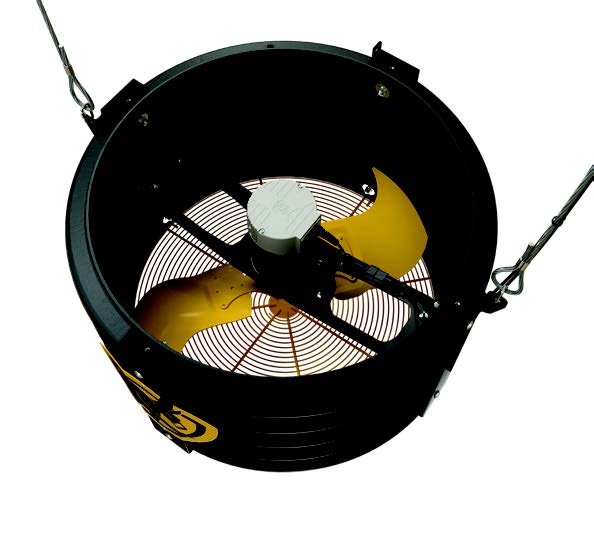

Steel Frame and High Density Polyethlene Housing

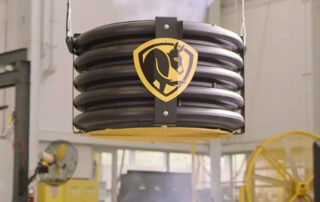

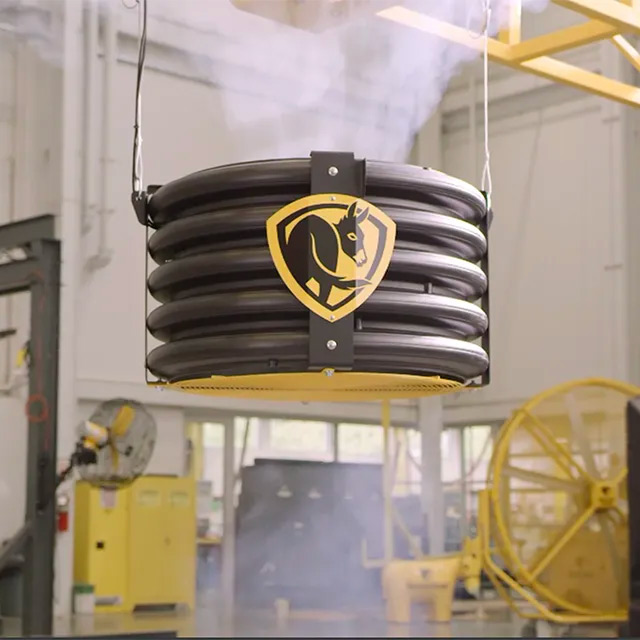

3.5x More Airflow
When compared at competition at the same power consumption (~100W), the Hornet provides 3.5x the airflow. The Hornet can provide ~3,500 CFM, compared 1,000 CFM from competitors. Additionally is produces less noise at 55 dBA compared to 59 dBA.
BAFCon – Multiple Fan Controller and BAS Integration
Upgrade your controller to control multiple fans which can be automated to change based on the season. Integrated SmartSense technology in the BAFCon automatically adjusts fan speed based on seasonal conditions for maximum energy savings and year-round comfort. In addition, it features:
- 24-bit colour LCD with resistive touchscreen protected in sleek metal and ABS housing.
- Controls up to 24 fans.
- Control fans as a group or individually.
- Temperature sensor.
- Set schedules to automate.
- Password protection to lock down controls to only those who are supposed to have access.
- Powered by fan drive.
- Easy updates by Bluetooth.
The World’s Largest Manufacturer of Fans
We’re a Big Ass Fans Authorized Distributor, which is the world’s largest manufacturer of fans and biggest name in fans for over 20 years. They have shipped over 1 million fans to be installed in 175 countries across the world.
All of their fans are tested in the world’s only LEED certified R&D research lab dedicated to testing destratification fans. As a result, they can test their fans at 48 feet from the ground rather than 24 feet at other facilities. Therefore, they know exactly how their fan will perform when out in the real world.

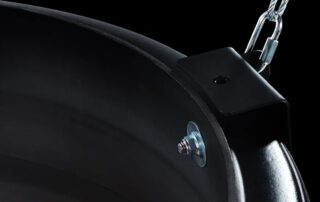

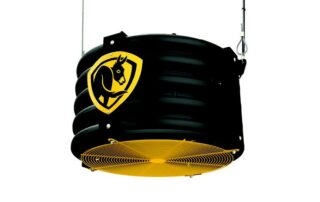

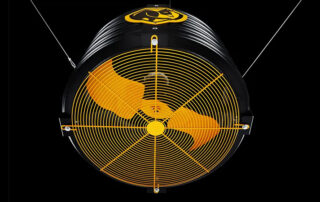

Photos
Specifications
| Housing | 1/8 inch steel spiral bottom guard Heavy-gauge steel frame and hub Vibration damping high-density polyethylene housing |
| Mounting | Suspends from two #4 galvanized steel cables |
| IP Rating | IP55 |
| Weight | 78 lbs |
| Max. Airflow (Fans at 100%) |
5,749 CFM |
| Min. Airflow (Fans at 20%) |
1,598 CFM |
| Max. Sound Level (Fans at 100%) |
71 dBA |
| Min. Sound Level (Fans at 20%) |
38 dBA |

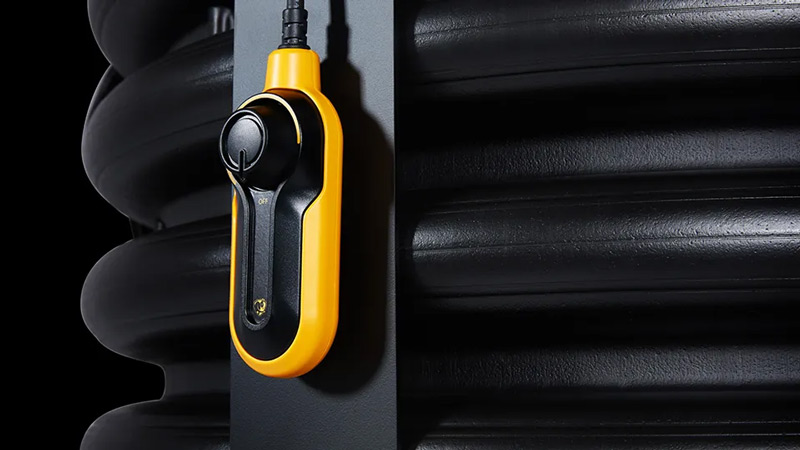

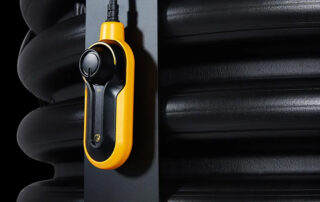

| Controls | On/Off Switch Control Multi-Fan On/Off and Speed Control (requires BAFCon upgrade) BAS Integration (requires BAFCon upgrade) |
| IP Rating | IP55 |
Customizations
- BAFCon controller upgrade for multi-fan control and BAS Integration
- Stability Kit
- Top Guard Kit
- Automation and Multi-Fan Kit with BAFCon
