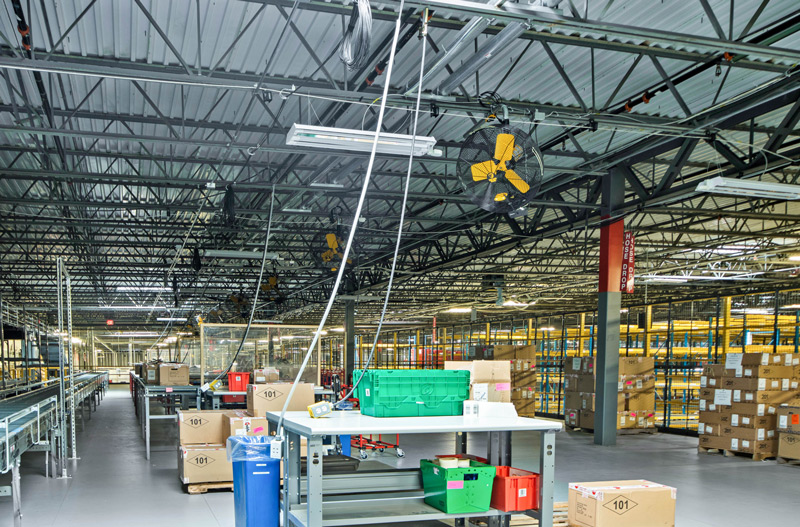

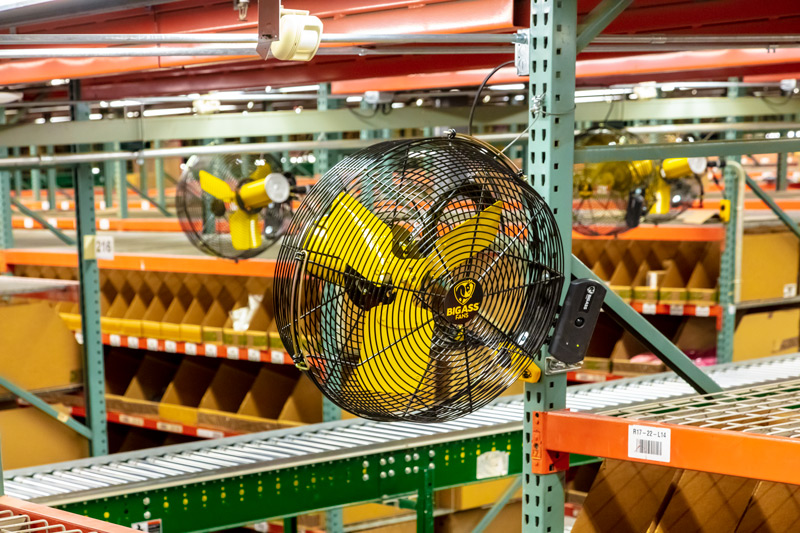

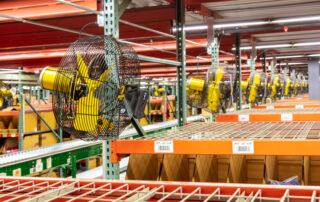

BAF Big Ass Fans directional fan AirEye with occupancy sensor racking mount in warehouse

Big Ass Fans
Mounted Directional Fans

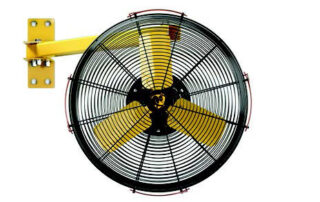

AirEye Small Directional Fan

A directional fan available in 20, 24, 30 and 36 inch diameters. In addition, mounting options include pedestal/lowrider, wall/column, swivel arm, overhead beams and bar joists.

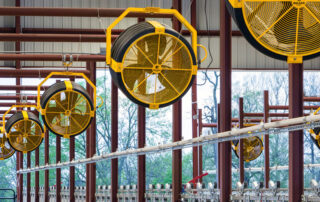

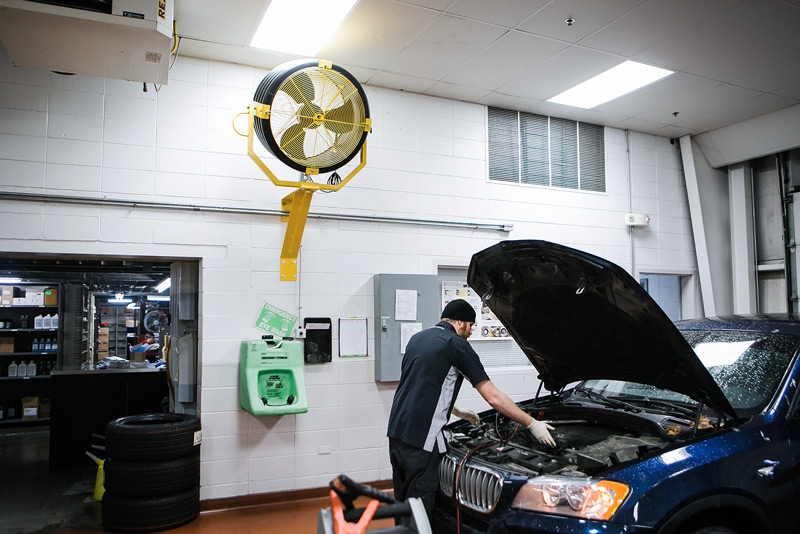

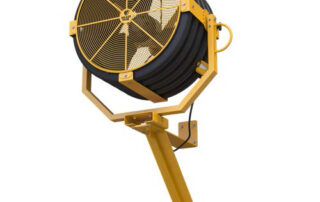

Yellow Jacket Industrial Directional Fan

A tough industrial fan that can take a beating. This 30-inch fan is available in portable pedestal, wall/column, swivel arm, overhead beams and bar joists.

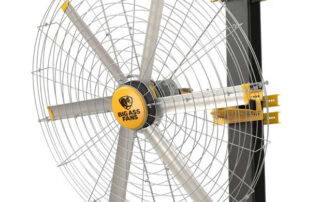

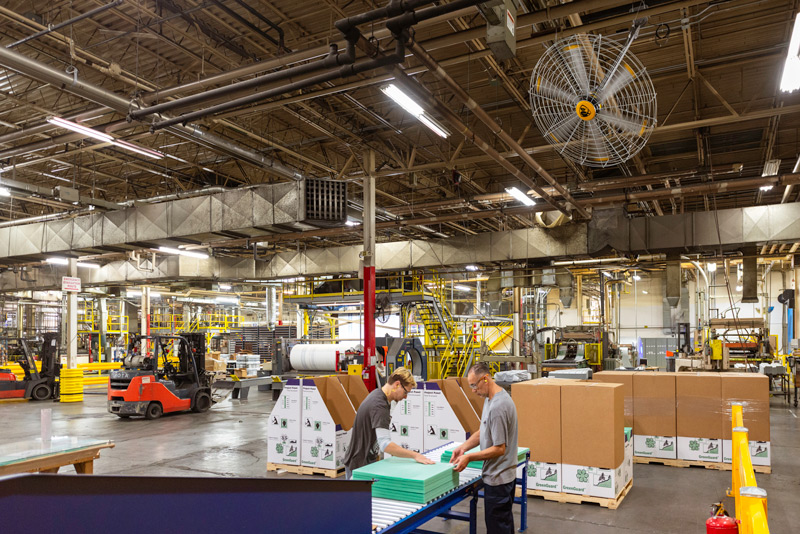

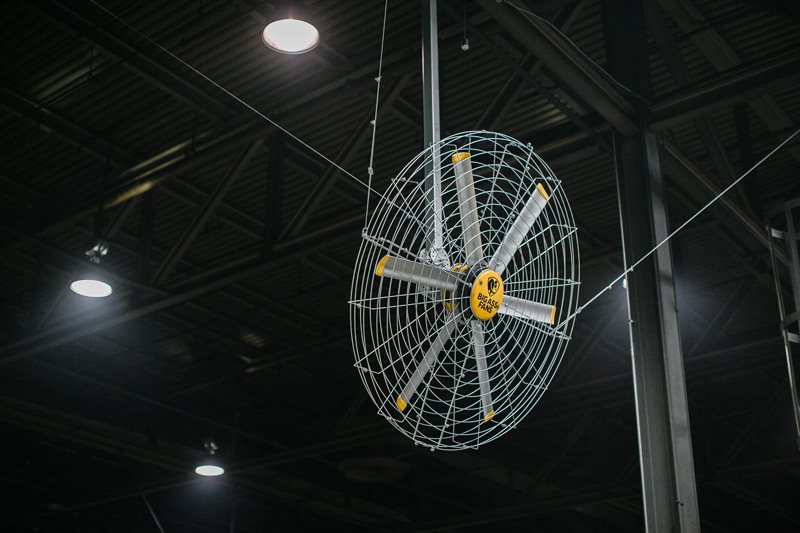

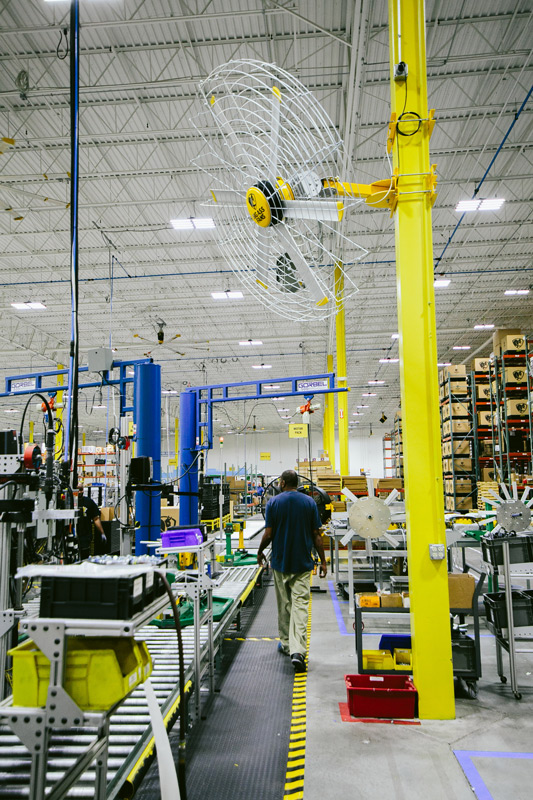

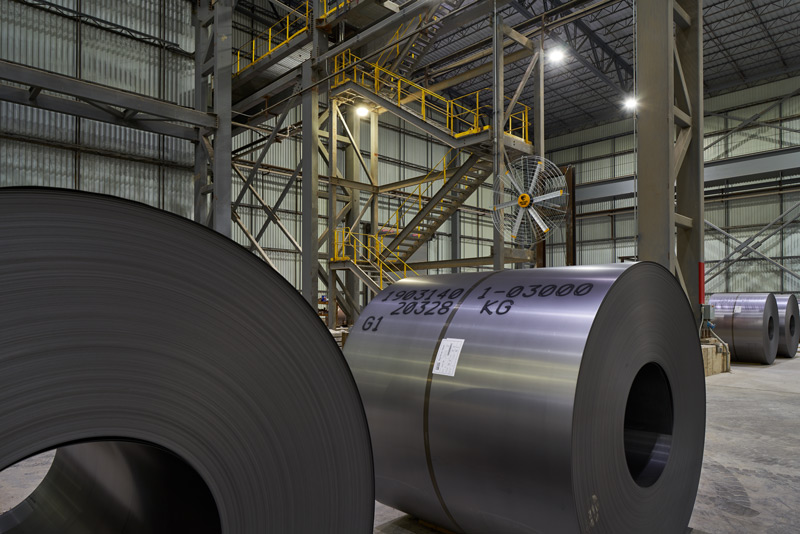

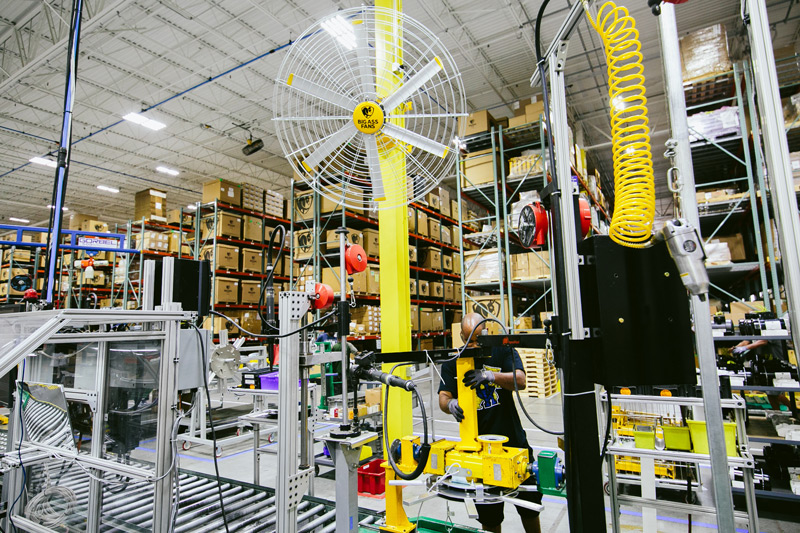

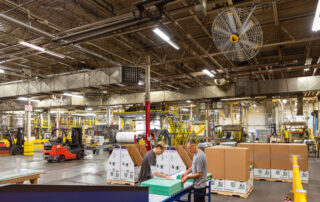

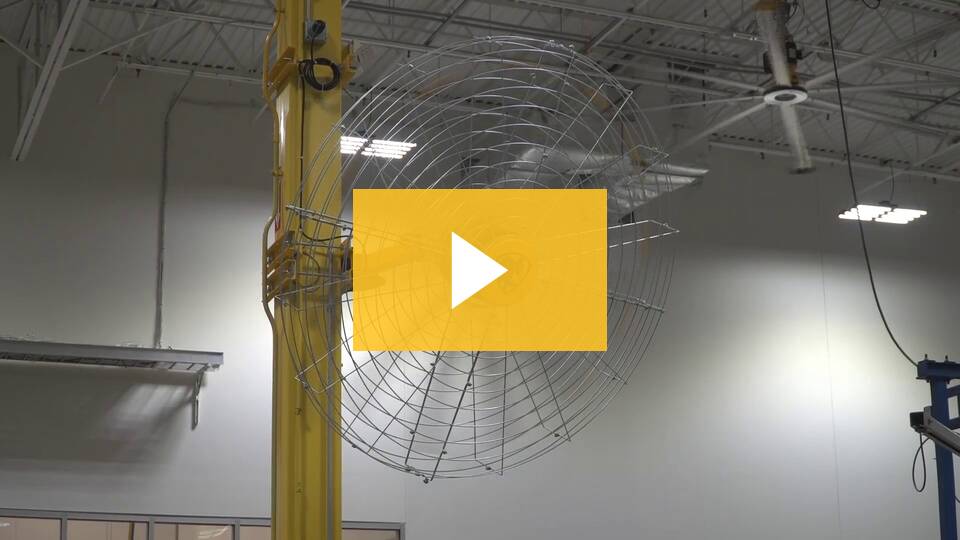

Pivot Large Directional Fan

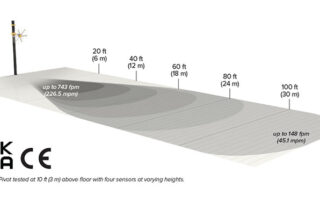

At 6.35 feet, this large directional fan provides coverage up to 120 feet away. The Pivot is available in overhead bar joists, I-beams and vertical column mouting options.

Improve Air Circulation

Provide a Cooling Effect

Reduce Health Risks

Information

Directional Fans in a Variety of Sizes

Improve air circulation and provide a cooling effect for your workers with directional fans from Big Ass Fans. We carry a variety of different-sized fans so we can find the perfect solution for your specific needs and space.

AirEye

20, 24, 30 and 36 inch

Yellow Jacket

30 inch

Pivot

6.35 feet

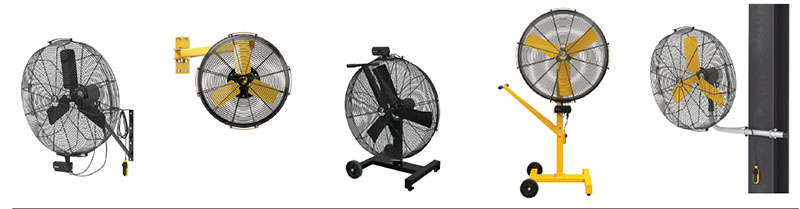

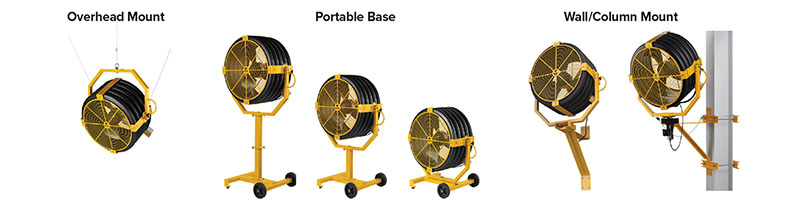

A Mounting Option to Suit Your Needs

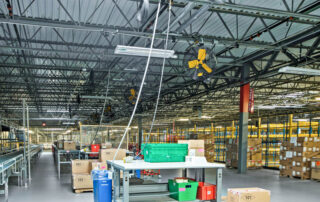

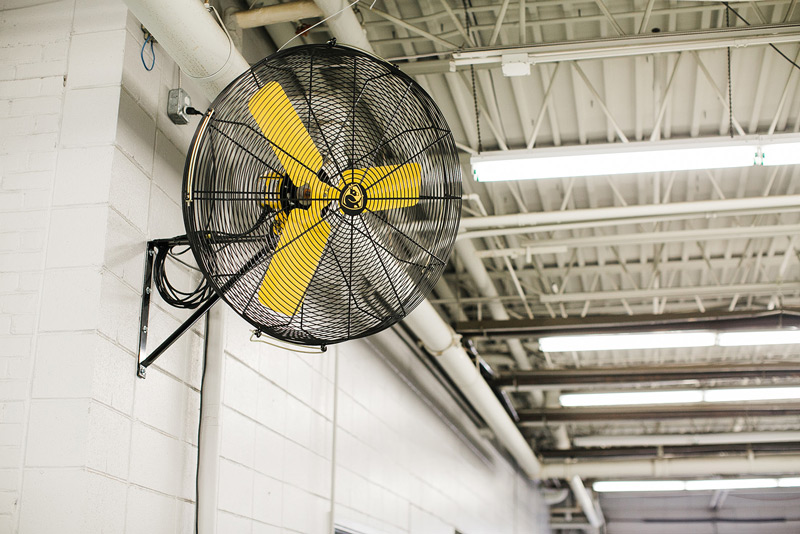

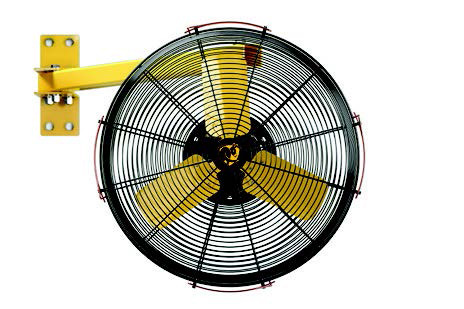

These directional fans come with various mounting options to suit your specific needs. The AirEye and Yellow Jack fans are available in wall/column, overhead beam, bar joists, swivel arm, portable pedestal or low rider mounting options. However, due to the size of the Pivot fan, it is only available in overhead bar joists, I-beams and vertical column mounting options.

Wall, Column, Overhead Beam, Portable Pedestal, Low Rider, Bar Joists
and Swivel Arm Mounting

Mounting options change depending on fan

Big Ass Directional Fans Out-Perform the Competition

Smooth and quiet operation with high-performance motors. In addition, the Yellow Jacket fan has a high-density polyethylene housing to reduce vibrations and noise.

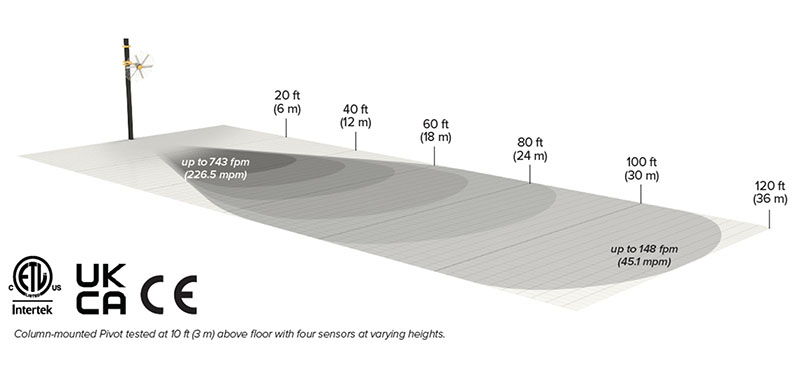

Powerful airflow so the fan’s cooling breeze can be felt from 120 feet away.
Variable speed controls for easy operation and custom controls.
Occupancy sensor with passive infrared sensor for the AirEye and Yellow Jacket fans so they can turn on and off depending on if there is someone nearby.
Easy repositioned with adjustable swing arms, pivoting joints or portable pedestals.

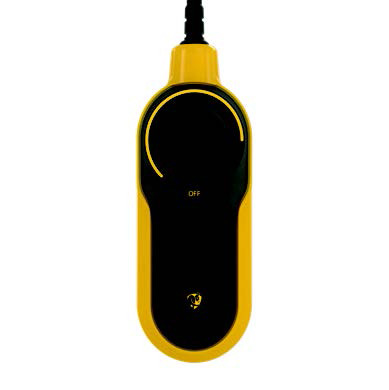

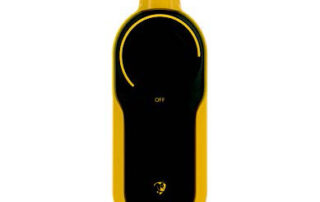

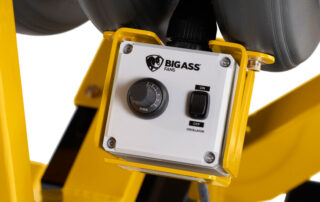

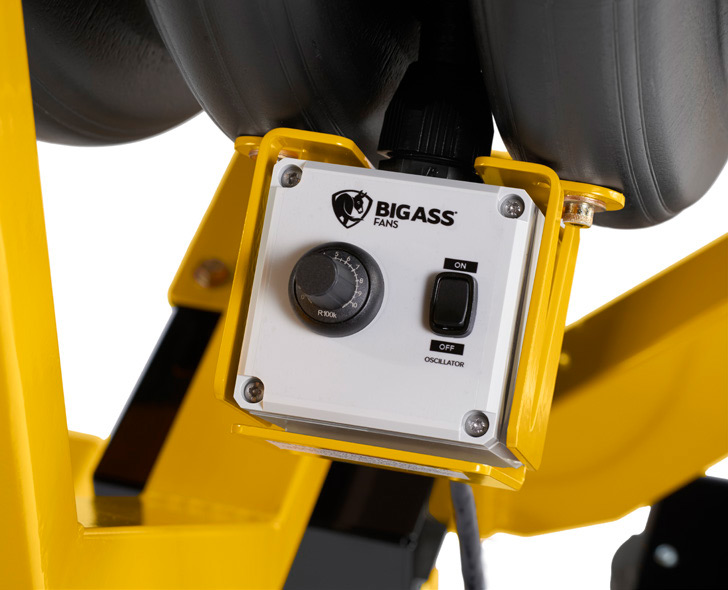

Variable Fan Controller

For the Yellow Jacket fan

BAFCon – Multiple Fan Controller and BAS Integration

Upgrade your controller to control multiple fans which can be automated to change based on the season. Integrated SmartSense technology in the BAFCon automatically adjusts fan speed based on seasonal conditions for maximum energy savings and year-round comfort. In addition, it features:

24-bit colour LCD with resistive touchscreen protected in sleek metal and ABS housing.
Controls up to 24 fans.
Control fans as a group or individually.
Temperature sensor.
Set schedules to automate.
Password protection to lock down controls to only those who are supposed to have access.
Powered by fan drive.
Easy updates by Bluetooth.

The World’s Largest Manufacturer of Fans

We’re a Big Ass Fans Authorized Distributor, which is the world’s largest manufacturer of fans and biggest name in fans for over 20 years. They have shipped over 1 million fans to be installed in 175 countries across the world.

All of their fans are tested in the world’s only LEED certified R&D research lab dedicated to testing destratification fans. As a result, they can test their fans at 48 feet from the ground rather than 24 feet at other facilities. Therefore, they know exactly how their fan will perform when out in the real world.

0 fans

0 countries

Photos

Videos

AirEye Can Handle Dusty Conditions The IP55 rate motor can handle dusty and dirty environments.	AirEye vs. Dunk Tank Sealed against water, the IP55 on the AirEye directional fan can handle any space.

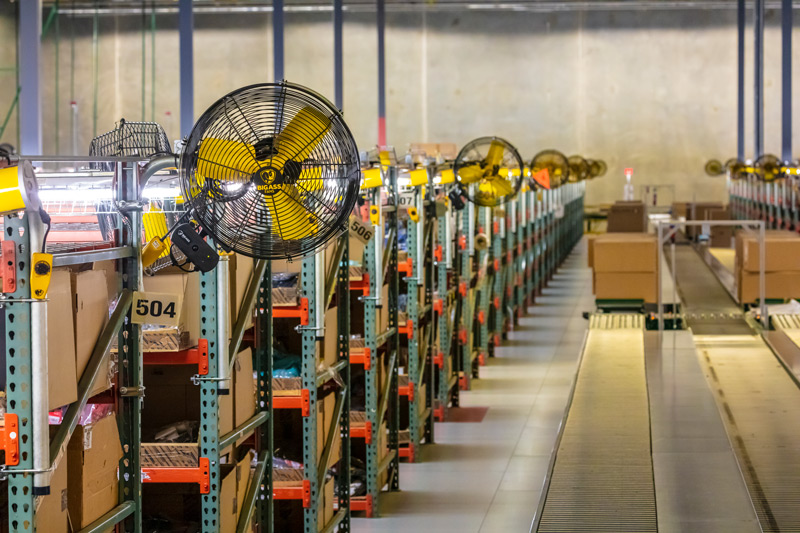

AirEye Succcess Story A big online retailer installed 200 AirEye fans to their facility, after which 95% of workers said they were more comfortable with no impact on workplace noise levels.	Even Apes Love Big Ass Fans This orangutan sanctuary used the Big Ass Yellow Jack directional fans to keep their apes cool even in the hot climate.

Customers That Love This Product

Read Customer Success Stories

Models

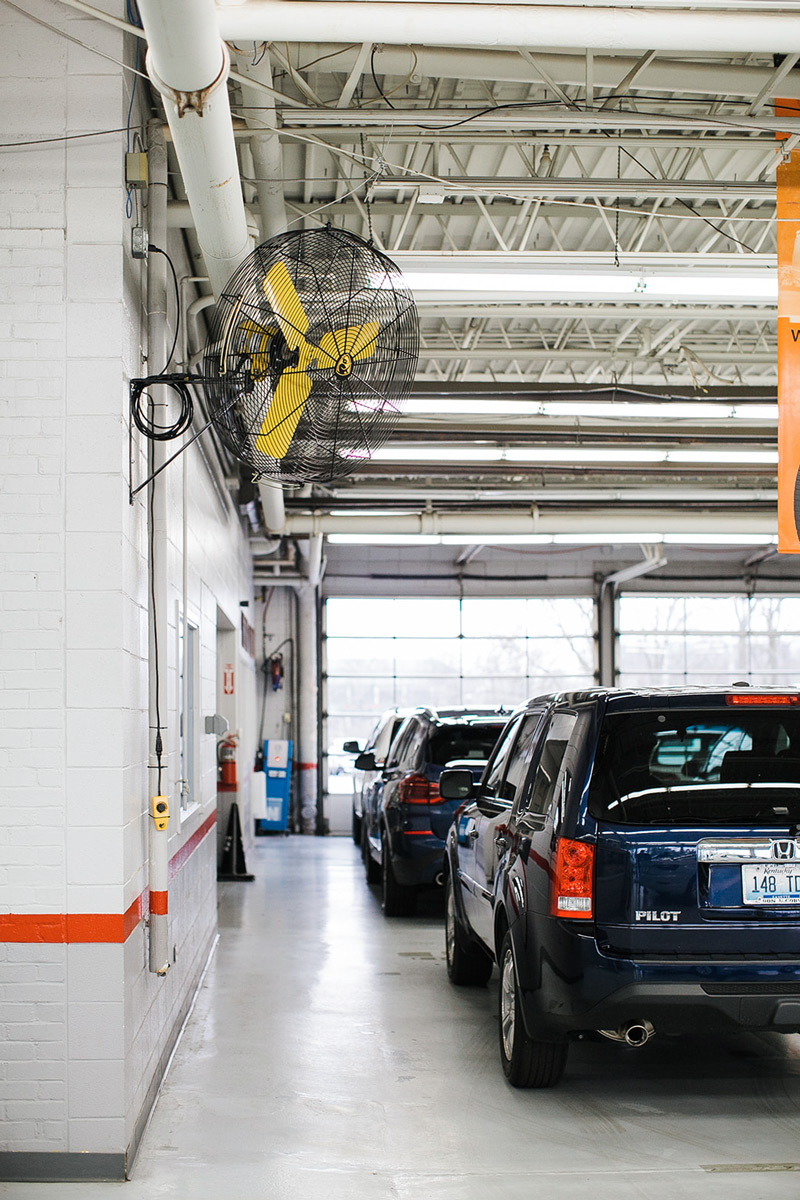

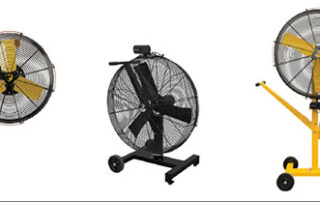

	AirEye - Small Mounted Directional Fan Available in 20", 24", 30" or 36" fans sizes with wall, c-channel, I-beam, swivel mount, portable pedestal or low rider mounting options.

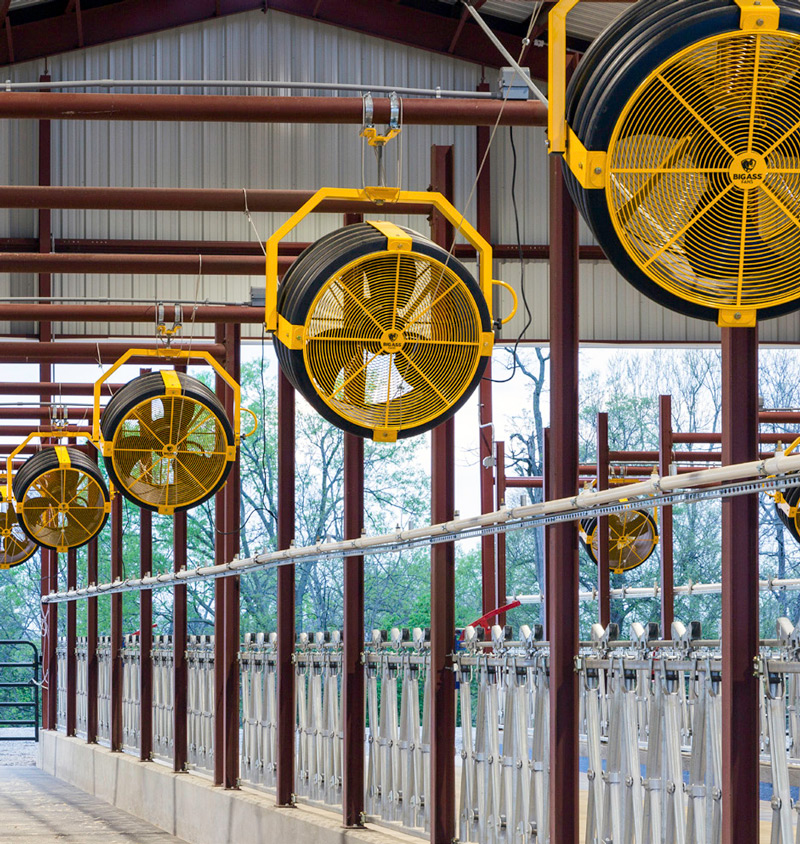

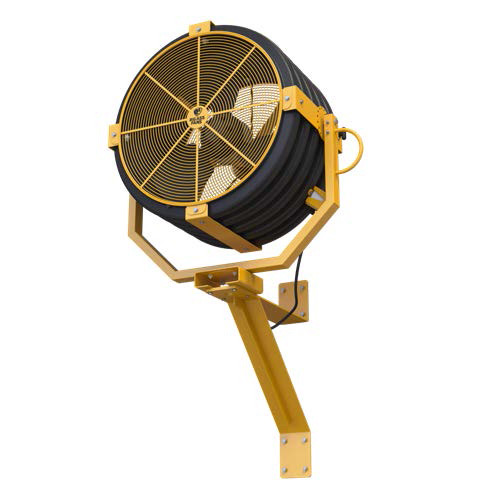

	Yellow Jacket - Industrial Mounted Directional Fan High density polyethylene housing with steel framing make this 30" directional fan durable enough to with stand impacts from cranes and forklifts in industrial environments. Available with wall/column, overhead, portable pedestal or low rider mounting options.

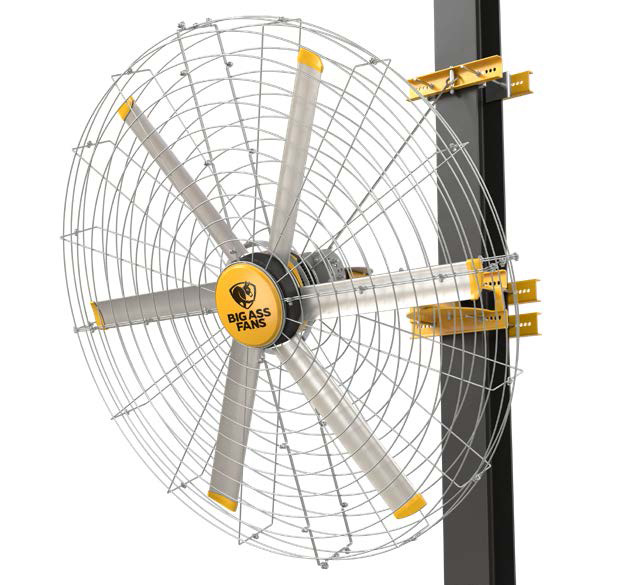

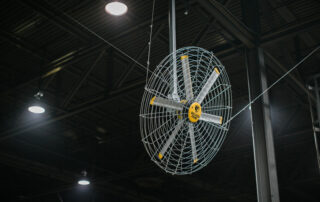

	Pivot - Large Mounted Directional Fan This large 6.35' fan with a quiet gearless direct drive motor. Available with overhead bar joists, I-beam and veritcal column mounting options.

Model Comparison Chart

	AirEye	Yellow Jacket	Pivot
Diameter	20", 24", 30" or 36"	30"	6.35'

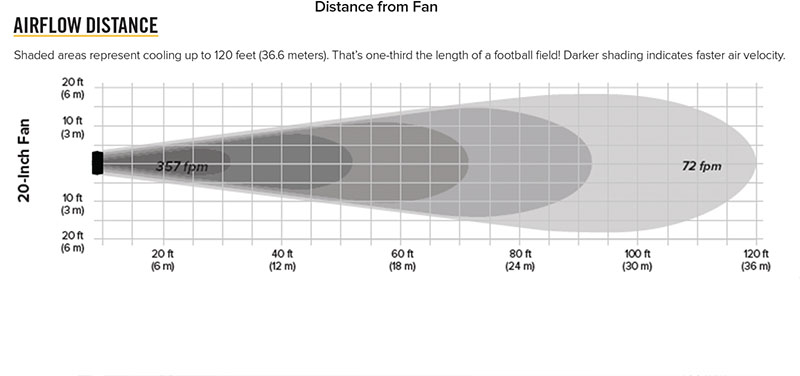

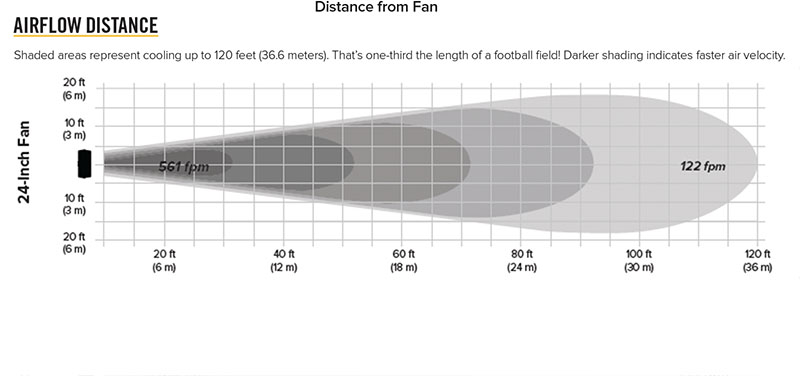

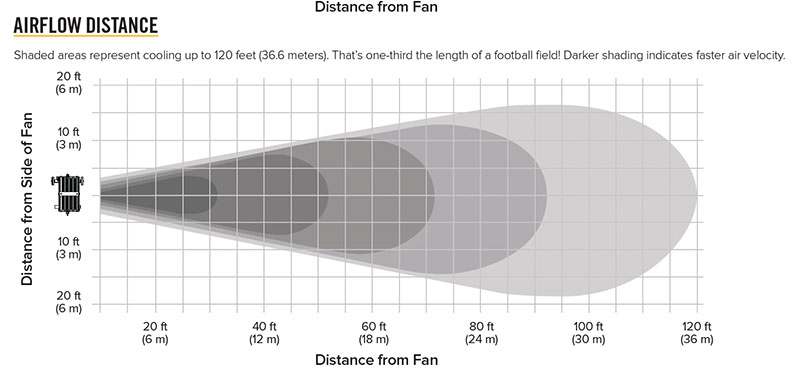

Airflow Distance	Cooling can be felt from 120 feet away, one-third the length of a football field.
Number of blades	3 blades in black or yellow	3 blades	6 blades
Mounting options	Pedestal Mount/Low Rider Swivel Mount Wall Mount C-Channel/I-Beam Mount	Portable Base (at three heights base, 18" or 36") Swivel Mount Wall Mount C-Channel/I-Beam Mount	Wall Mount C-Channel/I-Beam Mount
Housing	Heavy-gauge steel frame with position locking mechanism provides 360 degrees of rotation. In addition, OSHA-compliant 1/8 inch steel spiral guards and high density polyethylene housing with vibration dampening.	Durable steel cage with pivoting joints	OSHA-compliant steel wire cage
Motor	Electronically commutated motor	IPX5 rated motor	Gearless direct drive
Sound at max speed	69 dBA (72 dBA for 36 inch fans)	80.2 dBA	78.2 dBA
Controls	Infinitely variable speed AirEye Occupancy Sensor Automation and Multi-Fan Kit Automation and Multi-Fan Kit with AirEye Occupancy Sensor	Remotely mounted or onboard On/Off Variable speed	Variable speed controller mounts to singlegang junction box or to wall
Voltage	100–120 or 200–240 VAC	110–125 or 200–240 single phase VAC	110–125 or 200–240 multi-phase VAC

Customizations

20, 24, 30 or 26 inch fan size.
Black or yellow blades.
Pedestal Mount/Low Rider, Swivel Mount, Wall Mount or C-Channel/I-Beam Mount.
Swivel Kit.
100–120 or 200–240 VAC.
Occupancy sensor so they can turn on and off depending on if there is someone nearby.
BAFCon controller upgrade for multi-fan control and BMS Integration.
Automation and Multi-Fan Kit.

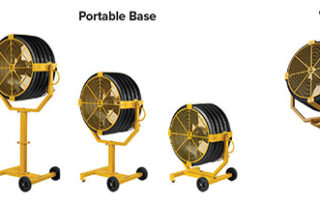

Portable Base (low rider, 18" or 36"), Wall/Column Mount or Overhead Mount.
Swivel Kit.
Oscillator Kit.
110–125 or 200–240 single phase VAC.
Occupancy sensor so they can turn on and off depending on if there is someone nearby.
BAFCon controller upgrade for multi-fan control and BMS Integration.
Automation and Multi-Fan Kit.

Overhead Bar Joists, I-Beams or Vertical Columns Mounts.
110–125 or 200–240 multi-phase VAC.

Warranty

0 Years

on main fan unit

0 Year

on accessories
