Compression Dock Seals
Head Pad and Curtain
Jump to: Information | Photos | Customers | Models | Compare Models | Customizations | Warranty
Head Curtain Dock Seal
Every dock seal is custom-made to best suit your door and your trucks to create a tight seal around the door opening. They prevent dirt, weather, containments and white light from coming in and provide energy savings.
✓ Increase safety for workers: Maintain operational efficiency and enhance worker productivity by keeping workers safe—prevent moisture, dust, insects and other contaminants from entering the facility.
✓ Ensure product safety: Prevent contamination with food, pharmaceutical and other products by creating a tight seal around the dock to inhibit contamination while saving energy at the same time.
Information
Blue Giant Fixed Head Pad Dock Seal (BG100)
Designed to suit door openings up to 8′ W x 8′ H to 9′ W x 9′ H, the Fixed Head Pad Dock Seal provides airtight protection when servicing trailers of consistent height.
When in use, the fixed head pad dock seal enables an energy-efficient seal that keeps facilities free of airborne contaminants, pests, and inclement weather conditions.

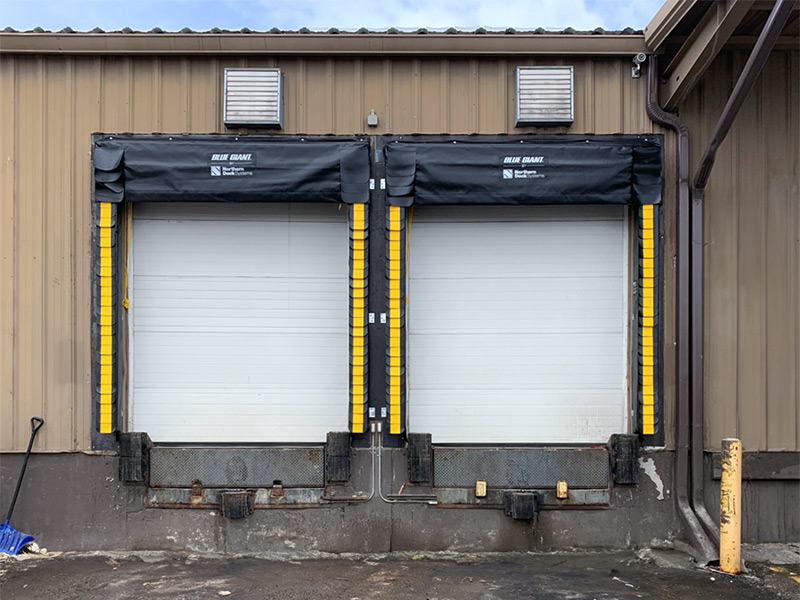

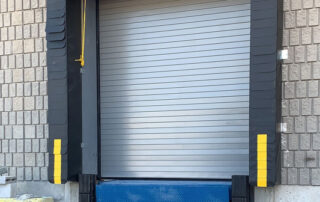

Blue Giant Head Curtain Dock Seal (BG200)
Designed to suit door openings from 8′ W x 10′ H to 9′ W x 10′ H, the Head Curtain Dock Seal is designed to securely seal higher door openings.
The header curtain has a built-in rope and pulley system that can be raised and lowered to match varying trailer heights, keeping outdoor contaminants out and conditioned air in.

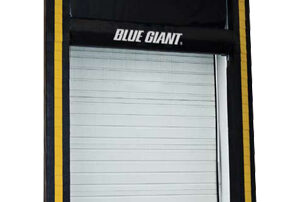

Blue Giant Adjustable Head Pad Dock Seal (BG300)
Designed to suit door openings from 8′ W x 10′ H to 9′ W x 10′ H, the Adjustable Head Pad Dock Seal’s design can accommodate a variety of trailer heights.
The foam head pad is raised and lowered on a track roller system while the torsion spring with an integral follower curtain makes it easy to create a tight seal. By sealing all gaps that could let in water or dust, the Adjustable Head Pad Dock Seal protects employees and cargo during the cross-docking process.
Dramatically Enhance Indoor Safety with a Head Curtain or Head Pad Dock Seal
Head Curtain and Head Pad dock seals dramatically enhance indoor safety by creating the tightest seal around trailers to:
 |
Prevent insects: Including flies, mosquitoes, spiders and other creepy crawlies. |
 |
Inhibit pests: Including mice, birds and other living creatures from entering indoors. |
 |
Keep harsh weather outside: Limit extreme heat or cold drafts and maintain comfortable indoor temperature. |
 |
Eliminate white light: Completely eradicate white light infiltration with a proper dock seal to ensure safety compliance. |
 |
Block moisture: Create a strong environmental separation between outdoor and indoor temperatures to prevent moisture build-up. |
The Benefits of a Proper Dock Seal
A proper dock seal and its compression has numerous benefits, including:
- Energy loss prevention/increased energy savings.
- Security and protection against stolen goods or unauthorized entry.
- Quick return on investment.
- Creating a safer working environment for workers in the loading dock area.
- Maintaining or increasing operational efficiency through indoor comfort.
Optional Wear Pleats and Tapered Units
Customize your dock seal with wear pleats and tapered units to best seal loading docks with incline or decline approaches.
Check for Air or Light Leaks in Four Key Areas
An inefficient dock seal/shelter might not be the only cause of issues you are possibly facing—the performance of a dock seal/shelter directly relates to other products as well.
Check your loading dock in four key areas to determine if your dock seal or dock shelter needs to be replaced.
- Top of the trailer: Are your floors forming puddles or ice when it rains/snows? Seal the gap between the trailer top and your dock door to prevent slip and fall hazards.
- Side of the trailer: Are you noticing white light infiltration? If so, you need to modify or replace your dock seal or dock shelter.
- Dock leveler and trailer gap: Damaged goods or injuries to personnel are the biggest indicators of an uneven level between the trailer and the dock floor. Prevent injuries and damaged goods with a proper dock leveler.
- Corners of the door: Don’t forget to seal the corners of your doors, which are common areas where insects, dust and other contaminants enter the facility.
Note: Remember that performance dock bumpers and bumper projection also affect the efficiency and longevity of any dock seal or dock shelter.

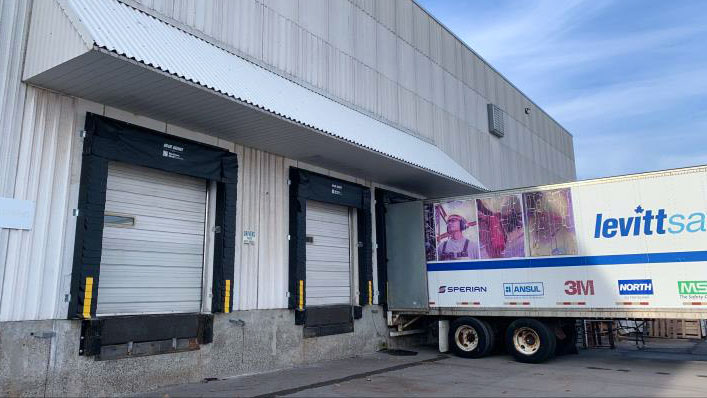

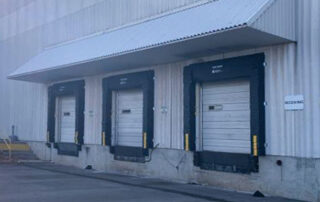

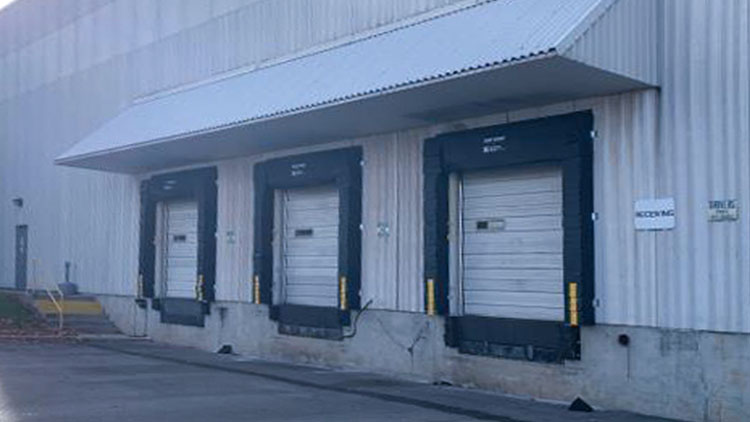

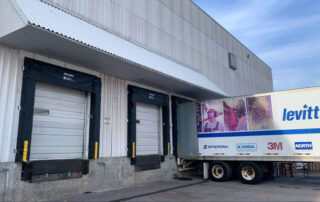

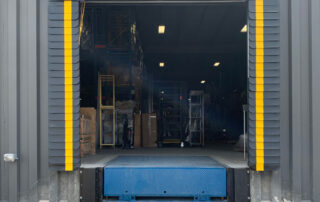

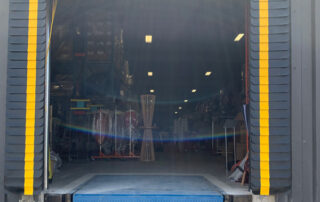

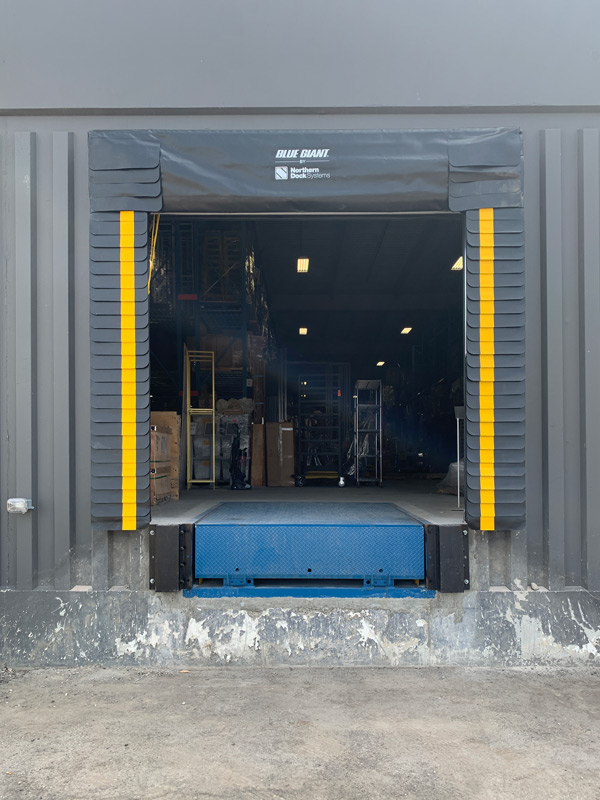

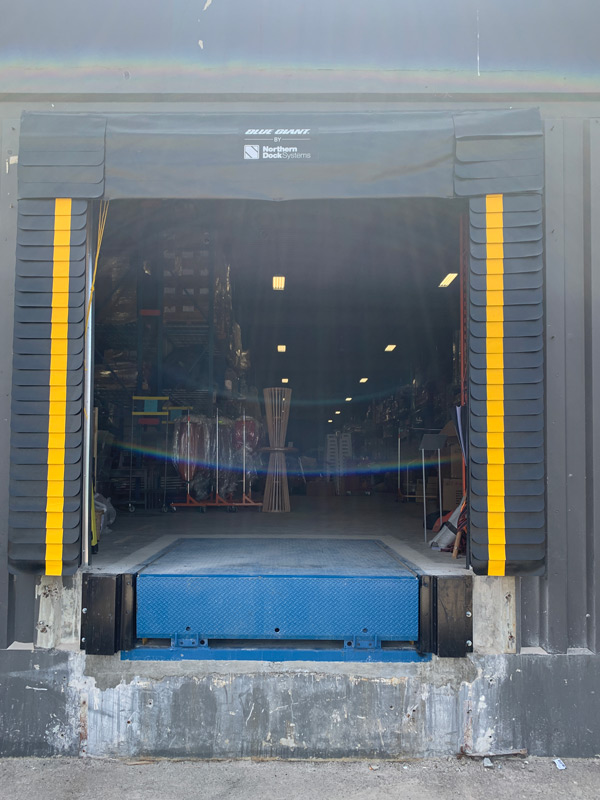

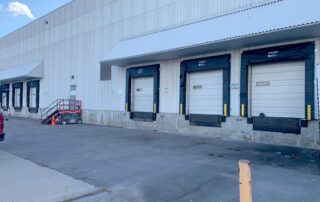

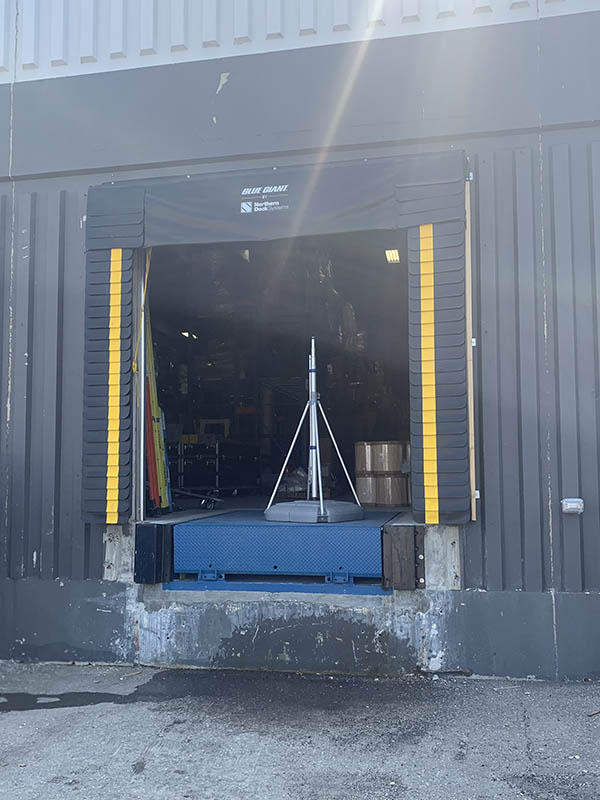

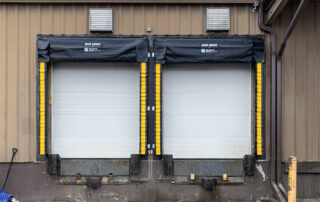

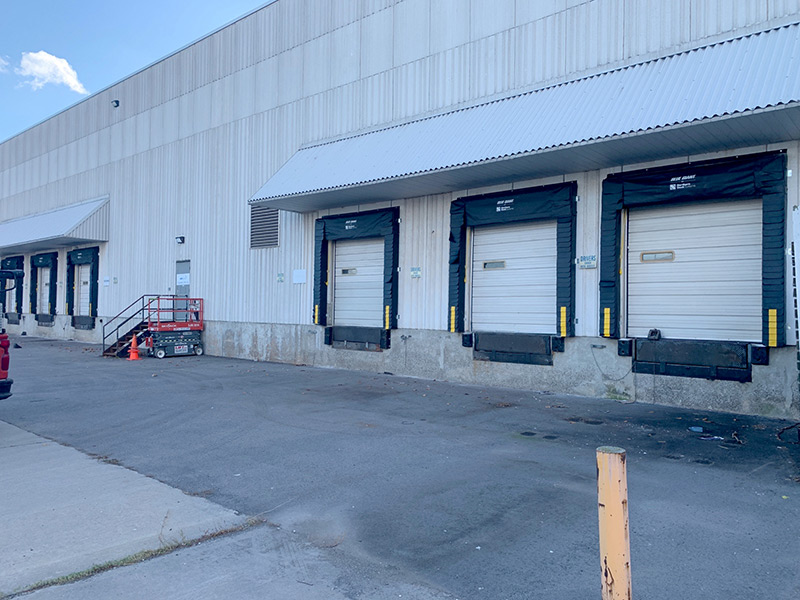

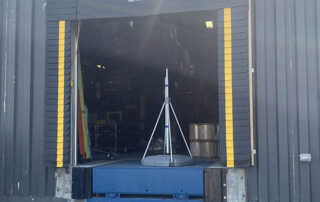

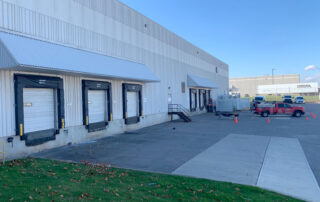

Photos
Models
|

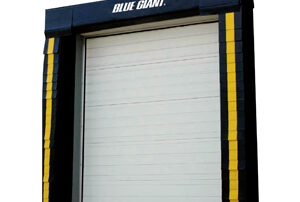

Fixed Head Pad Dock Seal (BG100)The Blue Giant Fixed Head Pad Dock Seal has foam-filled head and side pads, providing the most effective seal and the most economical solution for door sizes up to 8' wide x 8' high (2,438 mm x 2,438 mm) to 9' wide x 9' high (2,743 mm x 2,743 mm). |
|

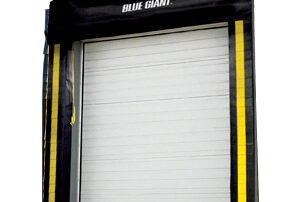

Head Curtain Dock Seal (BG200)The Head Curtain Dock Seal has a curtain style head member and foam filled side pads to provide an effective seal and offer the most economical solution for door sizes from 8' wide x 9' high (2,438 mm x 2,743 mm) to 9' wide x 10' high (2,743 mm x 3,048 mm) |
|
Adjustable Head Pad Dock Seal (BG300)Designed to suit door openings from 8' W x 10' H (2,438 mm x 3,048 mm) to 9' W x 10' H (2,743 mm x 3,048 mm), the Adjustable Head Pad Dock seal is a perfect solution for higher door openings that accommodate a wide range of trailer heights. |
Model Comparison Chart
| Fixed Pad (BG100) | Head Curtain (BG200) | Adjustable Pad (BG300) | |
| Door size | Up to 9'x9' | Up to 9'x10' | Up to 9'x10' |
| Header type | Fixed head pad | Adjustable slopped head curtain | Adjustable head pad |
| Side pads | |||
| Fabric | |||
| Projection | |||
| Stitching | |||
| Waterproof | |||
| Tapered bottom | |||
| Optional safety guide stripes | |||
| Mounting hardware | |||
Customizations
- Material weight options: 22oz Vinyl, 40oz Vinyl, 50oz Vinyl, 16oz Hypalon or 40oz Hypalon.
- Material colours: For 22oz Vinyl and 40oz Vinyl, fabric is available in black, blue, brown or green. All other fabrics are only available in black.
- Tapered side for incline/decline approach.
- Wear pleats available in 4", 8" and 16" overlap exposure. We recommend 4" wear pleats for three layers of fabric protection across the dock seal for more durability.
- Full height yellow guide stripe.
- Pressure-treated lumber.
- Fixed Head Pad Dock Seal (BG100)
- Fabric rain shroud
- PVC drop curtain
- 18" (457 mm) head pad
- 12" (305 mm) header drop curtain with Velcro
- Header flaps across entire head pad
- Bottom flaps on verticals
- Steel backer
- Head Curtain Dock Seal (BG200)
- PVC drop curtain
- Competetive split head curtain, no hook and loop or pulleys
- Full foam face / split Velcro curtain
- Full width head curtain that can be raised and lowered to suit a broad range of trailer heights
- Adjustable with ropes and pulleys
- Hook and loop split that allows the curtain to be adjusted even after the truck has docked
- 4" full foam face pad with hook and loop split to enable a tighter seal
- 48" (1,219 mm) skid guards
- Soft foam
- Adjustable Head Pad Dock Seal (BG300)
- 48" (1,219 mm) travel in head pad
- 48" (1,219 mm) skid guards
- Soft foam
For optimum performance, pair these products with:
Warranty
• 1 year limited.
