Full Access L-Pad Dock Shelter (BG700)
Jump to: Information | Photos | Customers | Customizations | Warranty | Specifications
✓ Designed for 10′ x 10′ door openings: The Full Access L-Pad Dock Shelter accommodates larger doorways and docks that serve a bigger variety of trailer types and sizes. For full trailer access while providing a tight seal around the top and sides.
✓ Increase safety for workers: Maintain operational efficiency and enhance worker productivity by keeping workers safe—prevent moisture, dust, insects and other contaminants from entering the facility.
✓ Ensure product safety: Prevent contamination with food, pharmaceutical and other products by creating a tight seal around the dock to inhibit contamination while saving energy at the same time.
Information

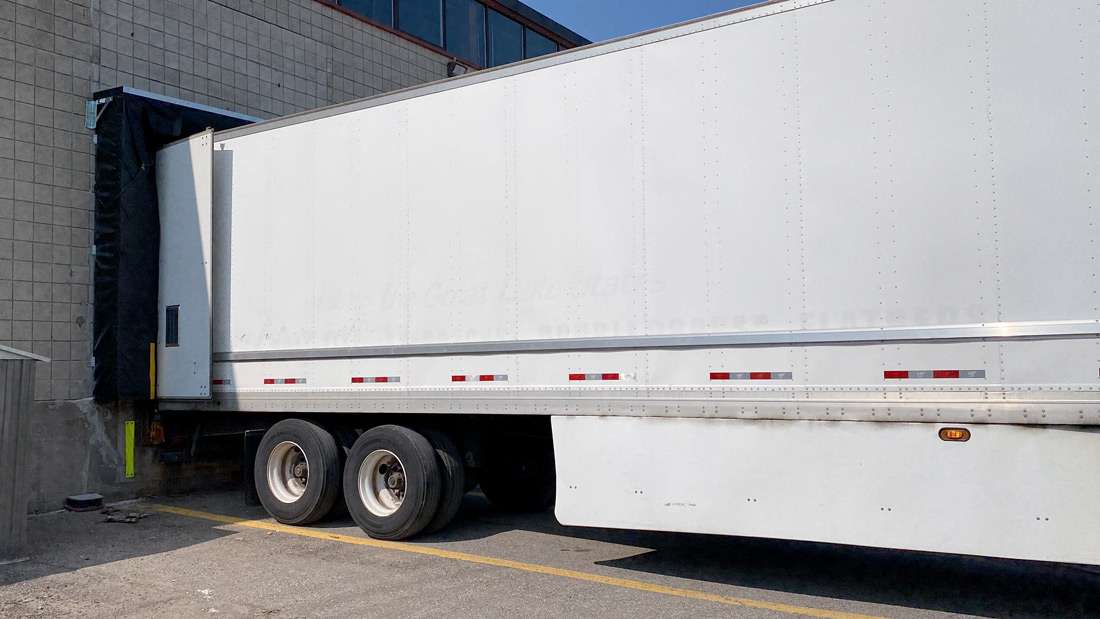

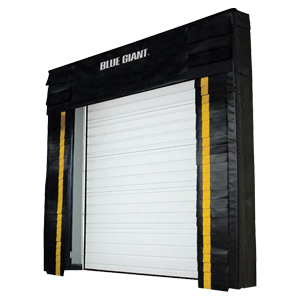

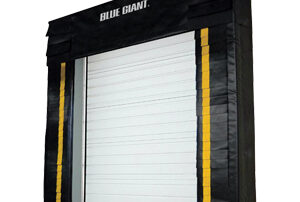

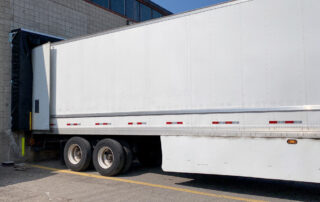

The Full Access L-Pad Dock Shelter is specifically crafted to accommodate door openings up to 10 feet wide and 10 feet high. This unique design enables trucks to back onto the vertical pads, forming a secure and tight seal to prevent contamination and save on energy.
The velcro split head curtain can be easily raised and lowered on top of the truck, providing full access to the interior.
These standard units are designed to effectively seal trailers that are 12 to 13.5 feet high on a typical 4-foot dock height.
Stationary Dock Shelter Features
- Weighted head curtain with stays
- Internal straps for shape retention
- Double-stitching on all seams
- Treated lumber
- 16″ projection
- Hook and loop-split adjustable head curtain measuring 11.3″ wide x 16″ projection, plus
- 30″ drop curtain
- High visibility 24″ yellow guide stripe
- Waterproof wraparound design with vapour barrier
- Condensation draining vents
- 99% memory foam
- Optional Wear flaps to absorb extra abrasion in high-wear areas
- Galvanized mounting hardware
Dramatically Enhance Indoor Safety with a Stationary Dock Shelter
The Stationary Dock Shelter dramatically enhances indoor safety by creating the tightest seal around trailers to:
 |
Prevent insects: Including flies, mosquitoes, spiders and other creepy crawlies. |
 |
Inhibit pests: Including mice, birds and other living creatures from entering indoors. |
 |
Keep harsh weather outside: Limit extreme heat or cold drafts and maintain comfortable indoor temperature. |
 |
Eliminate white light: Completely eradicate white light infiltration with a proper dock seal to ensure safety compliance. |
 |
Block moisture: Create a strong environmental separation between outdoor and indoor temperatures to prevent moisture build-up. |
The Benefits of a Proper Dock Shelter
A proper dock shelter yields numerous benefits, including:
- Energy loss prevention and increased energy savings.
- Security and protection against stolen goods or unauthorized entry.
- Quick return on investment.
- Creating a safer working environment for workers in the loading dock area.
- Maintaining or increasing operational efficiency through indoor comfort.
Check for Air Leaks or White Light
An inefficient dock shelter might not be the only cause of issues you are possibly facing—the performance of a dock seal/shelter directly relates to other products as well.
Check your loading dock in four key areas to determine if your dock seal or dock shelter needs to be replaced.
- Top of the trailer: Are your floors forming puddles or ice when it rains/snows? Seal the gap between the trailer top and your dock door to prevent slip and fall hazards.
- Side of the trailer: Are you noticing white light infiltration? If so, you need to modify or replace your dock seal or dock shelter.
- Dock leveler and trailer gap: Damaged goods or injuries to personnel are the biggest indicators of an uneven level between the trailer and the dock floor. Prevent injuries and damaged goods with a proper dock leveler.
- Corners of the door: Don’t forget to seal the corners of your doors, which are common areas where insects, dust and other contaminants enter the facility.
Note: Remember that performance dock bumpers and bumper projection also affect the efficiency and longevity of any dock seal or dock shelter.

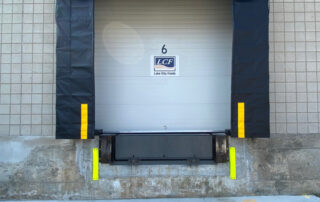

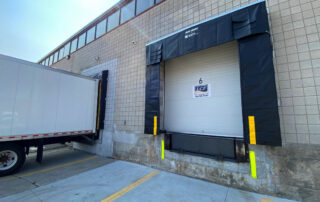

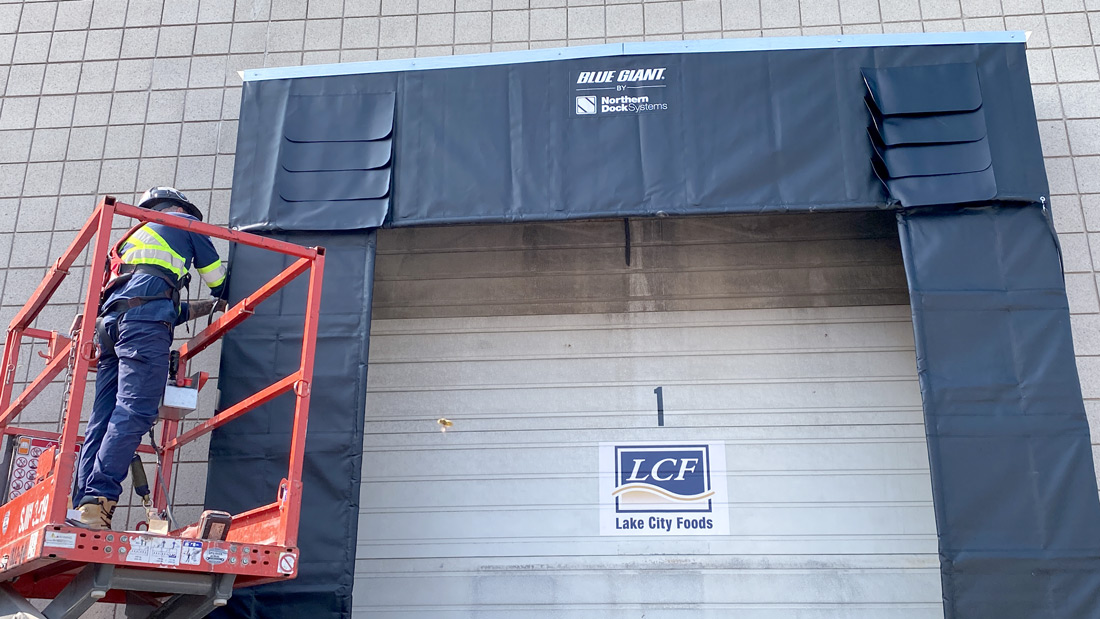

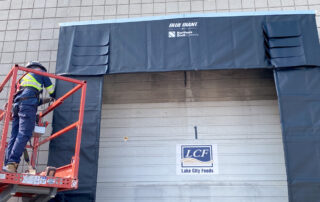

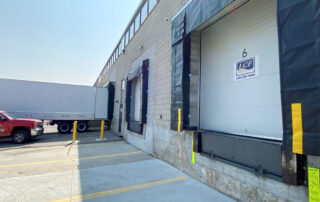

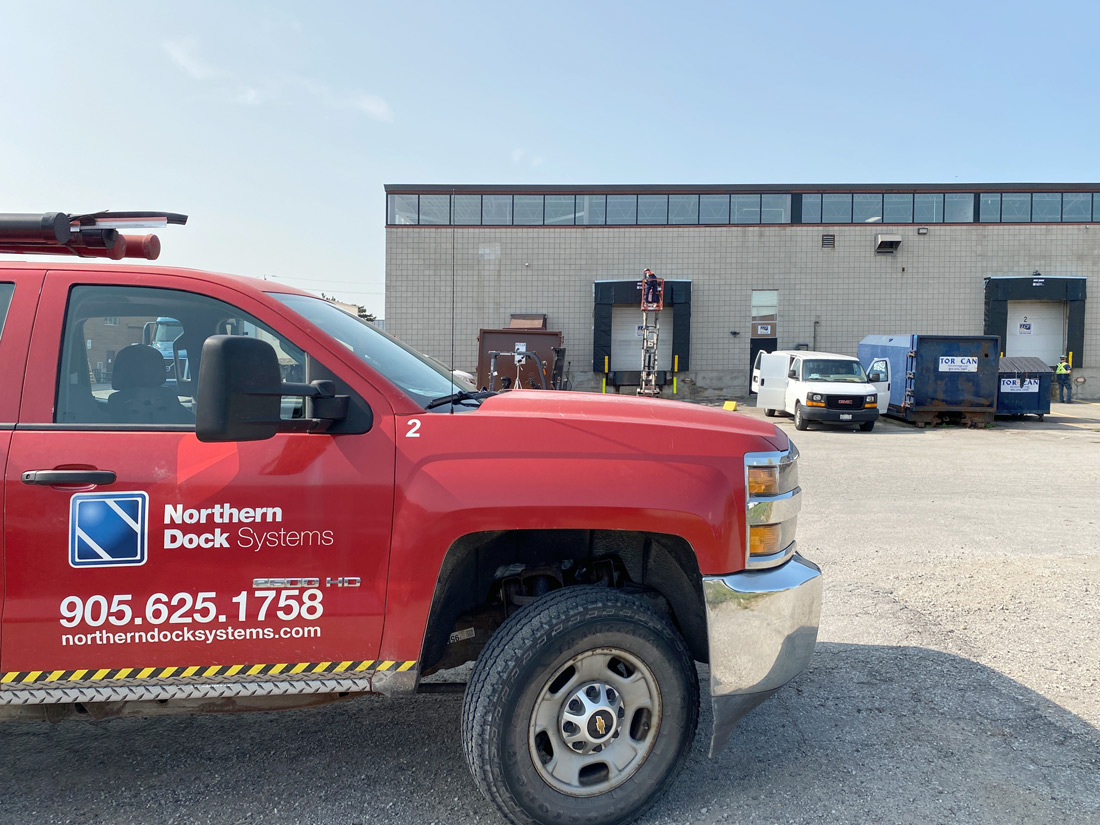

Photos
Specifications
| Door size | Up to 10' wide by 10' high |
| Side pads | L-pad style with 99% memory form and waterproof wraparound design with vapor barrier. |
| Head curtain | Hook and loop-split adjustable head curtain measuring 11.3" wide x 16" projection, plus 30" drop curtain. |
| Safety guide stripes | Recommended option high visibility 24" yellow guide stripe. |
| Fabric | 22oz Hi-Tear vinyl 40oz Hi-Tear vinyl 50oz Hi-Tear vinyl 16oz hi-performance hypalon 40oz hi-performance hypalon |
| Mounting hardware | Galvanized |
Customizations
- 22oz Hi-Tear vinyl, 40oz Hi-Tear vinyl, 50oz Hi-Tear vinyl, 16oz hi-performance hypalon or 40oz hi-performance hypalon fabric
- If using vinyl, it is available in black, blue, brown or green
- PVC drop curtain
- 4", 8", or 16" wear flaps/pleats to suit site requirements
For optimum performance, pair this dock shelter with:
Warranty
• 1 year limited.
