Rain Shroud Dock Canopy
Stops Rain from Trailers

Blue Giant Authorized Dealer

Stops Rain with the Rain Shroud

Stop rain and snow from rolling off the tops of trailers into your loading dock with a Rain Shroud dock canopy, which can be added to dock seals and shelters.

Energy savings: Save hundreds of dollars in reduced energy costs.

Stops pests and dirt: Improve working conditions by keeping dust, dirt, debris and insects out.

Keeps out the harsh weather: Protect product and personnel from harsh weather conditions.

Improve safety: Increase productivity by providing a safe and comfortable working environment.

Information

rain water dripping off top of trailer onto dock puddling

Issue #1: Water Rolling Off Trailers

Water can roll off the top of trailers and onto the loading dock area. As a result, it can puddle and lead to wet, slippery and icy floors in your loading dock.

Rain water dripping off trailer slippery and wet conditions safety hazard

Issue #2: Safety Hazard to People

The wet, slippery and icy floors are dangerous to personnel as it can lead to potential slips and falls. Consequently leading to health and safety issues.

Rain water dripping off trailer damaging and soaking product below

Issue #3: Damages Goods

Your product and goods can get damaged from water dripping off the top of trailers onto goods underneath. As a result, it decreases the productivity at your facility and increase unnecessary waste.

No dock seal head curtain white light contaminants bugs birds pests safety hazard

Issue #4: White Light in Audits

The gaps between the top of trailers and your dock seal or shelter are areas where contaminants such as dust, dirt, debris, insects and birds can get in. Therefore, health and safety officials look for white light as areas of weakness in their audits.

Solution: Rain Shroud Dock Canopy

The Blue Giant Rain Shroud can be retrofitted to your existing dock seal or shelter to keep rain water out of the loading dock area. A foam wiper blade design creates a tight seal against the top of the trailer to keep rain water out of the loading dock area.

This economical design is virtually maintenance-free with no mechanical parts to wear out. Standard units seal trailers from 13′ to 13.5′ high on a typical 4′ dock height.

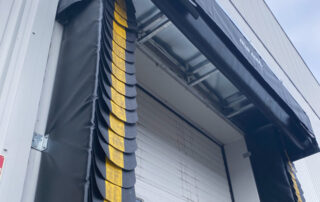

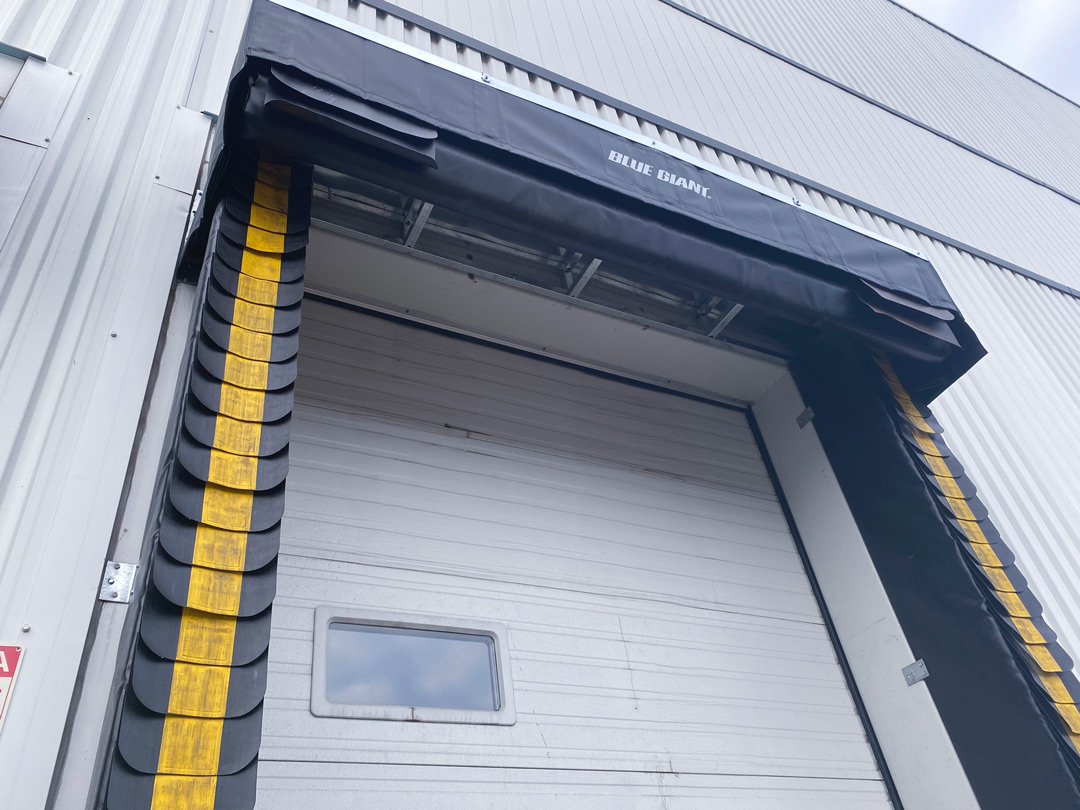

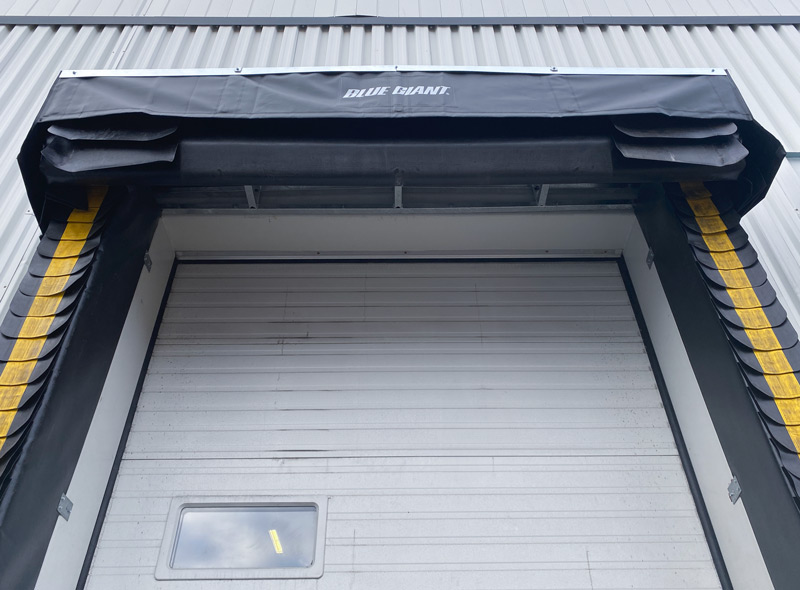

Galvanized Rain Shroud Dock Canopy

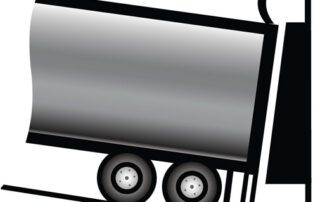

decline approach rain shroud dock canopy foam wiper blade curtain wipes top of trailer

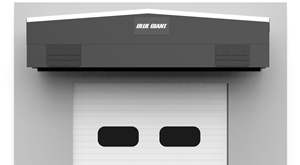

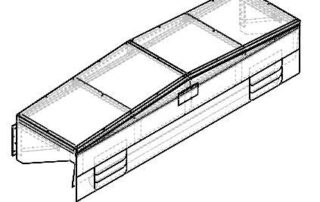

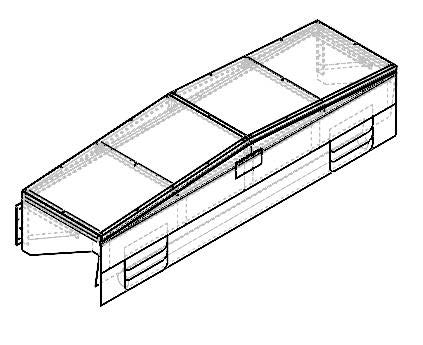

Multiple Trailer Heights? Upgrade to the Rain Shroud Max

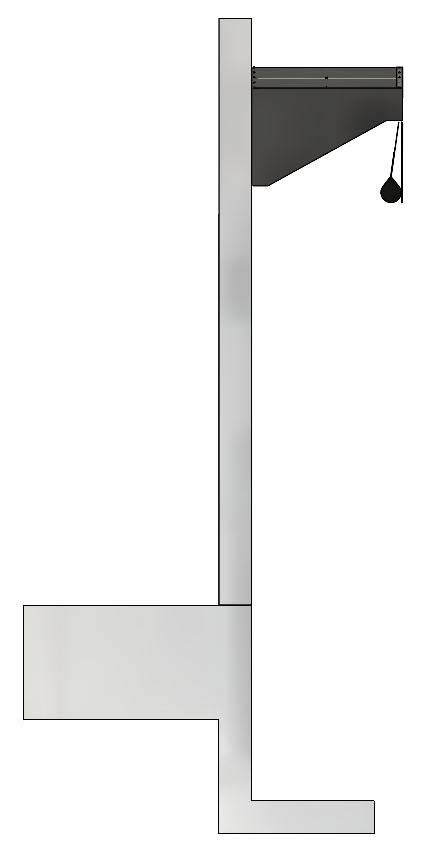

An upgraded version, the Rain Shroud Max has a self-adjusting weighted foam pad to create a tight seal against rainwater for up to a 12-inch variance in trailer heights. It is an effective coverage, which allows for customization based on specific dock requirements.

Rain Shroud Max conforms to deformities on a trailer’s surface, preventing leakage. A reinforced top steel bar creates a tight seal and boosts curtain strength.

The Benefits of a Rain Shroud Dock Canopy

  • The foam wiper blade curtain creates a tight seal to prevent water from getting in.
  • Dual-density foam with 99% memory for a tight seal around the top of the trailer to prevent white light.
  • Durable 40oz Hi-Tear vinyl, 50oz Hi-Tear vinyl or 40oz Hi-Performance Hypalon.
  • Protective wear flaps/pleats in the corners.
  • Double-stitching on all seams.
  • Galvanized head frame diverts rain water away from the loading dock.
  • Energy loss prevention and increased energy savings with a tight seal.
  • Creating a safer working environment for workers in the loading dock area.
  • Maintaining or increasing operational efficiency through indoor comfort.

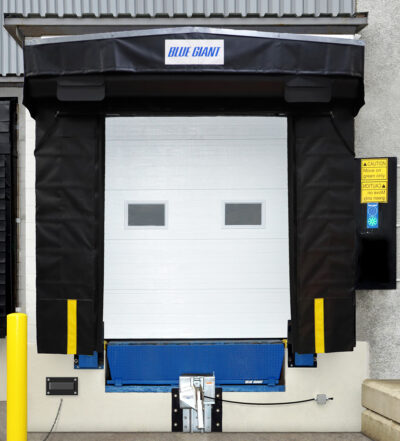

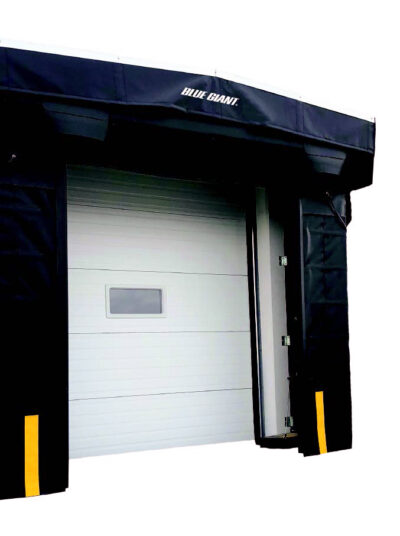

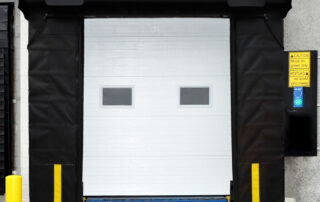

Blue Giant HingeMaster Extreme Dock Shelter J-hooks foam frame rain shroud
Prevent insects: Including flies, mosquitoes, spiders and other creepy crawlies.
Inhibit pests: Including mice, birds and other living creatures from entering indoors.
Keep harsh weather outside: Limit extreme heat or cold drafts and maintain comfortable indoor temperature.
Eliminate white light: Completely eradicate white light infiltration with a proper dock seal to ensure safety compliance.
Block moisture: Create a strong environmental separation between outdoor and indoor temperatures to prevent moisture build-up.
For optimal effectiveness, pair your dock canopy with a proper dock seal/shelter and dock bumpers.

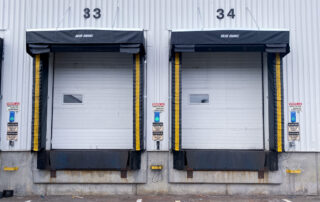

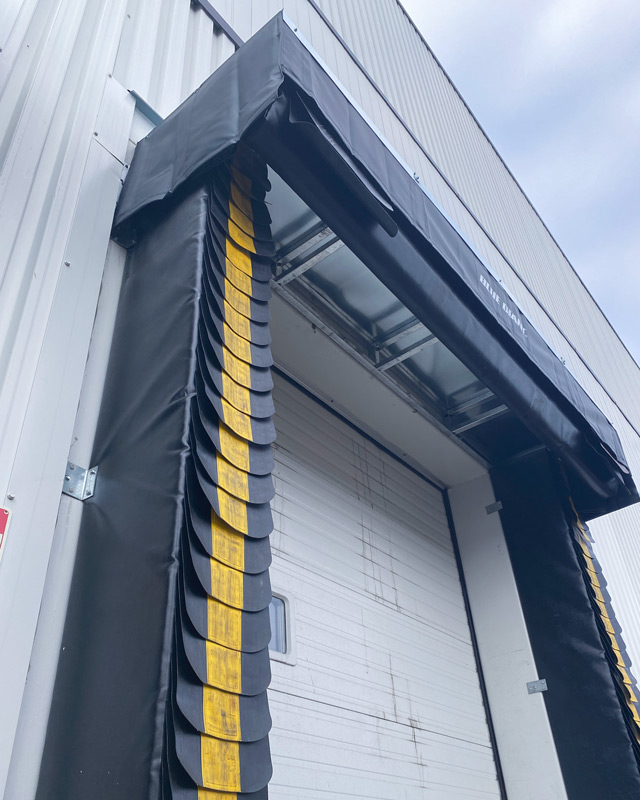

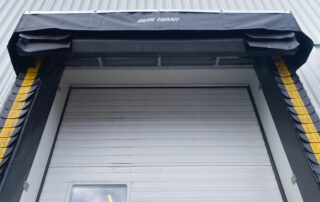

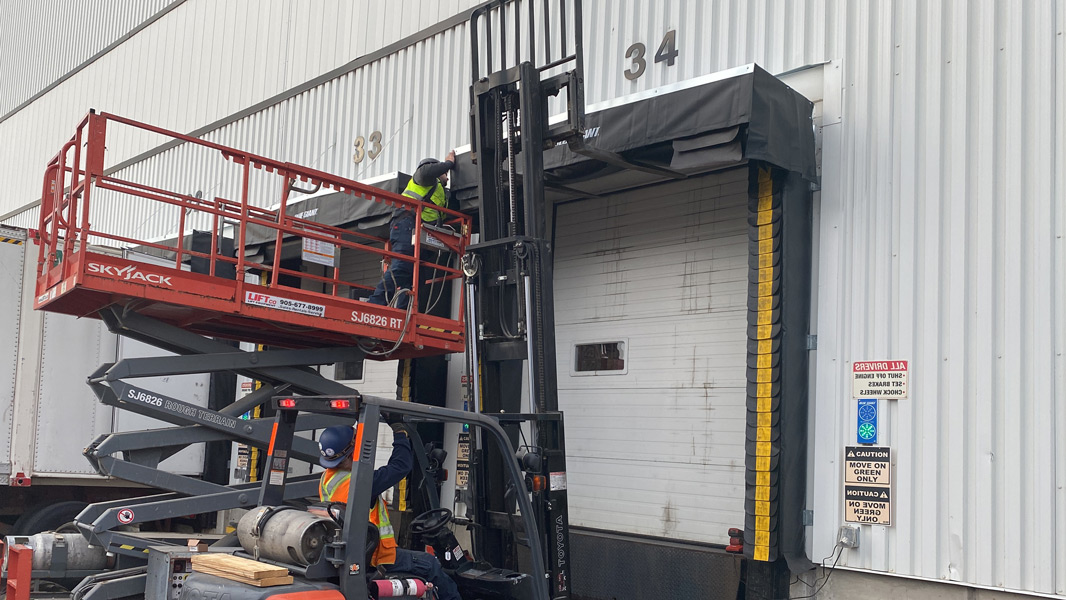

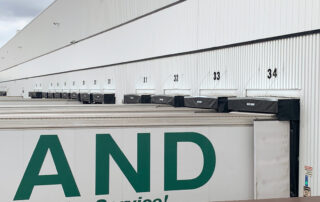

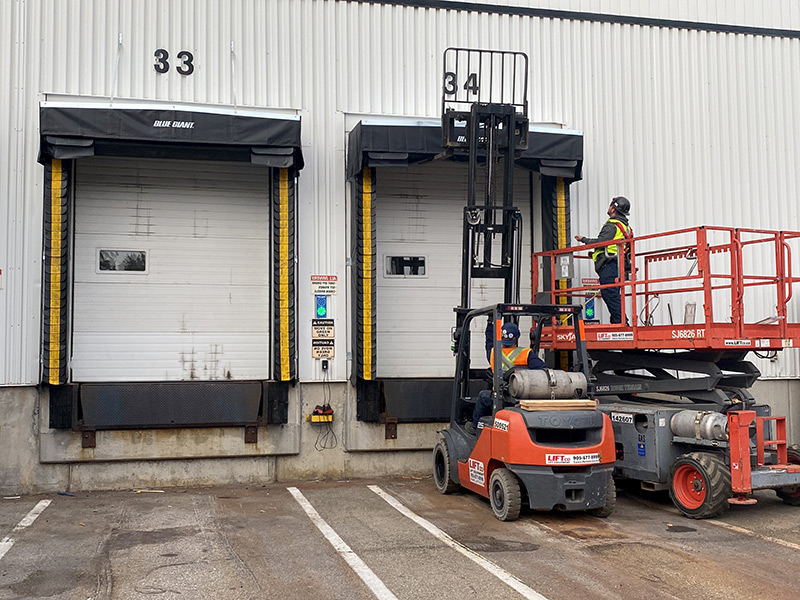

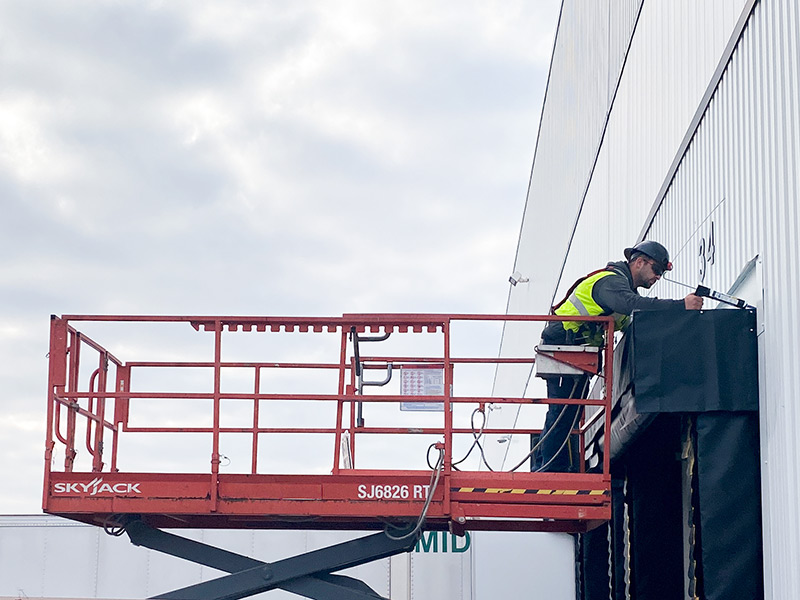

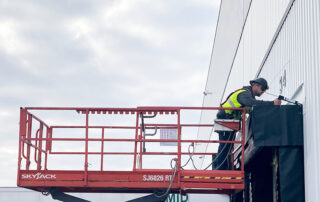

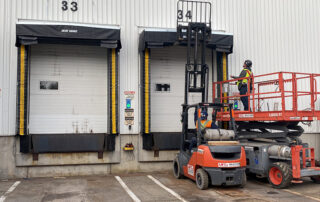

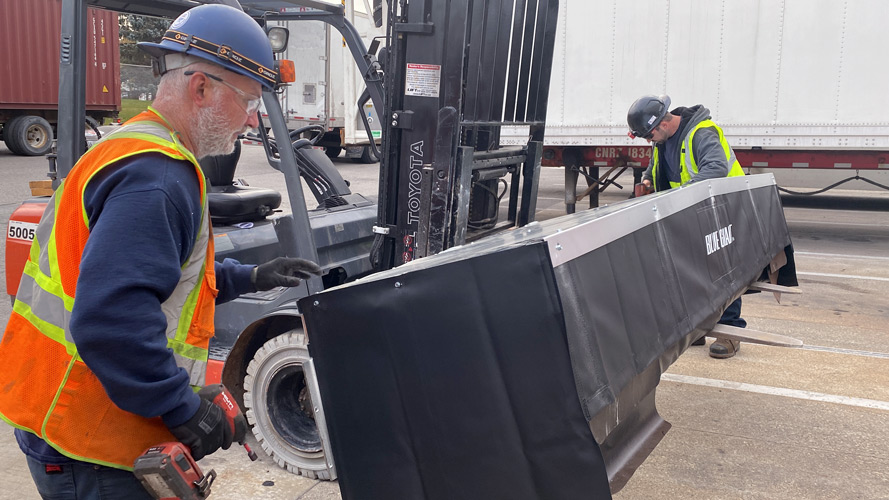

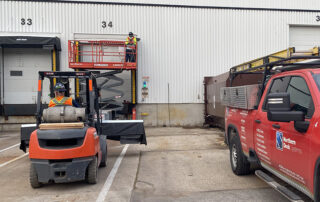

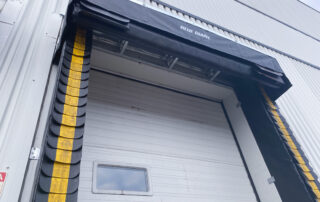

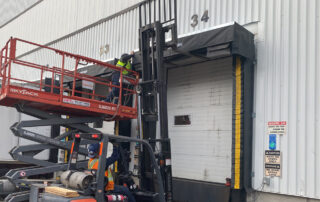

Photos

Videos

Stop Rain with Rain Shroud

FStop rain and snow from rolling off the tops of trailers into your loading dock with a Rain Shroud dock canopy, which can be added to dock seals and shelters.

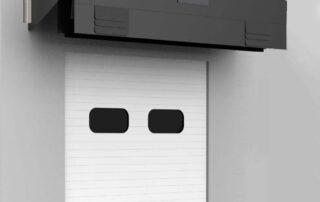

Rain Shroud

A self-adjusting weighted foam pad design to create a tight seal against rainwater for up to a 12-inch variance in trailer height.

Power reinvented

Get insight into the breakthrough direct drive motor technology for HVLS Fans.

Air reinvented

With its NASA-engineered wing design, MacroAir HVLS Fans move the most amount of air in any given space.

Customers That Love These Products

Models

Rain Shroud (BG900)

A foam wiper blade design creates a tight seal against the top of the trailer to keep rain water out of the loading dock area. Standard units seal trailers from 13′ to 13.5′ high on a typical 4′ dock height.

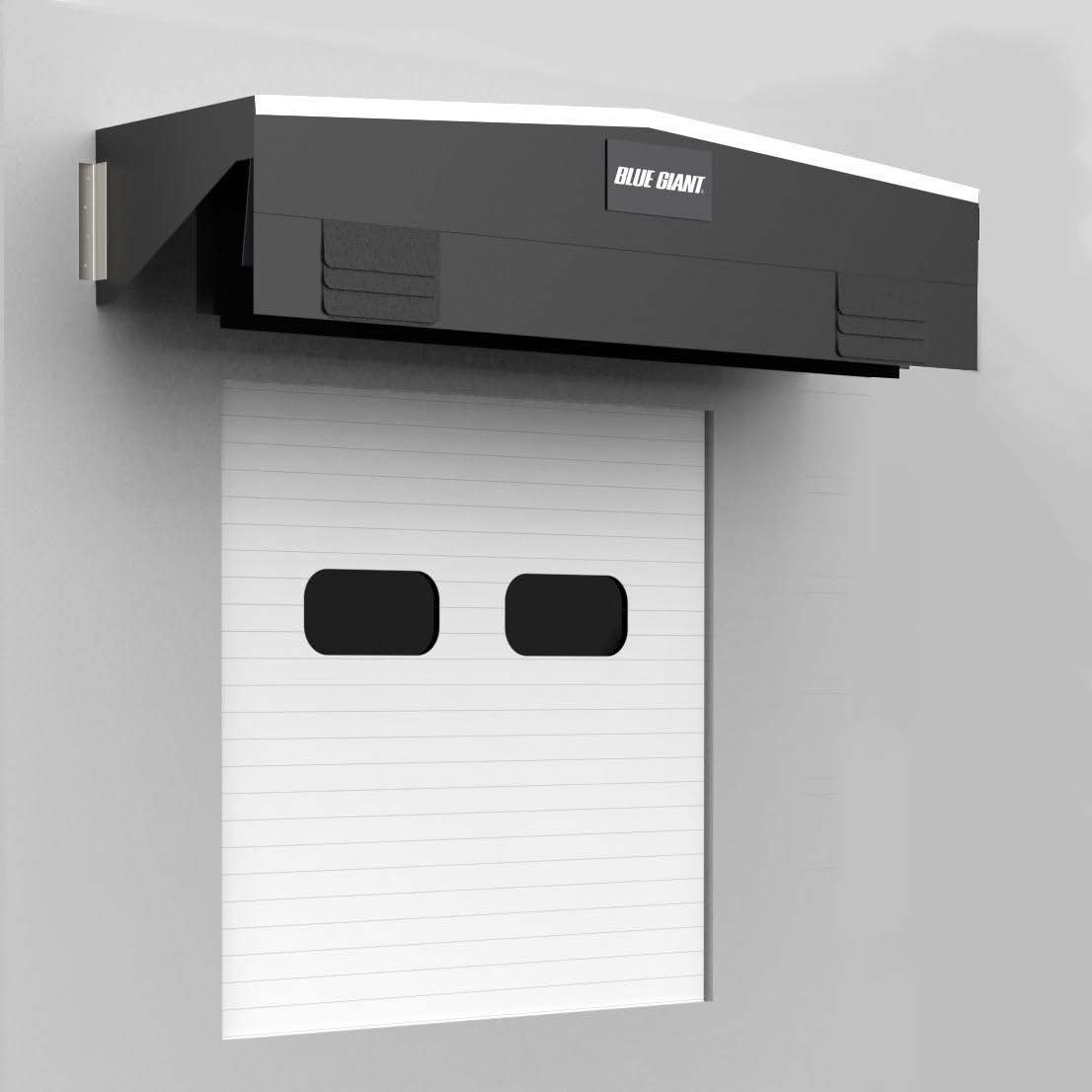

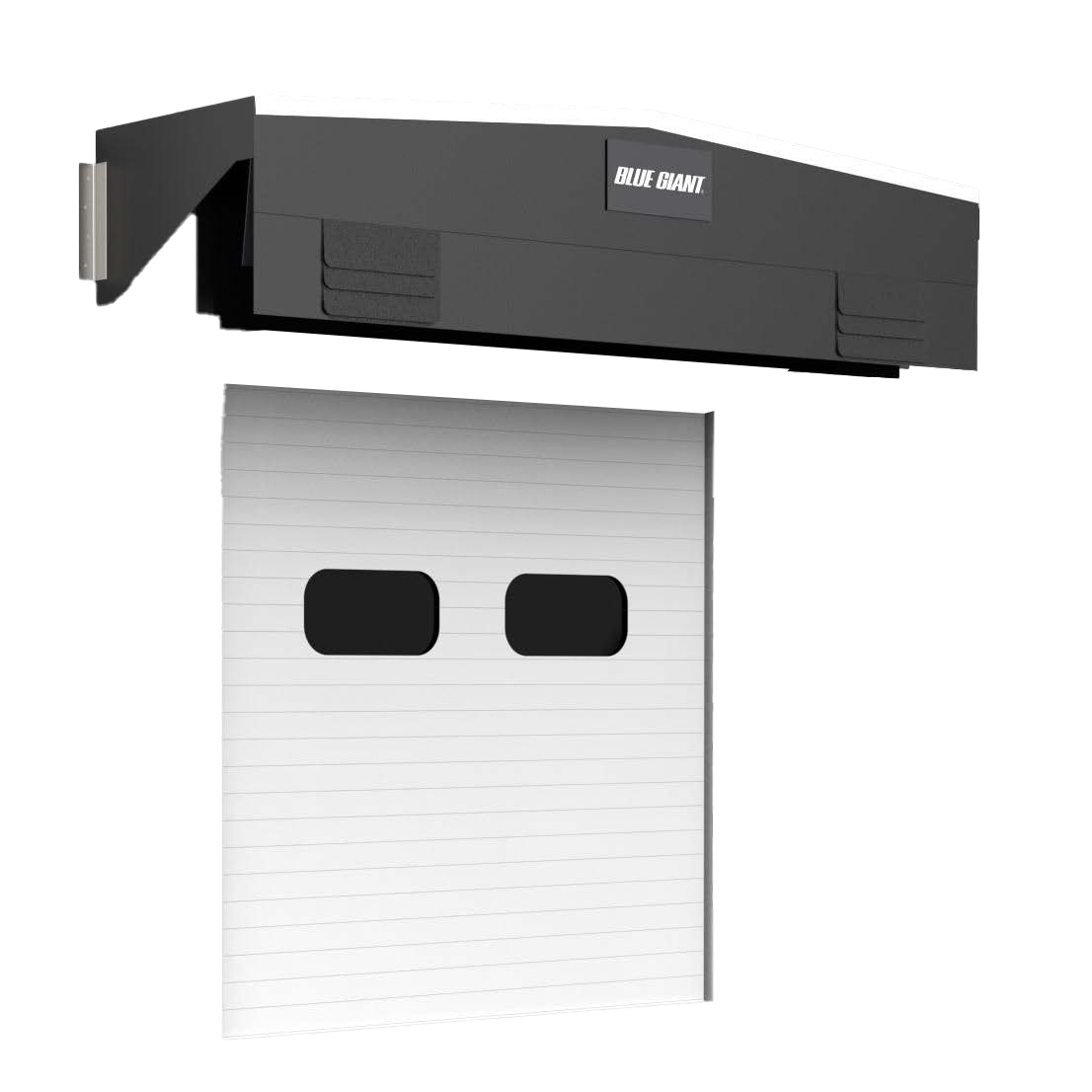

Rain Shroud Max (BG910) A self-adjusting weighted foam pad design to create a tight seal against rainwater for up to a 12-inch variance in trailer height.

Model Comparison Chart

Rain Shroud (BG900) Rain Shroud Max (BG910)
Dimensions 120" wide x 24" projection with a 24" drop. Can be customized with additional drop and width. 120” wide x 30” projection with an 18” drop.
Style Wide storage curtain with foam wiper blade. Wide storage curtain with self-adjusting weighted foam pad.
Fabric
40oz Hi-Tear vinyl, 50oz Hi-Tear or 40oz Hi-Performance Hypalon.
Framing Pressure-treated lumber with fibreglass sheeting to prevent fading or cracking in the sun. Can be upgraded to galvanized framing. Steel header frame with PowderCoatTM and galvanized top sheet metal. Can be upgraded to galvanized framing.
Mounting
Two galvanized side support mounting brackets.
Construction
Dual density foam with 99% memory.
Stitching
Double-stitching on all seams.
Proctection
10"x20" protective flaps/pleats on corners.

Customizations

  • Fabric: 40oz Hi-Tear vinyl, 50oz Hi-Tear vinyl or 40oz Hi-Performance Hypalon.
  • Fabric Colour: 40oz Hi-Tear vinyl available in black, blue, brown or green. 50oz Hi-Tear and 40oz Hi-Performance Hypalon available in black only.
  • Additional drop in head pad.
  • Additional width.
  • Galvanized steel framing.
  • Snow load supports (pair).
  • Gussets in head curtain.
  • Anchor screw.
  • ArmorShield™ reinforced wear flaps.

Warranty

  • 1 year limited.
