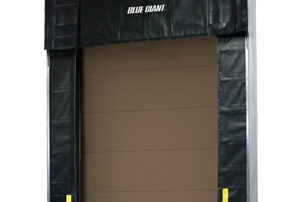

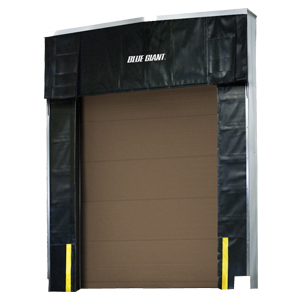

Stationary Dock Shelter (BG400)
Jump to: Information | Photos | Customers | Customizations | Warranty | Specifications
✓ Designed for 10′ x 10′ door openings: The Stationary Dock Shelter accommodates larger doorways and docks that serve a bigger variety of trailer types and sizes. For full trailer access while providing a tight seal around the top and sides.
✓ Increase safety for workers: Maintain operational efficiency and enhance worker productivity by keeping workers safe—prevent moisture, dust, insects and other contaminants from entering the facility.
✓ Ensure product safety: Prevent contamination with food, pharmaceutical and other products by creating a tight seal around the dock to inhibit contamination while saving energy at the same time.
Information
The Stationary Dock Shelter creates a tight seal with stiffeners and foam filled edge. As a result, they seal around a variety of trucks for doors up to 10′ x 10′.
In addition, the dock shelter side pads protect cross-docking traffic from weather conditions to improve safety for workers and products.
Futhermore, the foam bottom draft pads are easily replaceable and seal the gap between the trailer and the building at the bottom.
Finally, wear flaps reinforce the head curtain at contact areas, and the bottom 24″ of the side curtain are reinforced with double fabric layers for added durability.
Stationary Dock Shelter Features
- 24″ projection.
- 22 oz Hi-Tear vinyl base fabric. Can be upgraded to 40 oz Hi-Tear vinyl, 50 oz Hi-Tear vinyl, 16 oz hi-performance hypalon or 40 oz hi-performance hypalon fabric.
- Stiffeners in the head and side curtains maintain constant contact with the trailer.
- Foam-filled edge creates a complete seal.
- High visibility 24″ yellow guide stripe.
- Pressure-treated lumber framing that resists rot and erosion. Can be upgraded to painted or galvanized steel framing.
- Galvanized mounting hardware.
- Durable head unit measuring 138″ wide, with a 24″ projection and a 36″ drop curtain.
- Protective wear flaps/pleats on the head curtain.
- Peaked header frame to divert water from dock floor.
- Translucent polyethylene sheeting with UV inhibitors allows light into the loading dock area.
Dramatically Enhance Indoor Safety with a Stationary Dock Shelter
The Stationary Dock Shelter dramatically enhances indoor safety by creating the tightest seal around trailers to:
 |
Prevent insects: Including flies, mosquitoes, spiders and other creepy crawlies. |
 |
Inhibit pests: Including mice, birds and other living creatures from entering indoors. |
 |
Keep harsh weather outside: Limit extreme heat or cold drafts and maintain comfortable indoor temperature. |
 |
Eliminate white light: Completely eradicate white light infiltration with a proper dock seal to ensure safety compliance. |
 |
Block moisture: Create a strong environmental separation between outdoor and indoor temperatures to prevent moisture build-up. |
The Benefits of a Proper Dock Shelter
A proper dock shelter yields numerous benefits, including:
- Energy loss prevention and increased energy savings.
- Security and protection against stolen goods or unauthorized entry.
- Quick return on investment.
- Creating a safer working environment for workers in the loading dock area.
- Maintaining or increasing operational efficiency through indoor comfort.
Check for Air Leaks or White Light
An inefficient dock shelter might not be the only cause of issues you are possibly facing—the performance of a dock seal/shelter directly relates to other products as well.
Check your loading dock in four key areas to determine if your dock seal or dock shelter needs to be replaced.
- Top of the trailer: Are your floors forming puddles or ice when it rains/snows? Seal the gap between the trailer top and your dock door to prevent slip and fall hazards.
- Side of the trailer: Are you noticing white light infiltration? If so, you need to modify or replace your dock seal or dock shelter.
- Dock leveler and trailer gap: Damaged goods or injuries to personnel are the biggest indicators of an uneven level between the trailer and the dock floor. Prevent injuries and damaged goods with a proper dock leveler.
- Corners of the door: Don’t forget to seal the corners of your doors, which are common areas where insects, dust and other contaminants enter the facility.
Note: Remember that performance dock bumpers and bumper projection also affect the efficiency and longevity of any dock seal or dock shelter.

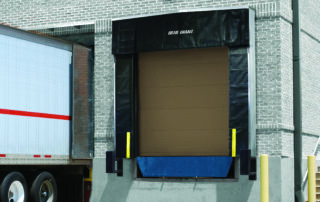

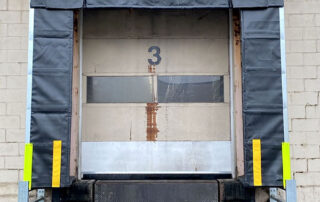

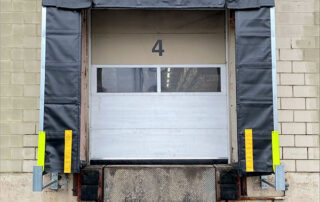

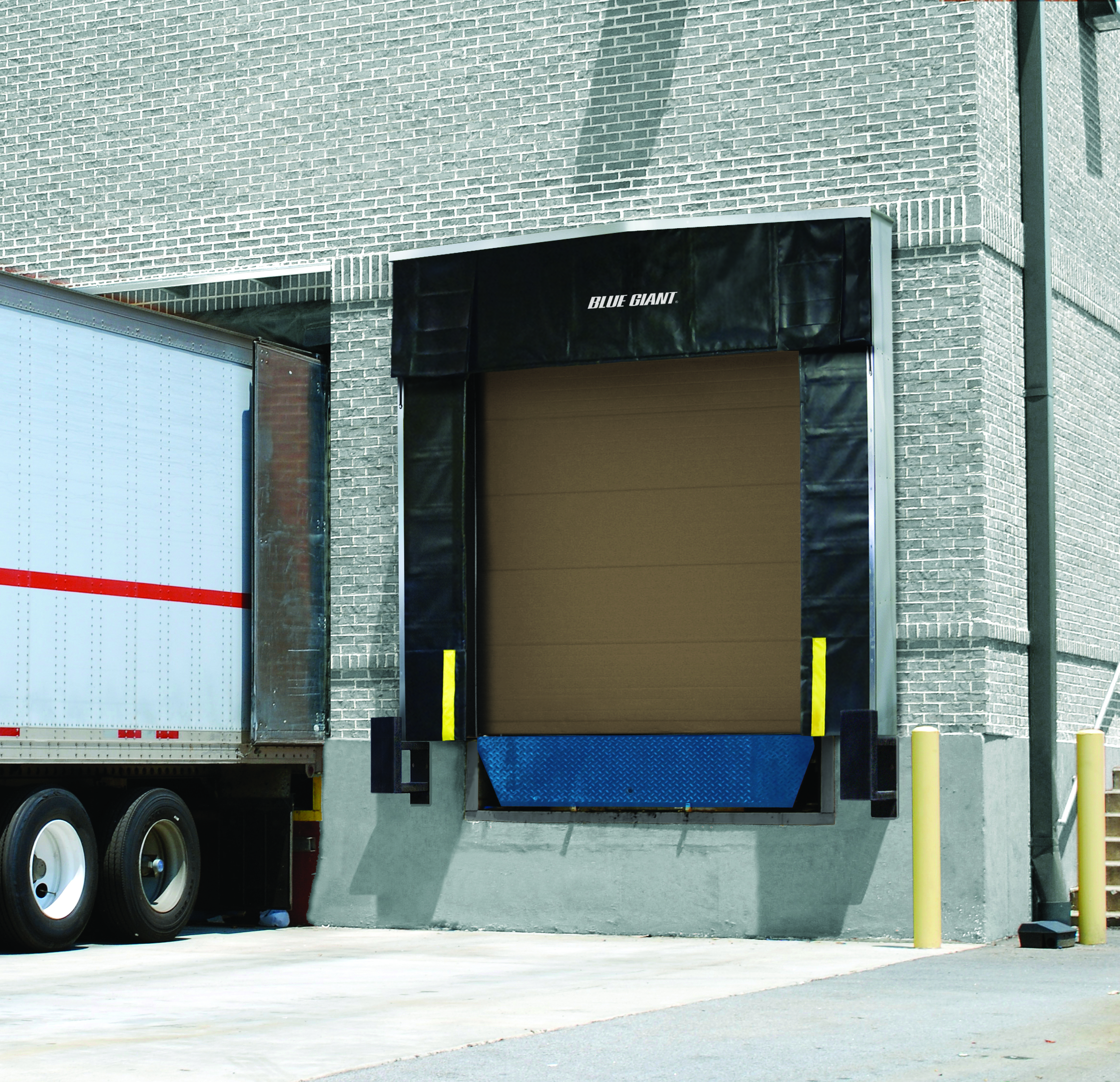

Photos
Customizations
- 22oz Hi-Tear vinyl, 40oz Hi-Tear vinyl, 50oz Hi-Tear vinyl, 16oz hi-performance hypalon or 40oz hi-performance hypalon fabric
- If using vinyl, it is available in black, blue, brown or green
- Painted steel frame
- Galvanized steel frame
- Additional drop in head curtain
- Additional width on side curtains
- Gussets in head curtain
- Reinforced edges on verticals
For optimum performance, pair this dock shelter with:
Warranty
• 1 year limited.
Specifications
| Door size | Up to 10.5' wide by 10.5' high |
| Side pads | Pressure-treated wood (can be upgrade to painted or galvanized steel) frame and side curtains with stiffeners and foam filled edge for a tight seal. |
| Safety guide stripes | Recommended option |
| Fabric | 22oz Hi-Tear vinyl 40oz Hi-Tear vinyl 50oz Hi-Tear vinyl 16oz hi-performance hypalon 40oz hi-performance hypalon |
| Mounting hardware | Galvanized |
