Hollow Fire Man Doors
Jump to: Information | Activation | Photos | Customers | Models | Compare | Customizations | Warranty
✓ A Network of Hardware Manufacturers:
Complement your overhead doors with our in-house stock of man doors, with access to over 100 commercial hardware lines.
✓ Compatibility:
Compatible with all leading providers of security and access control systems for both electrified and mechanical hardware.
Information
High-Performance Design
The Delta Series represents a pinnacle of high-performance, fire-rated doors designed to meet the rigorous demands of both interior and exterior applications. Crafted from rust-inhibiting galvanneal steel, these doors are engineered to endure up to 1,000,000 cycles, ensuring exceptional durability and reliability. This makes them an ideal choice for commercial settings where long-lasting performance is crucial. The Delta Series doors are not only robust but also versatile, offering a range of features that cater to various safety and environmental standards.
Fire and Hurricane Ratings
One of the standout features of the Delta Series is its impressive fire rating. These doors can withstand fire for up to 3 hours for both single and paired configurations, providing critical protection in emergencies. Additionally, the doors are hurricane-rated, capable of withstanding pressures up to +/- 90 PSF for singles and pairs. This makes them suitable for regions prone to severe weather conditions, ensuring that buildings remain secure and occupants safe during extreme events.
Thermal Performance
Thermal performance is another key aspect of the Delta Series. With an R-Value of 2.08 and a U-Value of 0.48, these doors offer excellent insulation properties, contributing to energy efficiency and comfort within buildings. This thermal efficiency helps in maintaining a stable indoor environment, reducing the need for excessive heating or cooling, and thereby lowering energy costs. Furthermore, the Delta Series doors are compatible with all leading security and access control systems, making them a seamless addition to modern security infrastructures.
Environmentally Responsible
Sustainability is at the core of the Delta Series design. The doors are made from environmentally responsible materials, aligning with green building practices and contributing to LEED credits. This commitment to sustainability ensures that the Delta Series not only meets current environmental standards but also supports the broader goal of reducing the carbon footprint of buildings. By choosing the Delta Series, businesses can enhance their sustainability credentials while benefiting from high-quality, reliable door solutions.
Photos

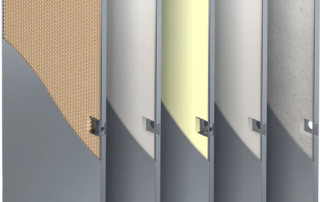

Models
|

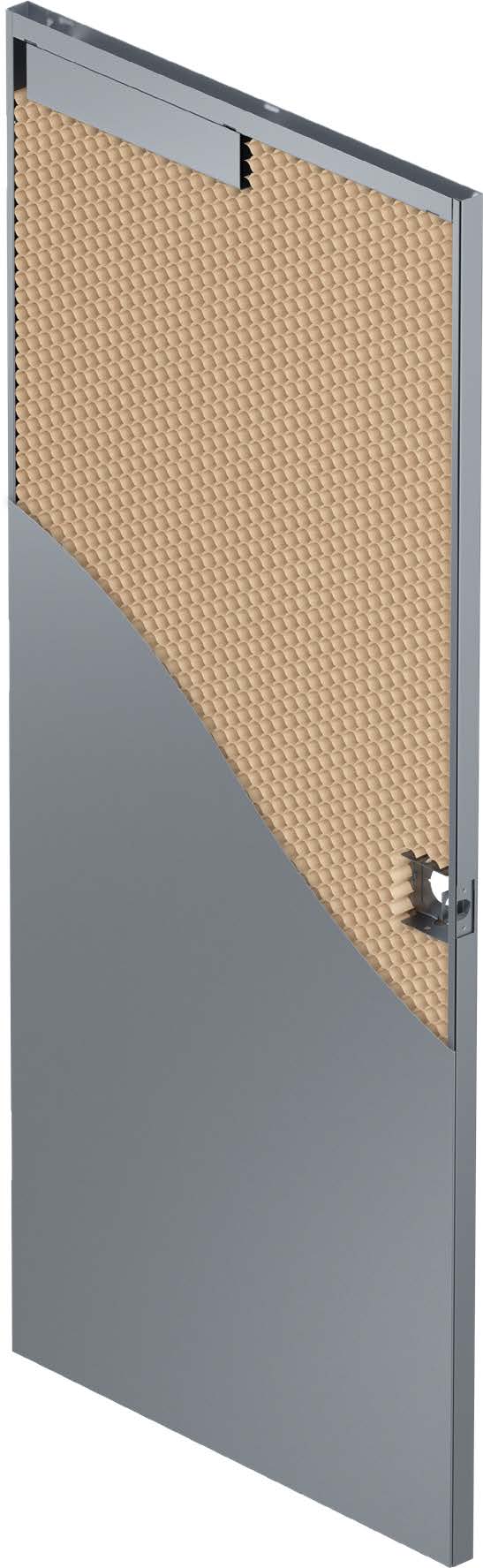

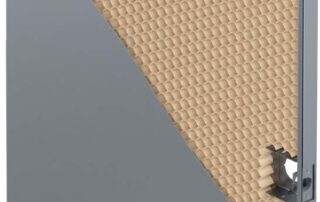

DeltaThe standard Delta model is a premium non-insulated steel door made from rust-inhibiting galvanneal steel. It is tested to 1,000,000 cycles and comes with a 10-year warranty. This model features a fully bonded 3/4” HexCor, beveled edges, and 7-gauge hinge reinforcing. It is fire-rated up to 3 hours for singles and pairs and hurricane-rated up to +/- 90 psf. The thermal value is R-Value 2.08 and U-Value 0.48. |
|

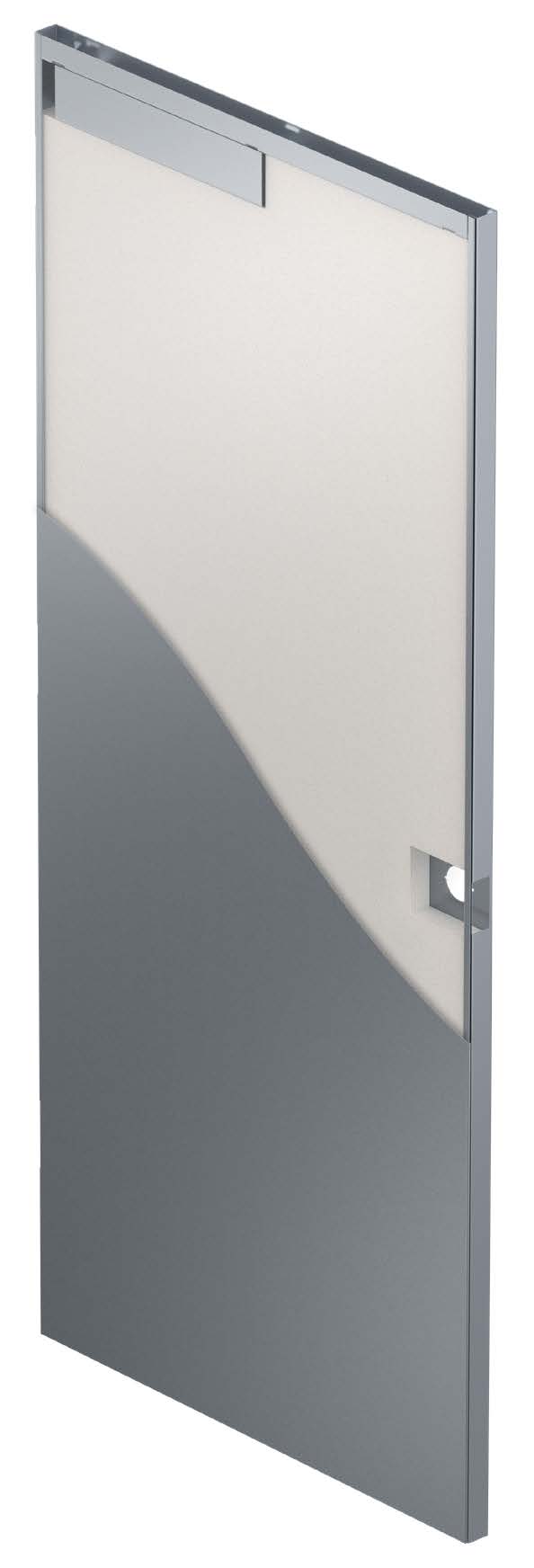

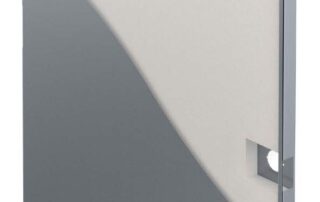

Delta R7The Delta R7 model offers enhanced thermal performance with an R-Value of 7.0. It is designed for applications requiring better insulation properties. This model maintains the same fire and hurricane ratings as the standard Delta model but provides improved energy efficiency. |
|

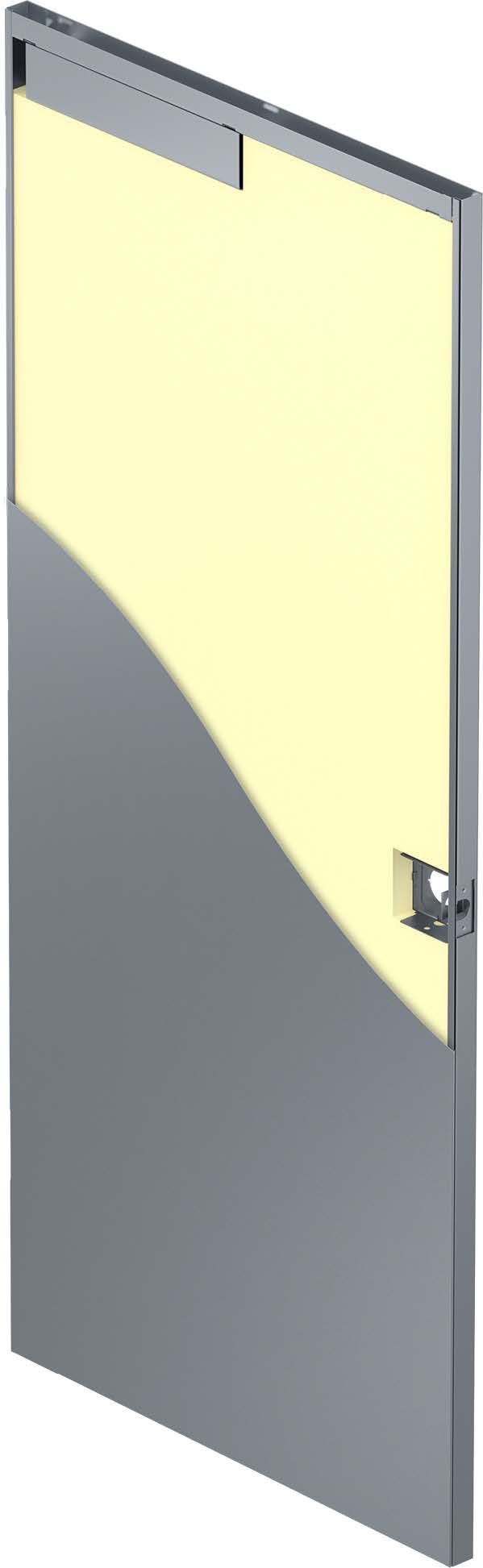

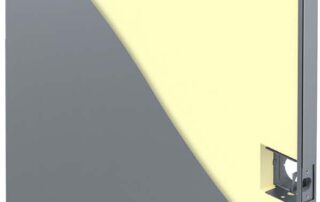

Delta R11The Delta R11 model further enhances thermal performance with an R-Value of 11.0. It is ideal for environments where superior insulation is critical. Like the other models, it is fire-rated up to 3 hours and hurricane-rated up to +/- 90 psf, ensuring safety and durability. |
|

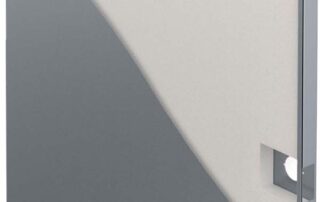

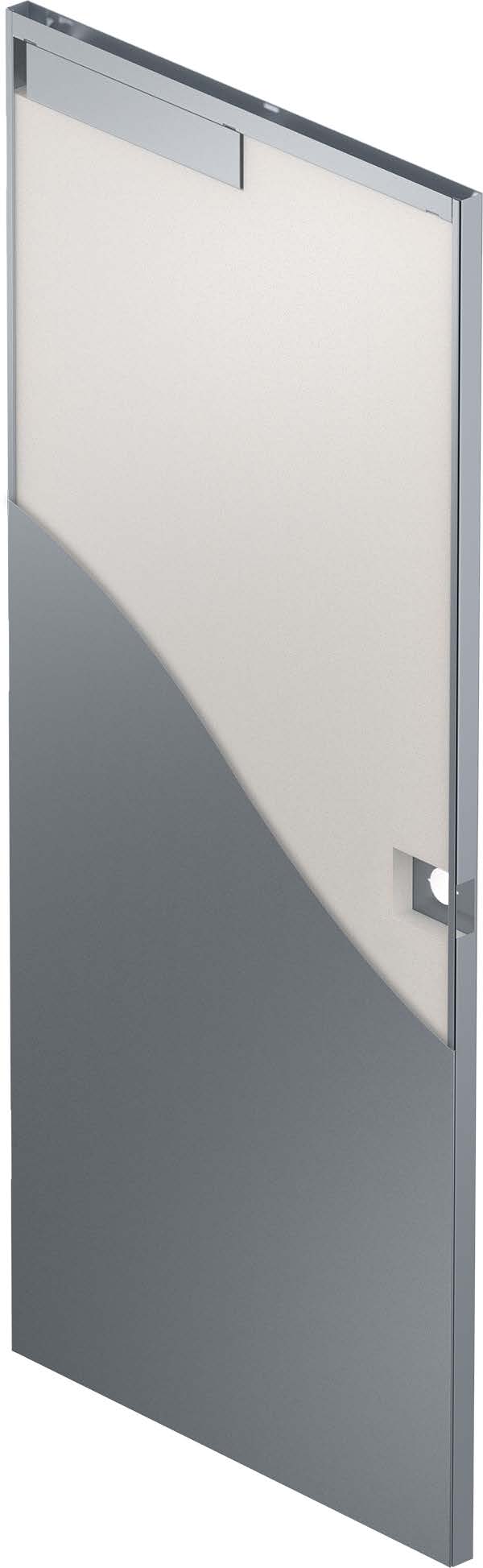

Delta HDThe Delta HD (Heavy Duty) model is built for high-traffic areas and demanding environments. It features additional reinforcements and a more robust construction to withstand heavy use. This model is also fire-rated up to 3 hours and hurricane-rated up to +/- 90 psf, making it suitable for the most challenging applications. |
|

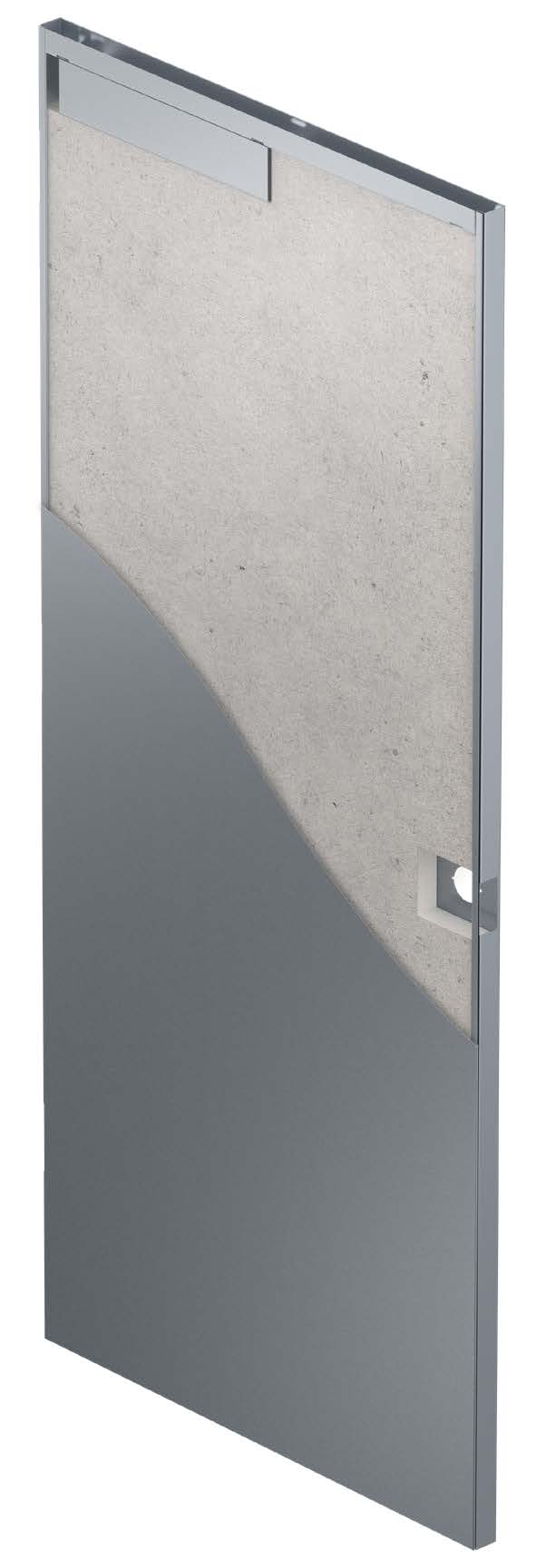

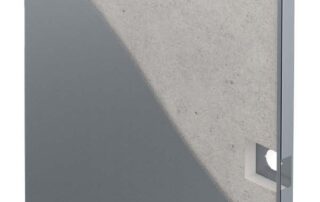

Delta TRThe Delta TR (Temperature-Rise) model is designed to provide resistance against heat transfer during a fire. It features a specialty core that limits the temperature rise on the non-fire side of the door, enhancing safety in fire situations. This model also maintains the same fire and hurricane ratings as the other Delta models. |
Model Comparison Chart
| Delta | Delta R7 | Delta R11 | Delta HD | Delta TR | |
| Application | Premium non-insulated steel doors | Premium insulated steel doors | Outstanding thermal performance and the highest R-Value available | Heavy-duty design for demanding applications | Enhanced fire protection for critical life safety requirements |
| Fire Rated | Up to 3 hours. | Up to 3 hours. | Up to 90 minutes. | Up to 3 hours. | Up to 3 hours. 450˚F / 250˚C temperature rise |
| Hurricane Rated | Up to +/- 90 psf. | Up to +/- 75 psf. | Up to +/- 90 psf. | Up to +/- 90 psf. | Up to +/- 90 psf. | 450˚F / 250˚C temperature rise
| Thermal Value | R Value = 2.08 U Value = 0.48 |
R Value = 7.14 U Value = 0.14 |
R Value = 11.11 U Value = 0.09 |
R Value = 2.08-11.11 U Value = 0.48-0.09 |
R Value = 2.33 U Value = 0.43 |
| Core | Fully bonded 3/4” HexCor | Fully bonded rigid polystyrene | Fully bonded rigid polystyrene | Fully bonded rigid polystyrene | Temperature rise rated core U Value = 0.43 |
| Power Ready | |||||
| Closure | |||||
| Construction | 7-Gauge hinge reinforcing 18-Gauge A60 galvanneal |
||||
| Finish | |||||
Customizations
- Windlock (WL) system: Provides maximum wind resistance for this model. As wind blows, the curtain’s windlocks (WL) engage with the door guide for a strong interlocking grip. This grip keeps the curtain securely in the guide.
- Colours: 30 standard colours to choose from.
- Jamb Brush Seal: Weather strip fabricated from black polyproplene filament brush in a mill finish aluminum extrusion. Attaches to side jamb.
- PassportTM Locking Solution: The Passport Lock is a keyless locking system using WAN (Wide Area Network) to lock and unlock doors. A Direct Key Mobile App enables the user to lock and unlock the door using their mobile phone.
- Exterior Latch: Cast zinc alloy with black nickel finish. The latch slide has magnetic properties for use with security system switches. Designed to accommodate two padlocks up to 7/16” shank. Accommodates Trac-Rite’s optional SpaceGuard cylinder lock, which features an easy over-lock system. The lock does not penetrate the door.
- Insulation (Factory Installed): Double-bubble foil reflective insulation with an extra layer of polyurethane coating on the front side for durability.
- Control panel: Optional NEMA 4, 230 v / 1-phase – or – HFCB NEMA 3 Smart Start™ NXT with 230 v only / 1-phase.
- SpaceGuard Cylinder Lock: Removable security cylinder features easy over-lock capability and protection from bolt cutters. Each cylinder lock comes with three coded keys.
- Interior Lock: 12-gauge, zinc-coated steel slide bolt engages a lock strike attached to the side guide. Two locks per door fasten to the bottom assembly and are suitable for padlocking.
- Header Draft Stop (Field Installed): 4" wide, consists of a 1" rigid PVC strip and 3” flexible TPE section. Attaches to the header.
- Hood: This covers the door nest and chain hoist. (Will not cover motor operator.) Available in Iced White only.
Warranty
- 10-year limited.
