Roll-Up Sheet Doors

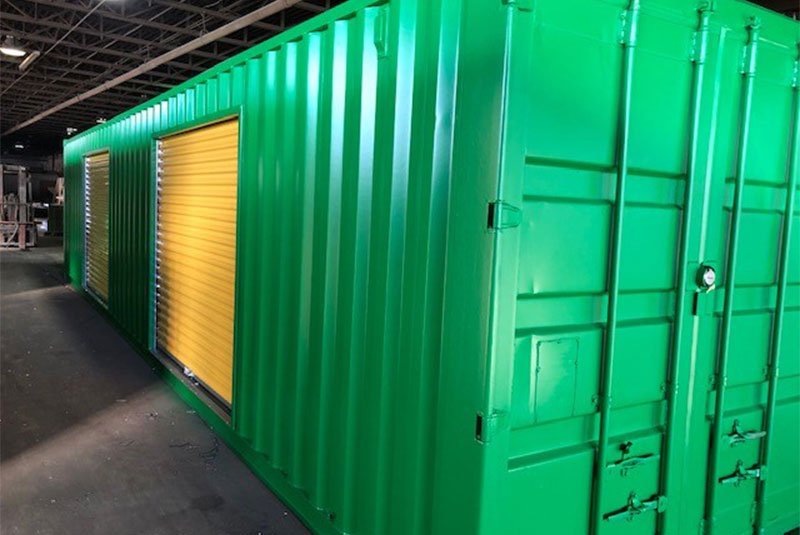

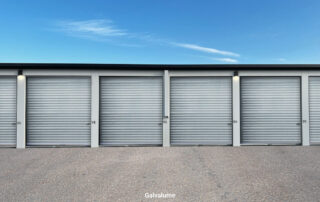

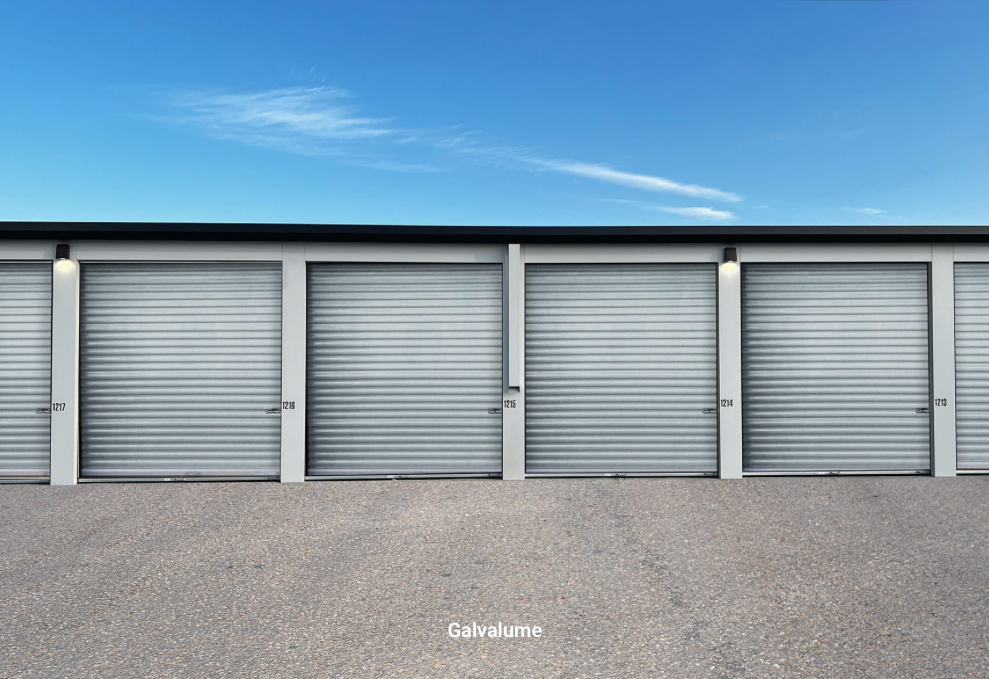

Ideal for metal fabricated buildings, self-storage units, warehouse docks, etc.
✓ Custom Sizes & Colours: Custom sizes and 30 standard colours to perfectly match your facility’s look.
✓ Wind Load Ratings: Florida Building and Texas Department of Insurance Code Approved to hold up to hurricane forces. 20% higher wind load rating than the competition.
✓ Canadian Content: Substantial Canadian-content in each of these doors.
✓ Easy-to-Use Bottom Bar: A sturdy galvalume bottom assembly, Seal-Rite bulb and blade astragal, zinc-plated handle and plastic pull rope for easy operation.
✓ Easy-to-Use Operator: An optional direct drive chain hoist is available to make operating easier.
✓ Fast Lead Times: Orders leave the factory within 3 weeks.
Information
We carry a wide range of roll-up sheet doors for residential, self-storage, commercial and wide-opening applications. The continuous curtain of solid steel is durable, attractive, and available in a variety of colors.

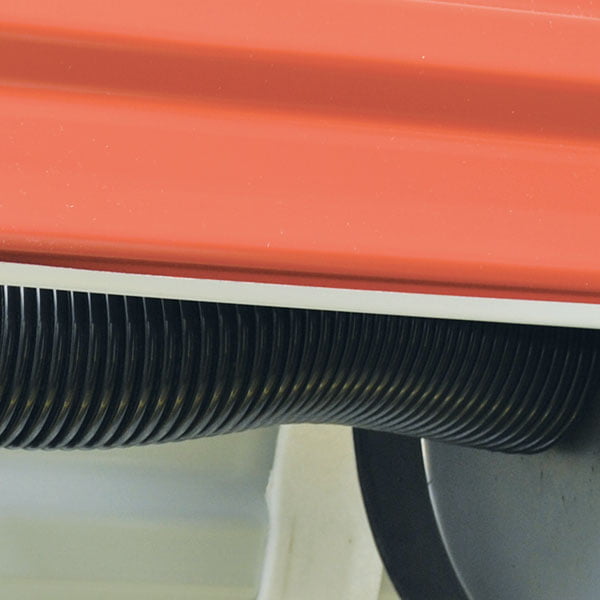

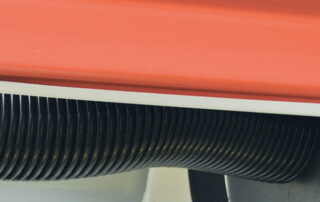

Helical Torsion Springs
No maintenance EP3 helical torsion high-performance springs are coated for increased life. Felt tape located at each spiral drum allows the door to operate and coil with ease.

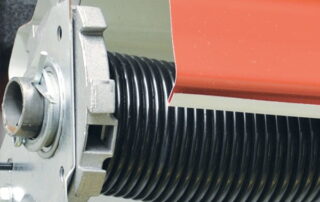

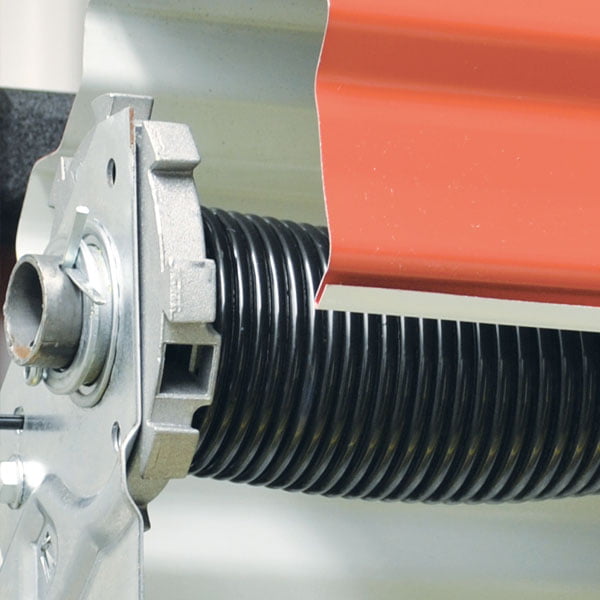

Zinc Coated Tensioner

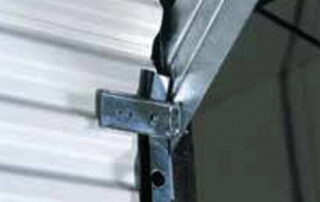

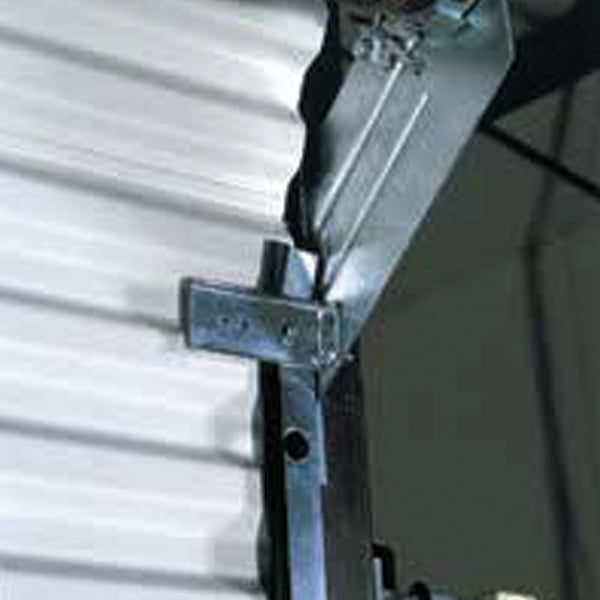

Door Stops
12-gauge, zinc-coated door stops are mounted to brackets for increased strength. 18-gauge, zinc-coated steel guides with polypropylene runners allow doors to glide smoothly.

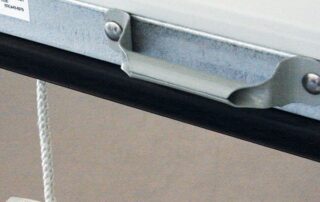

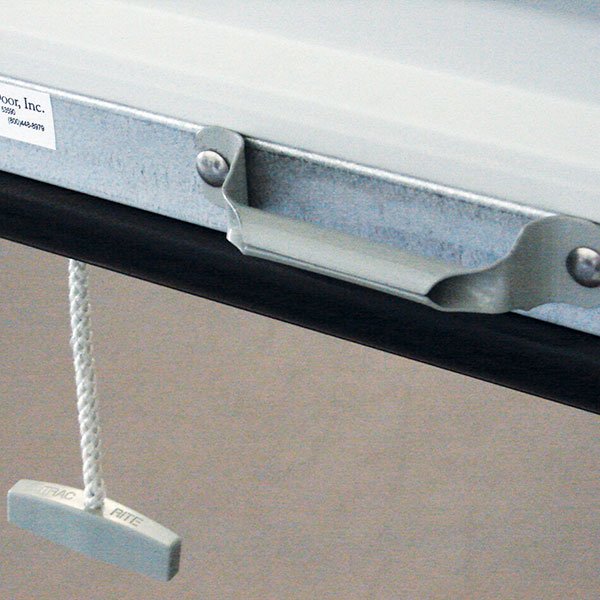

Bottom Assembly
The sturdy galvalume bottom assembly is fitted with the Seal-Rite bulb and blade astragal for a protective weather seal. Zinc-plated exterior handle and molded plastic pull rope handle provide effortless opening and closing of the door.

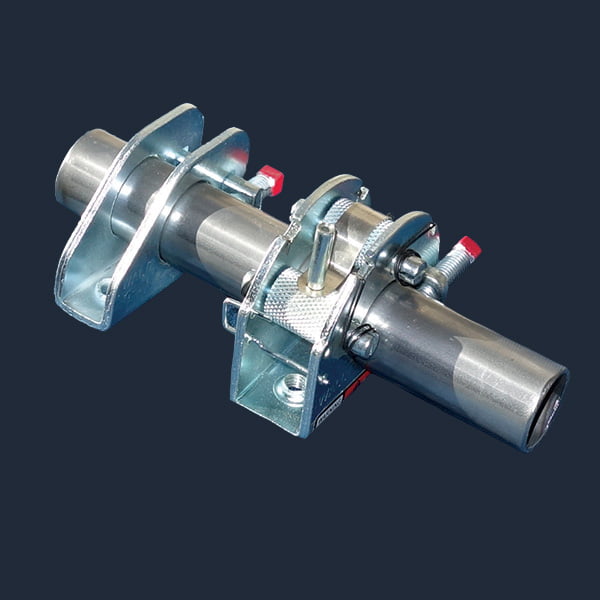

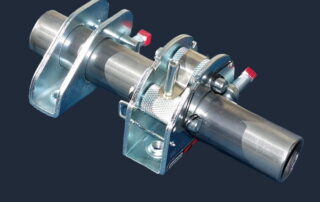

Door Tensioner
The saddle with a tensioner device makes adjusting the door tension easier, safer, and quicker than clamp and bracket designs. For models 977 and 988 only.

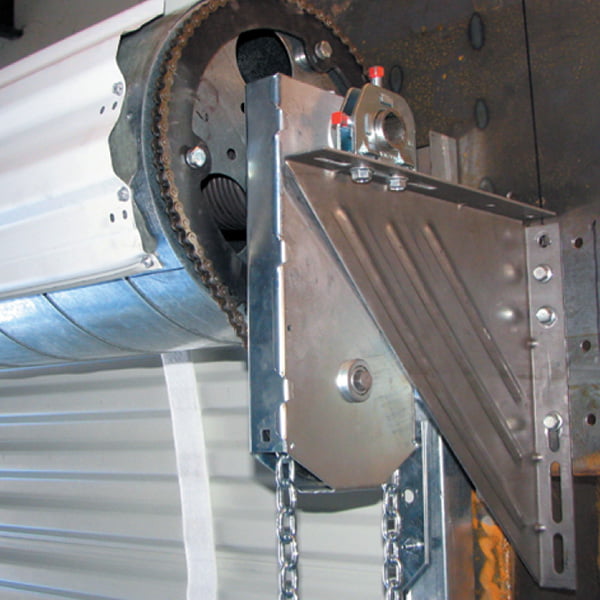

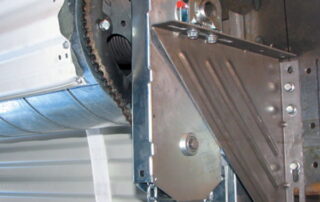

Chain Hoist
Chain hoist mounts directly to the axle for easy installation. 8:1 reduced drive allows for smooth operation. For models 977 and 988 only.

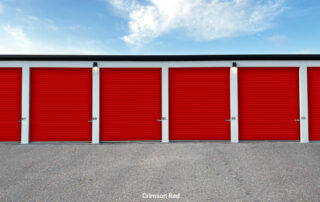

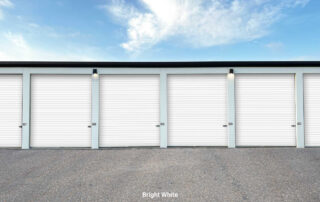

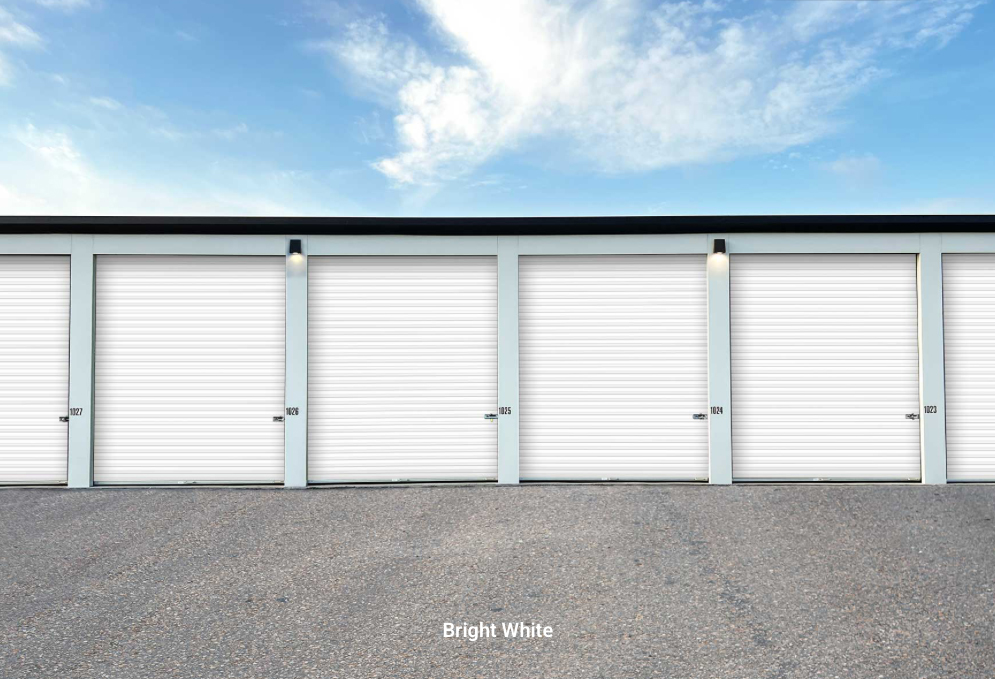

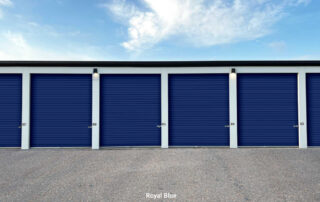

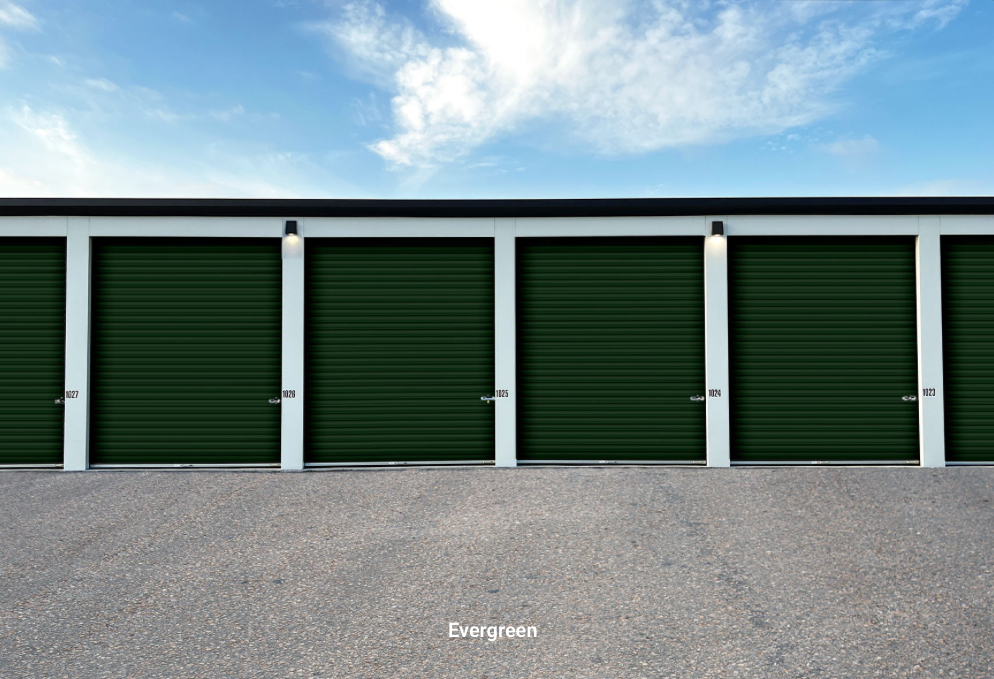

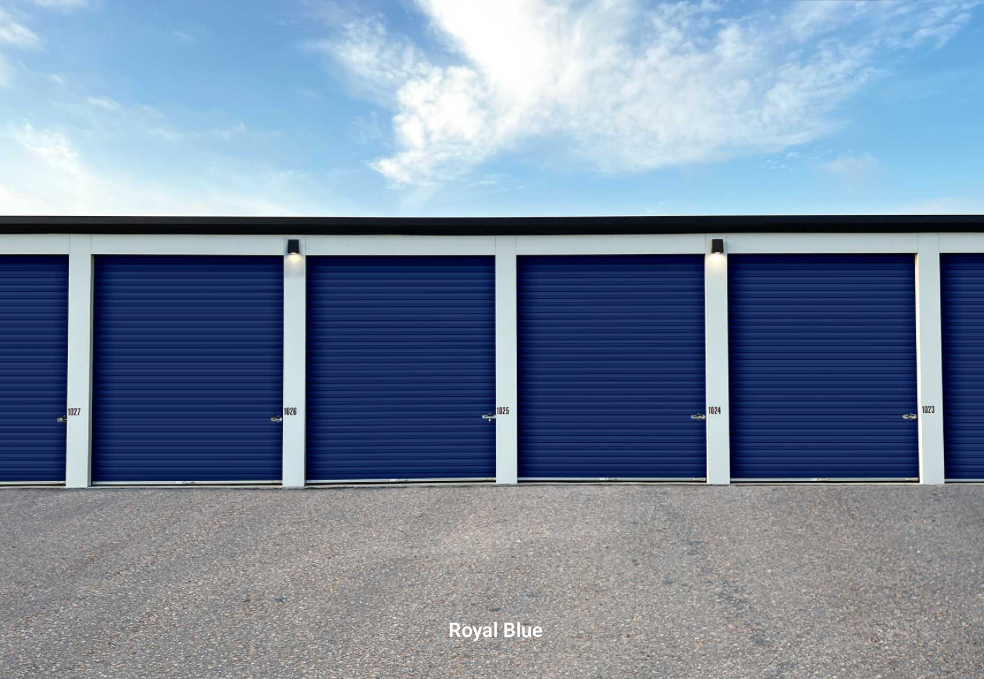

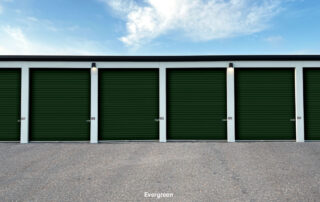

30 Colours Available
30 standard pre-finished colours to choose from to match your aesthetic.
Photos
Models
|

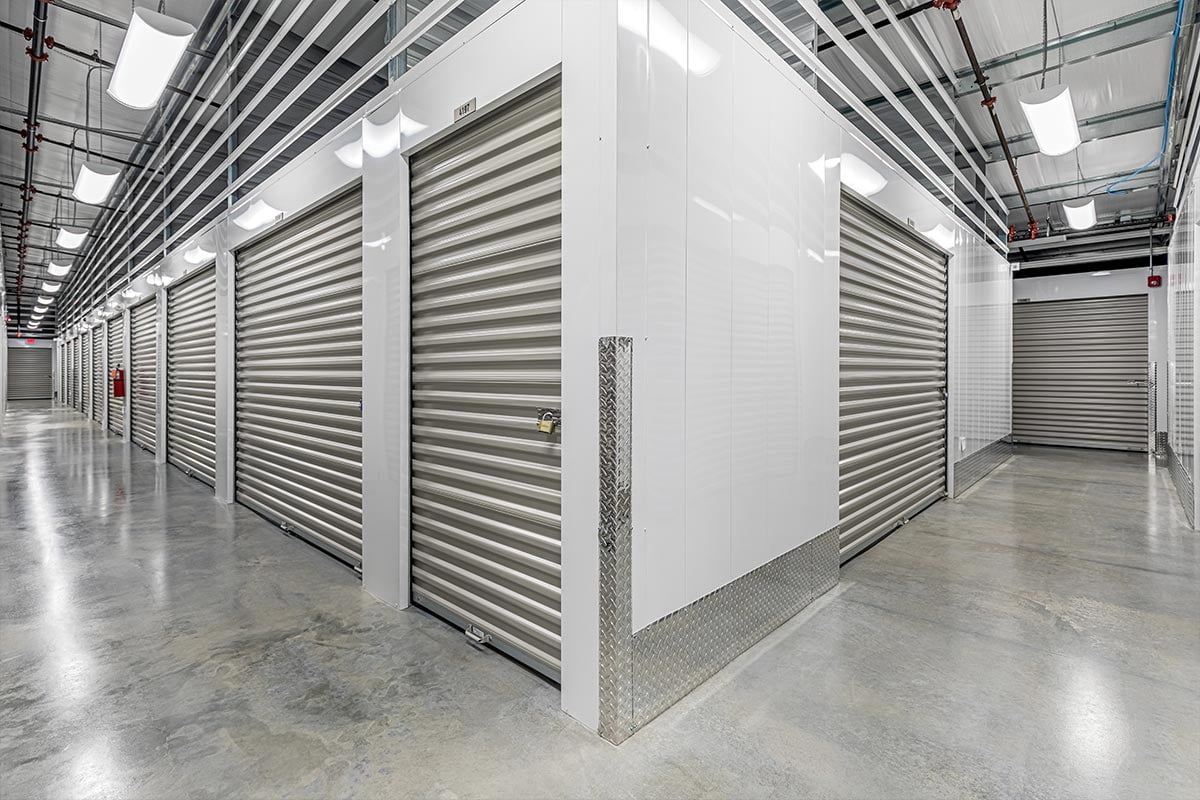

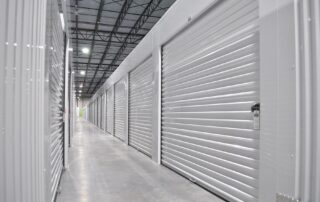

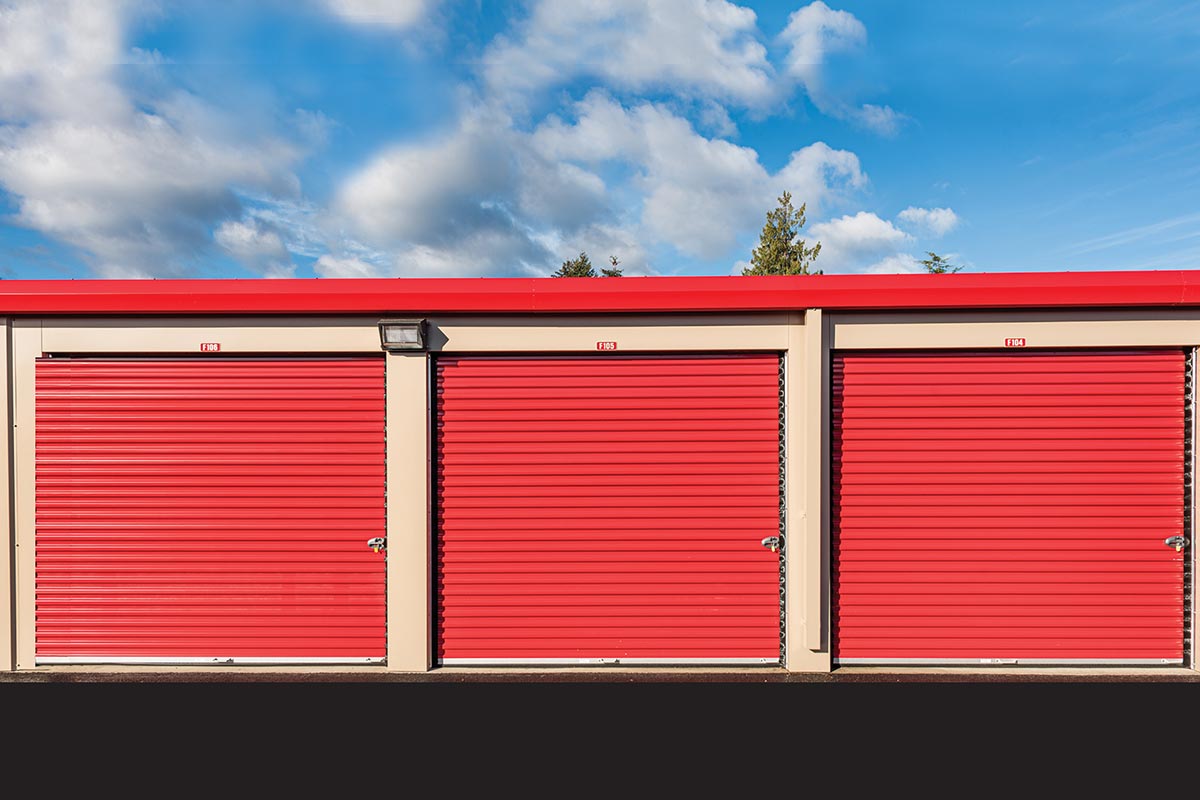

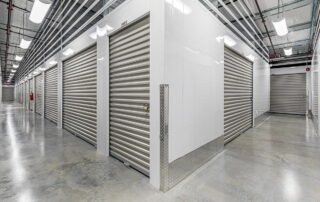

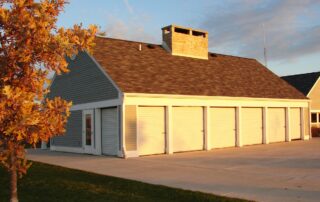

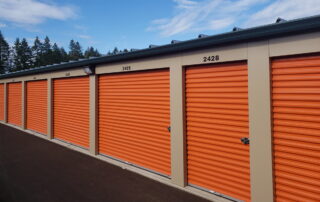

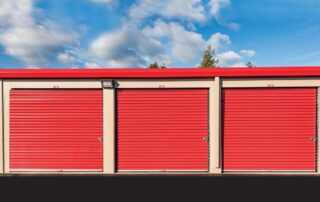

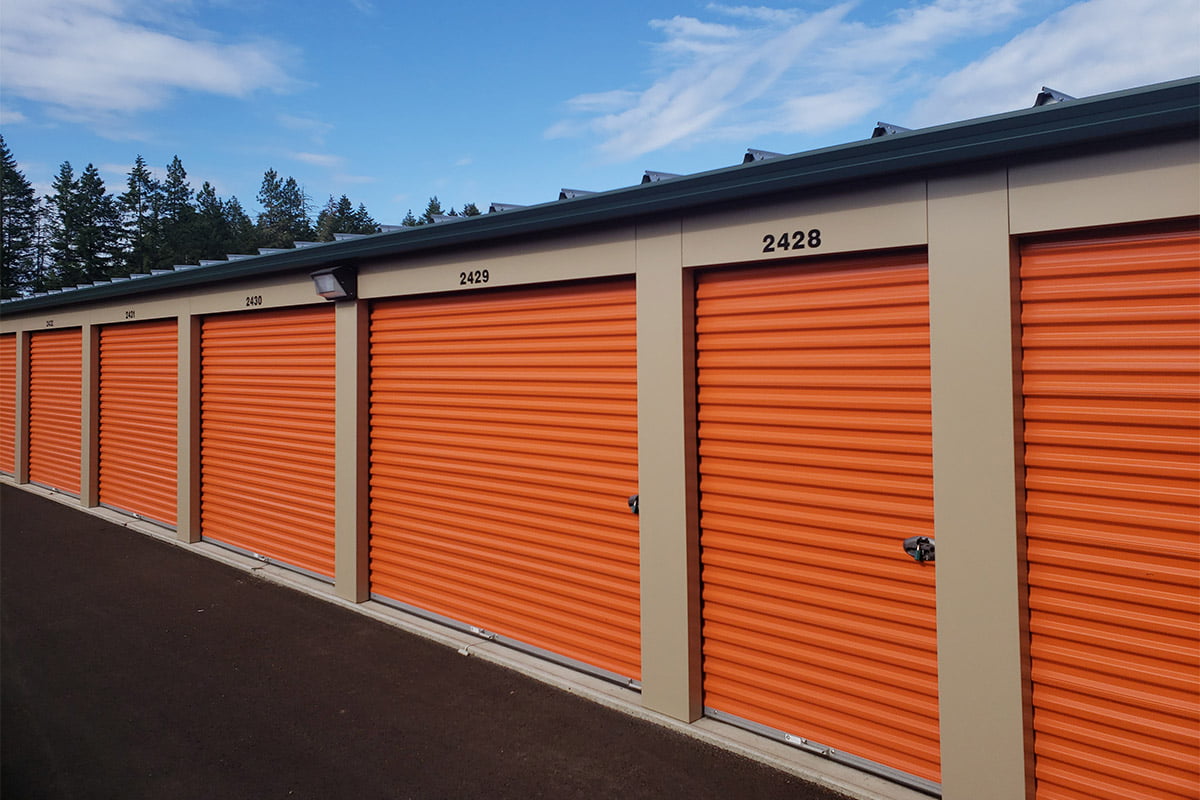

944Ideal for residential, self-storage, and light-duty commercial applications. It offers custom sizes ranging from 2'8" to 12'0" in width and 2'10" to 12'0" in height. This model features helical torsion springs for increased lifespan and maintenance-free operation, a windlock system for maximum wind resistance, and smooth operation with felt tape and zinc-coated steel guides. |
|

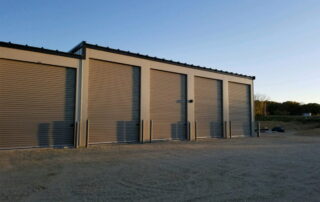

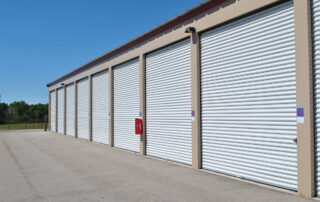

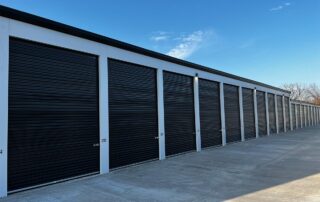

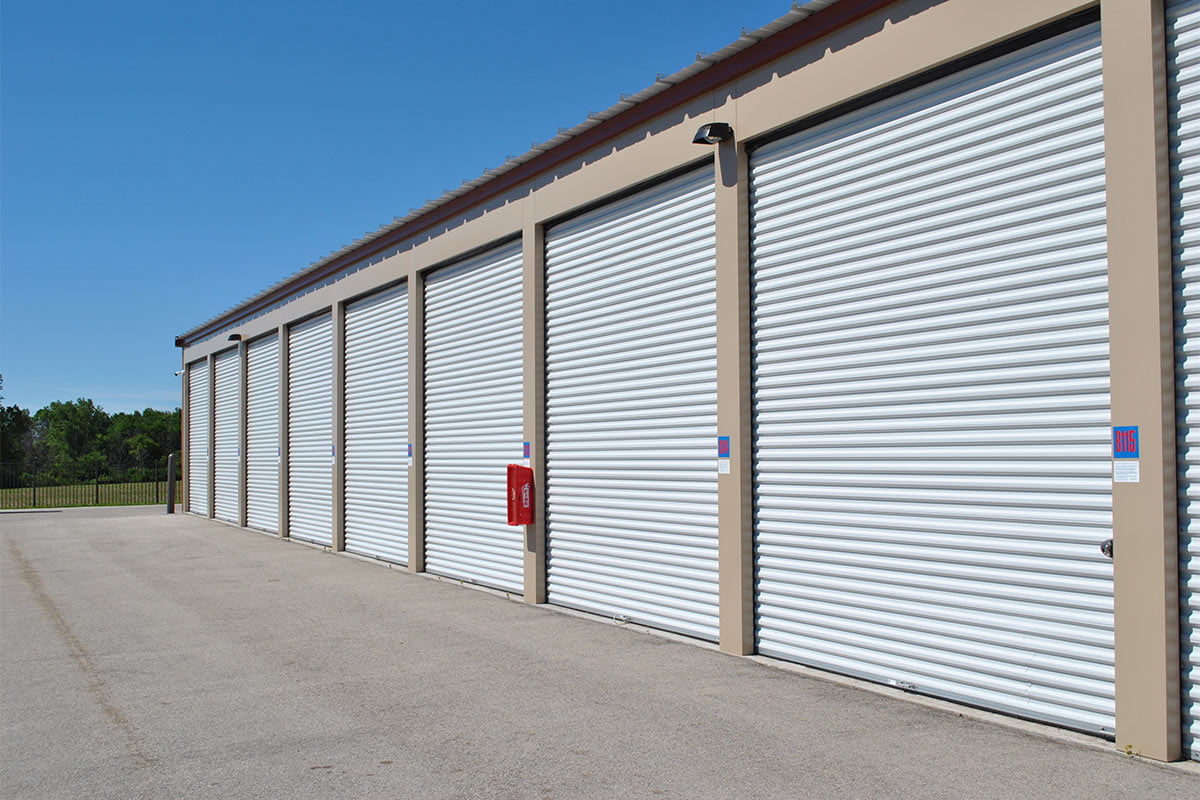

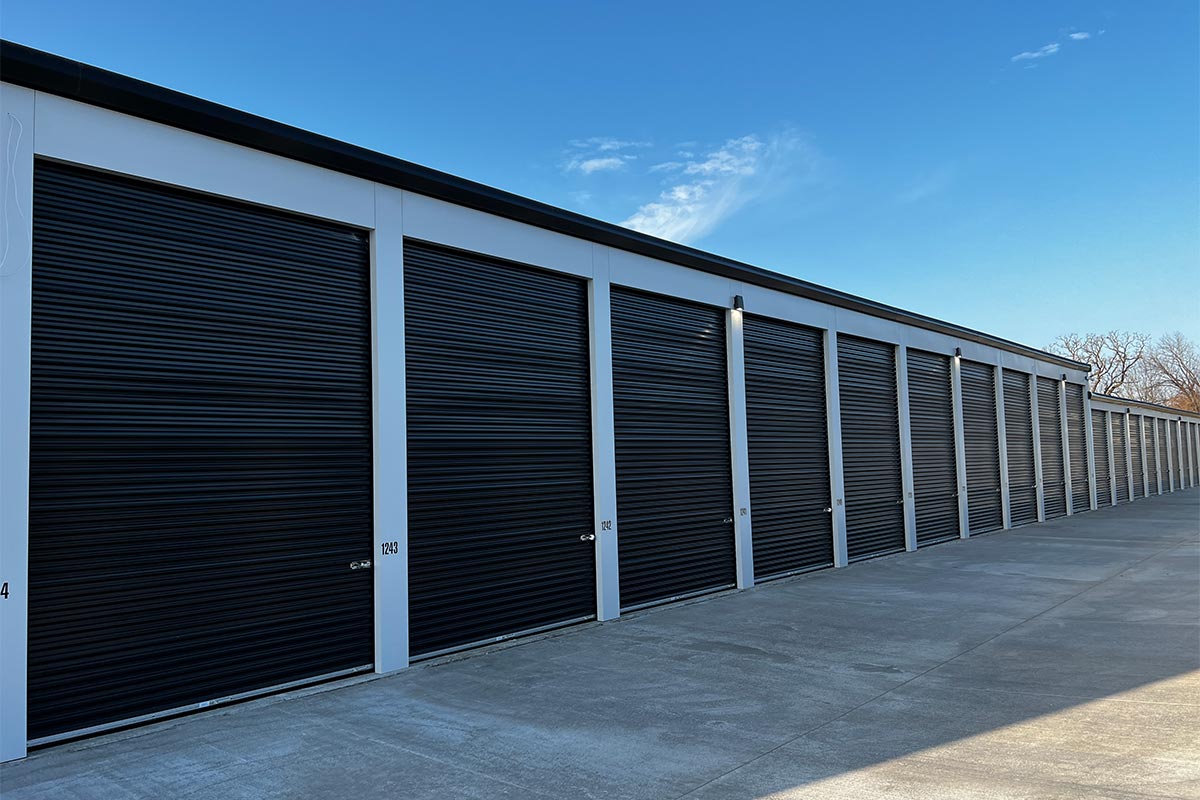

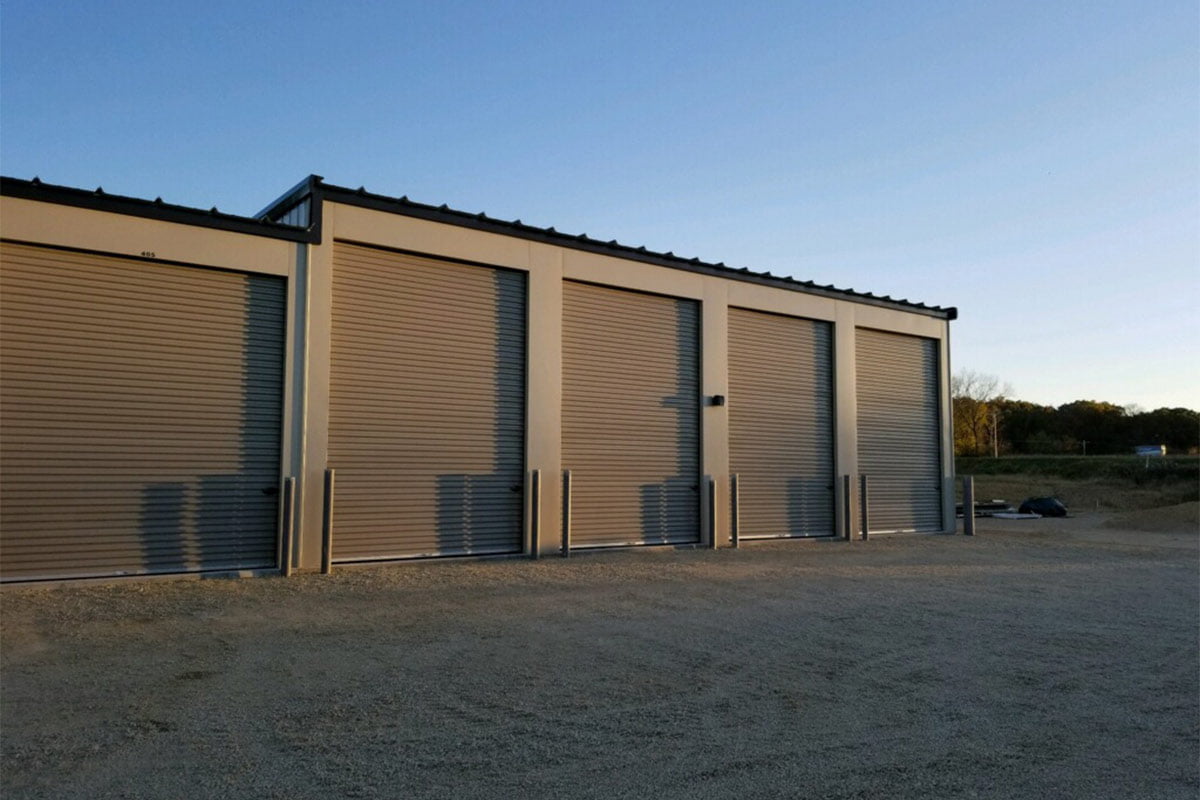

977suitable for larger self-storage projects, such as boat and RV storage, as well as light-duty commercial uses. It comes in custom sizes from 7'0" to 12'0" in width and 8'0" to 16'0" in height. This model includes a dead axle design with a torque-tube assembly for smooth operation, a chain hoist for easy installation and operation, and a high wind resistance windlock system. |
|

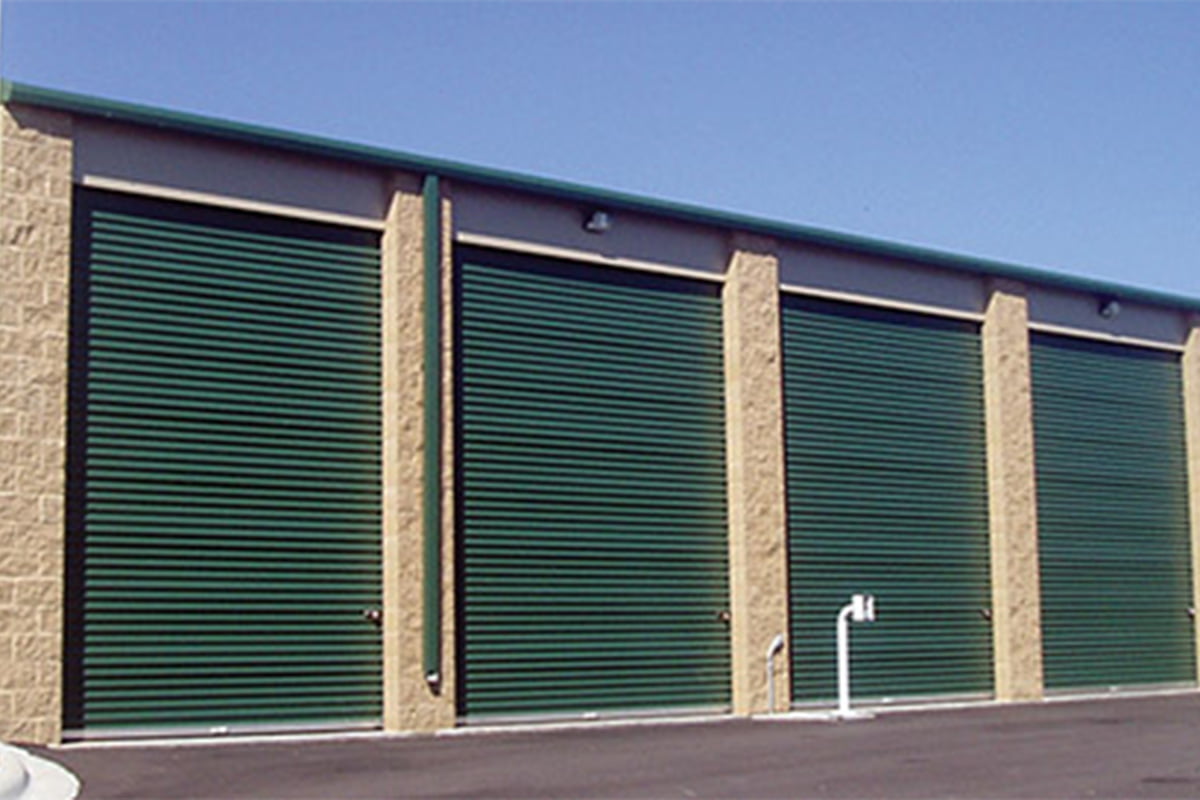

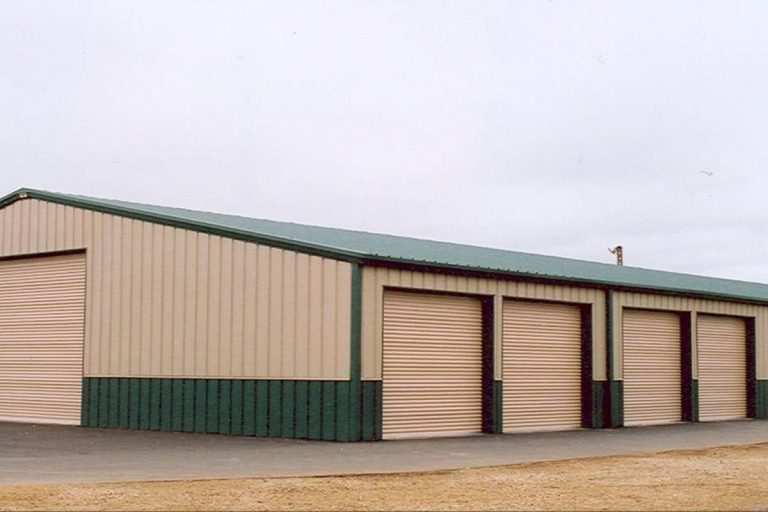

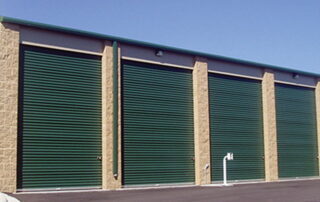

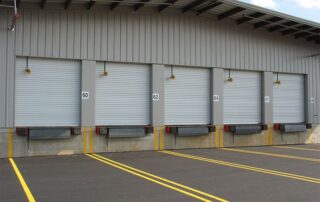

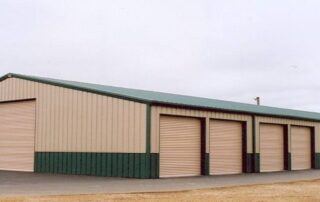

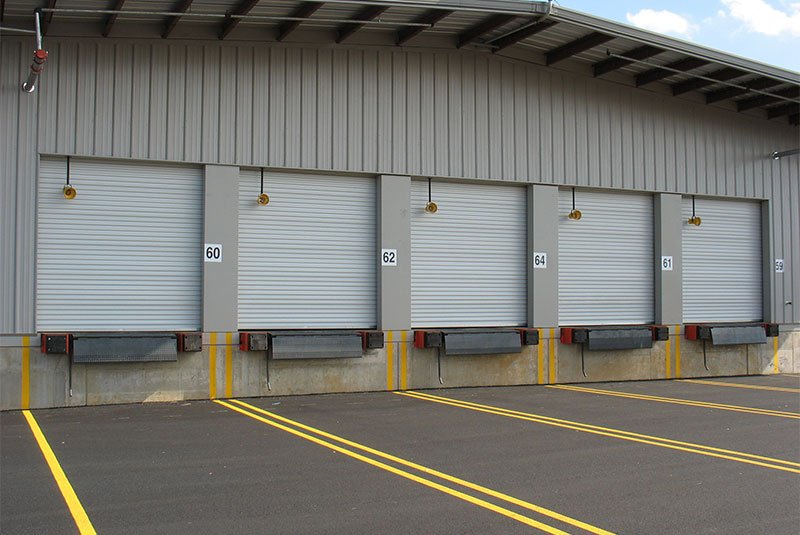

988Designed for commercial uses, including shipping docks, warehouses, car washes, and auto body shops. It offers custom sizes from 10'0" to 18'0" in width and 8'0" to 18'0" in height. This heavy-duty model features a rigid-rib steel curtain, a dead axle design with a torque-tube assembly, and a high wind resistance windlock system. |
Model Comparison Chart
| 944 | 977 | 988 | ||
| Application | Residential and self-storage. | Large self-storage projects like boat and RV storage, and light-duty commercial. | Commercial uses such as shipping docks, warehouses, car washes, and auto body shops. | |
| Sizes | Custom sizes from 2'8" to 12'0" widths and 2'10" to 12'0" heights. | Custom sizes from 7'0" to 12'0" widths and 8'0" to 16'0" heights. | Custom sizes from 10'0" to 18'0" widths and 8'0" to 18'0" heights. | |
| Design Type | Live axle design where door axle rotates in bracket bearing during operation. | |||
| Drums | Stamped, continuously welded at the hub. 9-5/8″ diameter spiral x 1-1/4″ wide. 18-gauge, galvanized steel. Two drums with doors up to 5′ wide, three drums with doors over 5′ wide. Prevents panels from bowing. | |||
| EP3 Springs | Helical torsion, oil tempered, and coated to halt corrosion. One spring for doors 5′ wide and smaller, two springs for doors wider than 5′. | |||
| Axle | ||||
| Curtain | Roll-formed sections, factory-seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2″ felt tape located at each drum. | |||
| Bottom Assembly | ||||
| Brackets | 14-gauge, cold-formed, zinc-coated steel. Grease-packed ball bearings are factory installed in the bracket. | |||
| Latches | Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16″ shank. Accommodates the optional SpaceGuard cylinder lock for easy over-locking. |
|||
| Door Stop | ||||
| Operation | Exterior Handle Zinc-plated outside handle secured to bottom assembly with stainless steel bolts. Two handles for doors 8′ and wider. Pull Rope Handle Molded plastic rope handle with long-lasting rope. |
8:1 reduced-drive. Mounts directly to the axle on either the left or right side. |
||
Customizations
- Windlock (WL) system: Provides maximum wind resistance for this model. As wind blows, the curtain’s windlocks (WL) engage with the door guide for a strong interlocking grip. This grip keeps the curtain securely in the guide.
- Colours: 30 standard colours to choose from.
- Jamb Brush Seal: Weather strip fabricated from black polyproplene filament brush in a mill finish aluminum extrusion. Attaches to side jamb.
- PassportTM Locking Solution: The Passport Lock is a keyless locking system using WAN (Wide Area Network) to lock and unlock doors. A Direct Key Mobile App enables the user to lock and unlock the door using their mobile phone.
- Exterior Latch: Cast zinc alloy with black nickel finish. The latch slide has magnetic properties for use with security system switches. Designed to accommodate two padlocks up to 7/16” shank. Accommodates Trac-Rite’s optional SpaceGuard cylinder lock, which features an easy over-lock system. The lock does not penetrate the door.
- Insulation (Factory Installed): Double-bubble foil reflective insulation with an extra layer of polyurethane coating on the front side for durability.
- Control panel: Optional NEMA 4, 230 v / 1-phase – or – HFCB NEMA 3 Smart Start™ NXT with 230 v only / 1-phase.
- SpaceGuard Cylinder Lock: Removable security cylinder features easy over-lock capability and protection from bolt cutters. Each cylinder lock comes with three coded keys.
- Interior Lock: 12-gauge, zinc-coated steel slide bolt engages a lock strike attached to the side guide. Two locks per door fasten to the bottom assembly and are suitable for padlocking.
- Header Draft Stop (Field Installed): 4" wide, consists of a 1" rigid PVC strip and 3” flexible TPE section. Attaches to the header.
- Hood: This covers the door nest and chain hoist. (Will not cover motor operator.) Available in Iced White only.
