• High-speed operation: With a door opening speed of up to 18″/second in the powered model, the 507 door provides unmatched productivity.
• Ultra clean: Constructed from seamless high strength molded fiberglass with full perimeter 16-gauge stainless steel edge capping and “down and in” track system, this seamless fiberglass door withstands the toughest wash down conditions.
• Virtually maintenance-free: The 507 vertical rise door system requires no lubrication and was designed to eliminate any metal-to-metal contact on track surfaces.
• Impactability: With the only 16-gauge stainless steel edge capping and full perimeter steel sub frame in the industry, the 507’s panels provide exceptional strength in the areas most susceptible to impact.
Information
Setting a new cold storage door standard with a single piece fiberglass vertical rise door
The Enviro 507 single piece fiberglass vertical rise door provides an exceptional solution to these new challenges. Available in both powered and manual models, this door system is designed, engineered and precision manufactured to offer the ultimate in clean panel construction. Superior strength, uncompromising quality, solid reliability and unmatched value define this fiberglass vertical rise door. Designed from the ground up to far exceed the offerings of other door manufacturers, yet priced to meet demanding budget constraints, the 507 vertical rise door sets a new standard for the next generation of cold storage door solutions.
Highlights of the 507 vertical rise door
With a door opening speed of up to 18″ per second and the only 16-gauge stainless steel edge capping and full perimeter steel sub frame in the industry, the 507 fiberglass door provides unmatched productivity, material handling efficiency and energy savings. Each seamless high strength molded fiberglass panel withstands even the toughest washdown conditions. Seamless polyester gel coat finish is completely repairable, non-porous, non-shedding, and has a non-absorptive surface. To eliminate any chance of fibrous contamination, this fiberglass door can also be constructed without using any wood.
Enviro’s full perimeter non-marking gasket system and “down and in” track system for the 507 door provides superior sealing without compromising gasket longevity. Utilizing a complete polyester gel coat surface, Enviro fiberglass panels are strong, flexible and completely repairable if impacted.
Virtually maintenance-free by design
Designed for high use continuous cycle operation, every aspect of the 507 fiberglass door was engineered to eliminate maintenance and downtime. The entire door system intentionally uses no high maintenance torsion springs and no lubrication to eliminate any metal-to-metal contact on track surfaces. Seamless panel construction, complete gasket release travel design, no wood panel, simple quick connect heat, and fully adjustable gasket system, virtually eliminate maintenance altogether.
Activation Method
The most important aspect of any door project is deciding on your activation method to:
✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door
✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy
Motion, presence and safety all in one. These sensors can be set to open for only incoming pedestrian or forklift traffic. Speed up workflows by installing or retrofitting dock, industrial, pedestrian and entrance doors with automatic motion sensors. View »
Prevent cross-contamination by never having to touch a door to open it. Install or retrofit dock, industrial and pedestrian doors with touchless wave sensors. View »

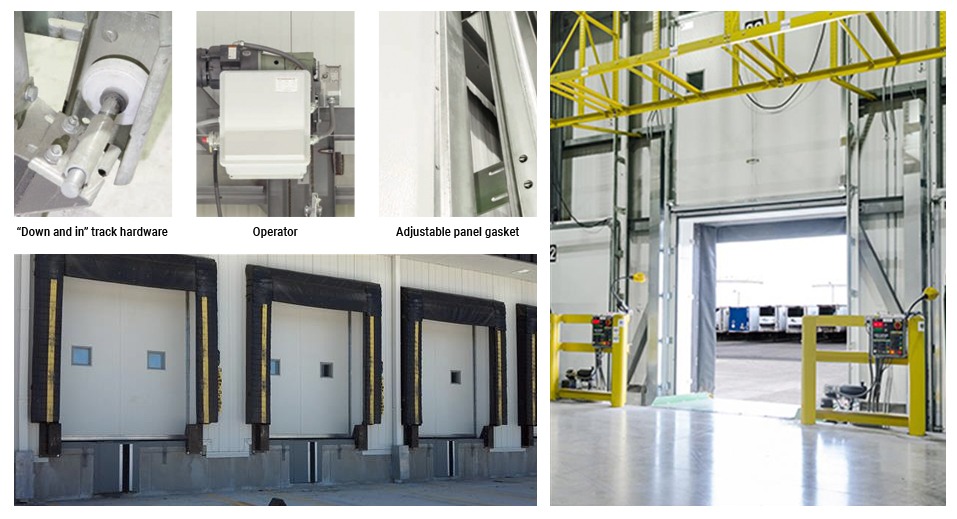

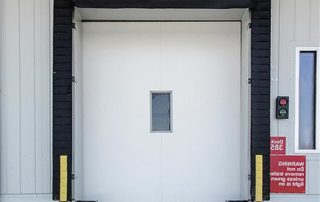

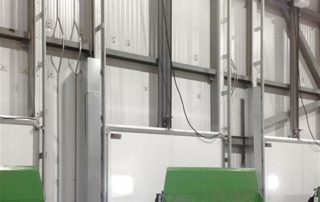

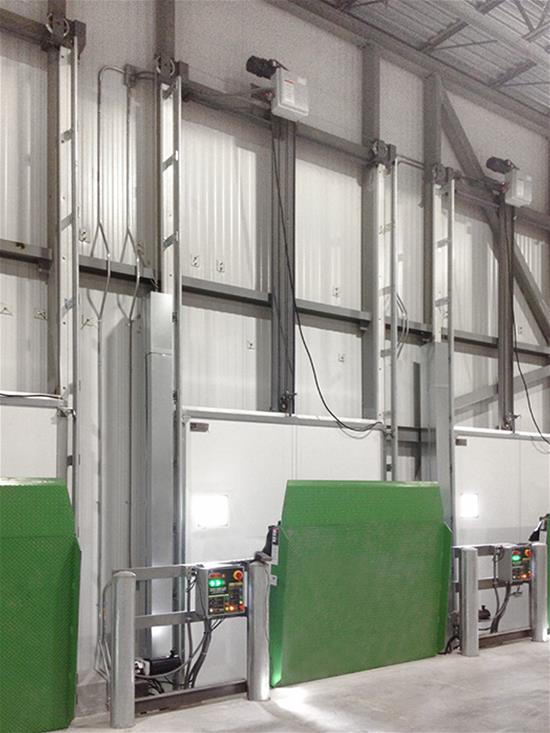

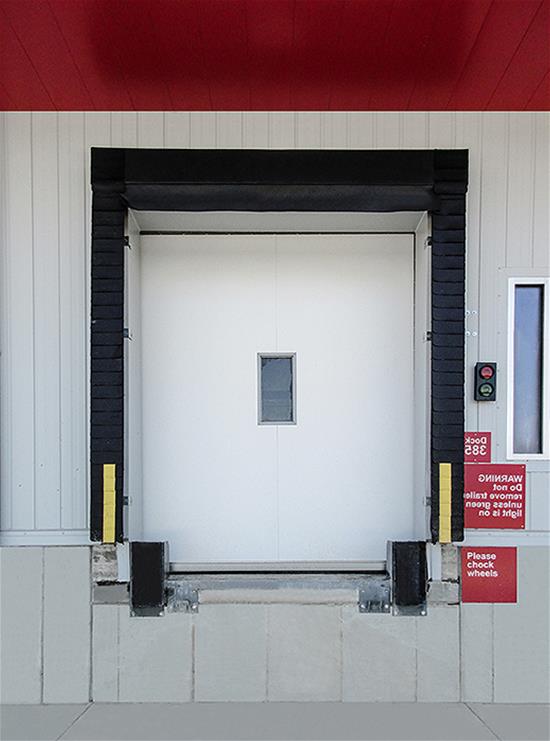

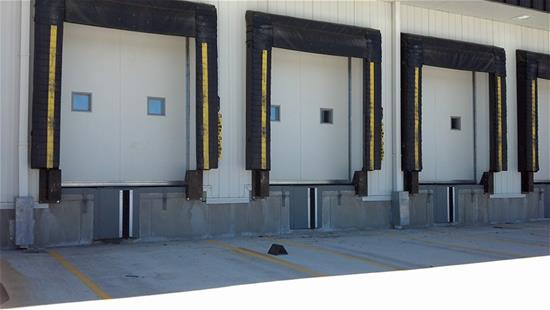

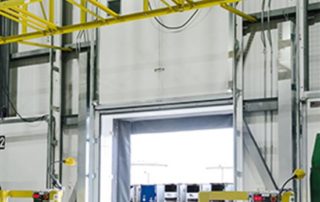

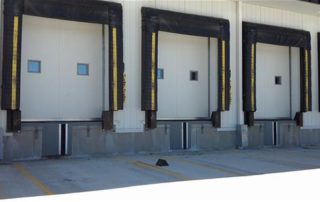

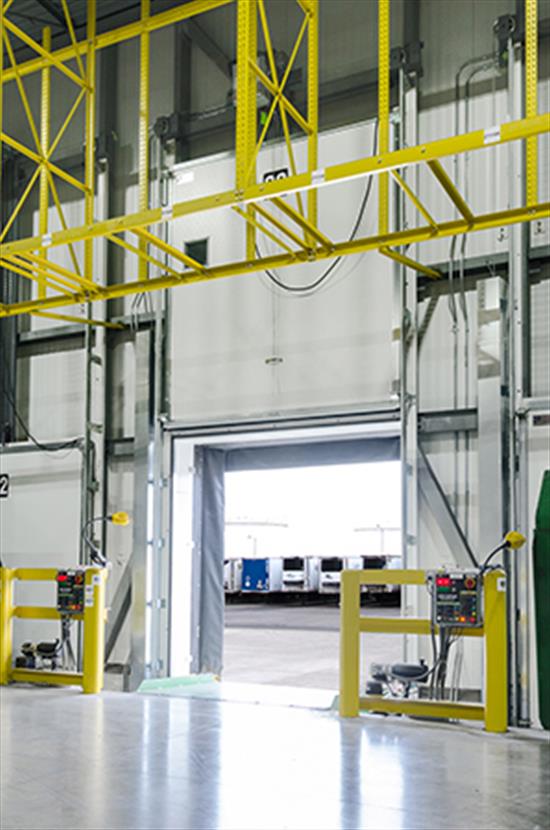

Photos
Customizations
- High gloss finish.
- Non-white fiberglass colours (white standard).
- Windows.
- Stainless steel hardware.
- Completely wood-free construction to eliminate any chance of fibrous contamination.
- Kickplates on door panel.
Additional customization options for the powered model
- Actuators: Pull cord, push button, photo eye, radio control, loop detector, motion detector.
- Pre-announce to close kit (light, alarm or combo).
- Standard operation includes two pull cords or two push-buttons with time delay close.
Warranty
• 1 year limited.
Specifications
| Min. door opening | 5'x7' |
| Max. door opening | 10'x12' |
| Standard colour | White |
| Panel construction | Unitized high strength fiberglass panel with pour-type polyurethane insulation. Seamless matte finish construction standard. Panels reinforced with an interior full perimeter subframe of 1/8" steel with 11-gauge steel hardware attachment plates welded to frame. Full perimeter 16-gauge stainless steel panel edge capping. Full perimeter gaskets. |
| Operation | Electromechanical at 18"/sec or manual operation |
| Insulation | 4" poured polyurethane foam R-30 or R50 rated."K" factor of .12 at 75°F. |
| Performance features | Panel reversing edge along full width and travel of door. Manual override. |
 |
|
