Reduce Energy and Maintenance Costs
These high-speed impactable sliding freezer doors will increase productivity, improve material handling, maximize quality control and enhance worker safety.
- High-speed operation: With a door opening speed of up to 4′-8’/second, Enviro’s Iso-Flex and XP doors provide unmatched productivity and decreases energy loss.
- Impactable: The only wall mounted guidance system (optional with model XP) with a pivoting head capability, these doors can be impacted from the backside without floor hardware and hanger bolt damage.
- Virtually maintenance-free: The single and bi-part sliding doors require no lubrication and incorporate a self-cleaning, virtually frictionless surface, providing lifelong lubrication on nylon roller wheels.
- Ultra-clean: These single and bi-part sliding door systems utilize a full perimeter non-marking gasket system and “down and in” track system for easy cleaning and wash downs.
Information
The Problem with Roll-Up Freezer Doors
- Roll-up freezer doors can only go up to an R-4 value for insulation while these sliding doors have are R-17, R-30 or R-50 rated.
- Buildings are being built with taller and taller openings. Fabric freezer doors can only go up to a maximum of 12′. These sliding doors can get as big as 19′.
- Roll-up freezer doors require heated blowers to prevent frost from building up on the bottom which can cost $8,000 to $9,000 in energy costs to run. Heated blowers can only cover 12′.
- Forklifts often the bottom bar or leading edge of roll-up freezer doors as it is above the operator’s line of sight, leading to high repair costs. These sliding doors are built to withstand impacts and can easily be reset after an impact.
- Horizontal doors have less distance to cover than vertical doors when opening, allowing them to have faster opening speeds.
Protect the Leading Edge of Cold Storage Doors with Impactable Sliding Doors
Based on our extensive years of experience servicing the cold storage industry, we’ve found that 90% of impacts occur on the leading edge of freezer doors. Prevent damage to the leading edge of freezer doors with the impactable Iso-Flex cold storage doors. These doors feature a breakaway bar to withstand accidental hits without damaging the door and causing downtime.
Furthermore, the Iso-Flex series is the only impactable door with flexible panels that utilizes a wall mounted guidance system and a pivoting door panel carrier, which provides superior impact capability while reducing downtime and repair costs.
High Efficiency, Save Energy and Low Maintenance
XP sliding doors provide unmatched productivity, material handling efficiency and energy cost savings with door opening speeds of up to 4′-8′ per second (model dependent). The standard and impactable series utilize a revolutionary full perimeter non-marking double gasket system along with a “down and in” track design for superior efficiency.
An exclusive seamless rail system provides a self-cleaning, virtually frictionless surface, providing lifelong lubrication on nylon roller wheels. A high torque synchronous drive belt is tested millions of cycles and also requires no lubrication to minimize maintenance costs.
High Cycle, High Usage and High Risk of Impact Models
These models are perfect for facilities where the door is opened 100 or even 600 times a day. The more times you open the door, the greater the risk of impact and convention (ice forming on inside of the freezer and on the floor outside the freezer from outside and inside air mixing). Prevent safety risks and costly downtime with these high-speed impact resistant or break-away models.
Low Cycle, Low Usage and Low Risk of Impact Models
These cost-efficient models are perfect for facilities where a door is only open 0-100 times as the risk of impact is minimal. These models are available up to 5.5″ panels and have a R-30 and R-50 insulating value.
The standard XP 2500 and 2000 cooler and freezer door panels can always be upgraded to the Iso-Flex flexible panels at any time if you change your mind and would like an impactable door.
Perfect Cooler and Freezer Door for:
• Refrigerated warehousing
• Food processing
• Grocery distribution
• Dairy
• Seafood
• Bakery
• Pharmaceutical
Activation Method
The most important aspect of any door project is deciding on your activation method to:
✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door
✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy
Motion, presence and safety all in one. These sensors can be set to open for only incoming pedestrian or forklift traffic. Speed up workflows by installing or retrofitting dock, industrial, pedestrian and entrance doors with automatic motion sensors. View »
Prevent cross-contamination by never having to touch a door to open it. Install or retrofit dock, industrial and pedestrian doors with touchless wave sensors. View »
Photos
Models
High Cycle, High Usage and High Risk of Impact Models |
|
 |

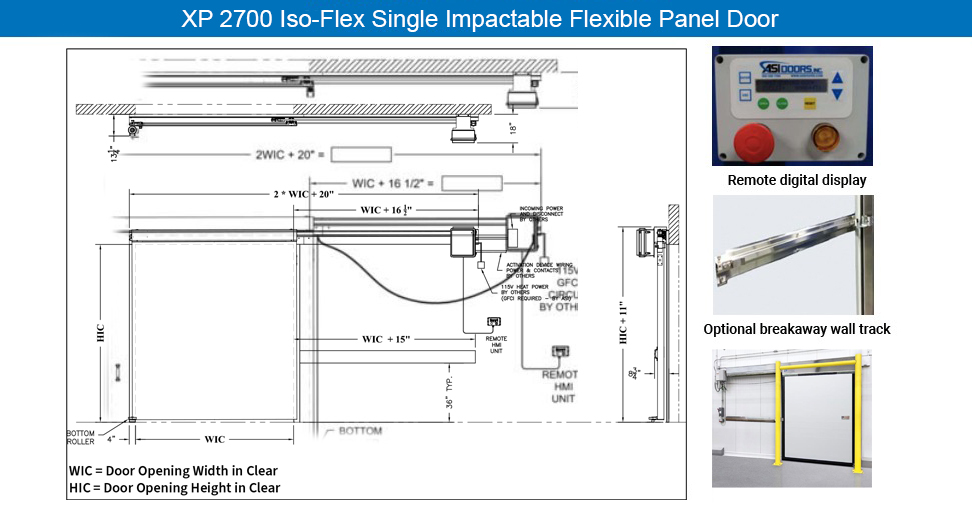

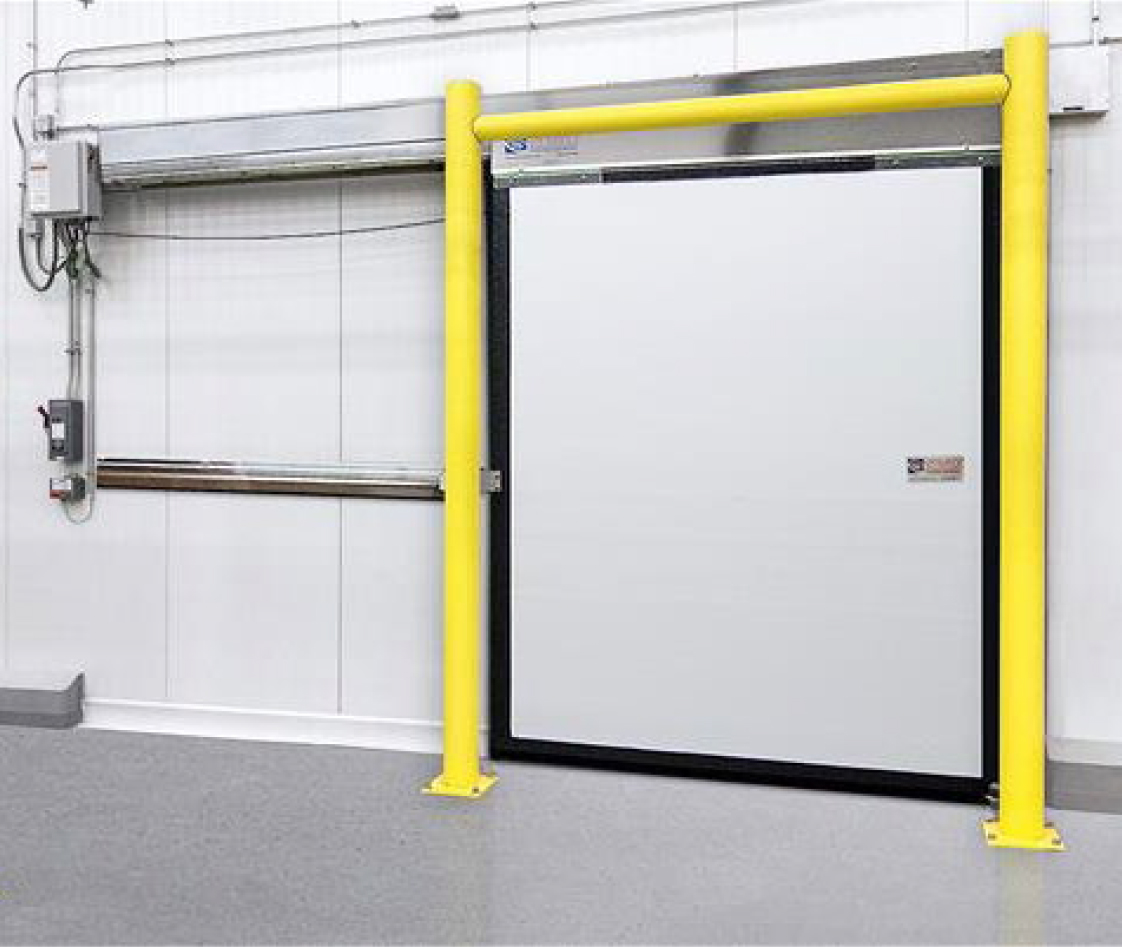

XP 2700 Iso-Flex Impactable Single Flexible Panel Sliding Cooler/Freezer DoorThe XP 2700 ISo-Flex is designed to reduce downtime and repair costs with it's flexible panel and exclusive wall track guidance system that can withstand an impact. The XP 2700 fits door openings between 5'x7' to 8'x19'. |
 |

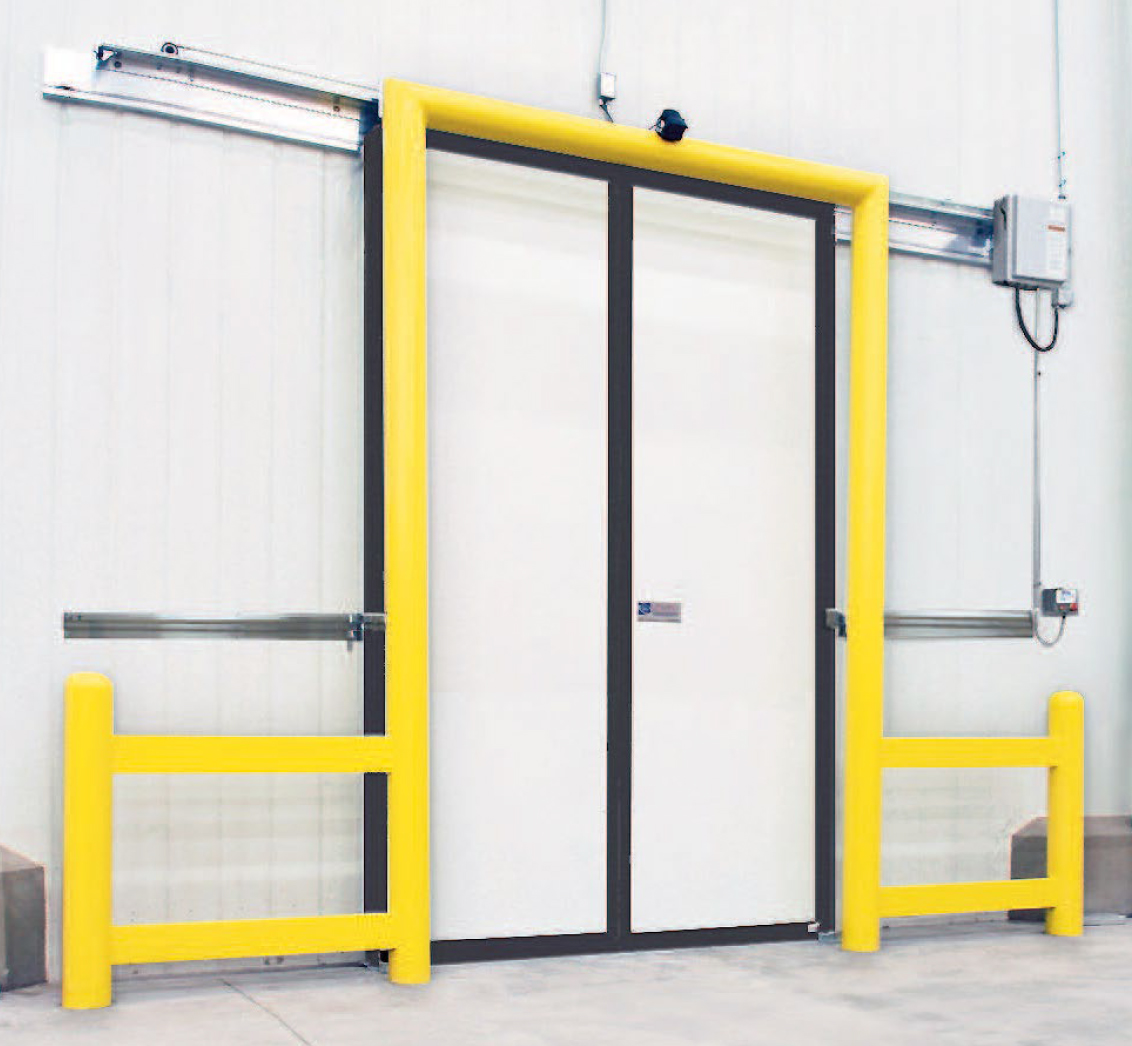

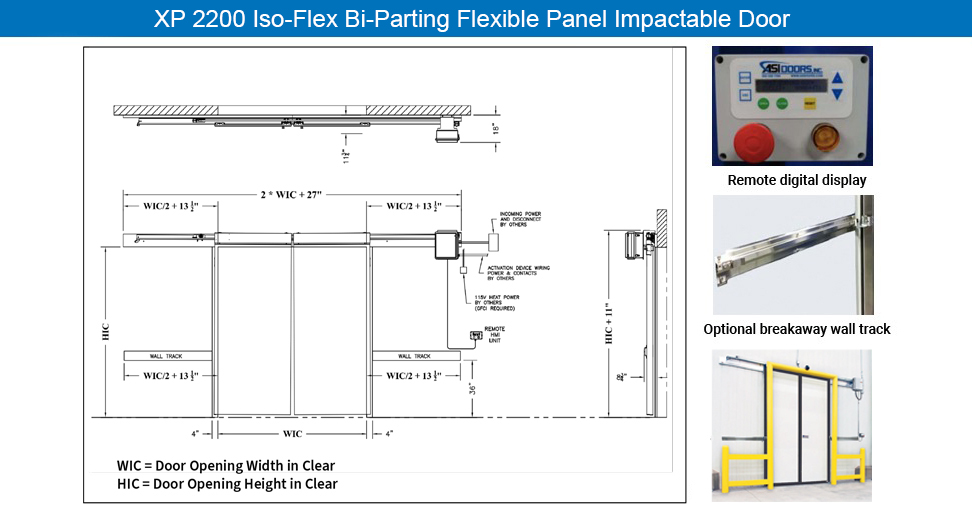

XP 2200 Iso-Flex Impactable Bi-Parting Flexible Panel Sliding Cooler/Freezer DoorThe XP 2200 ISo-Flex is designed to reduce downtime and repair costs with it's flexible panel and exclusive wall track guidance system that can withstand an impact. The XP 2200 fits door openings between 5'x7' to 10'x19'. |
Low Cycle, Low Usage and Low Risk of Impact Models |
|
 |

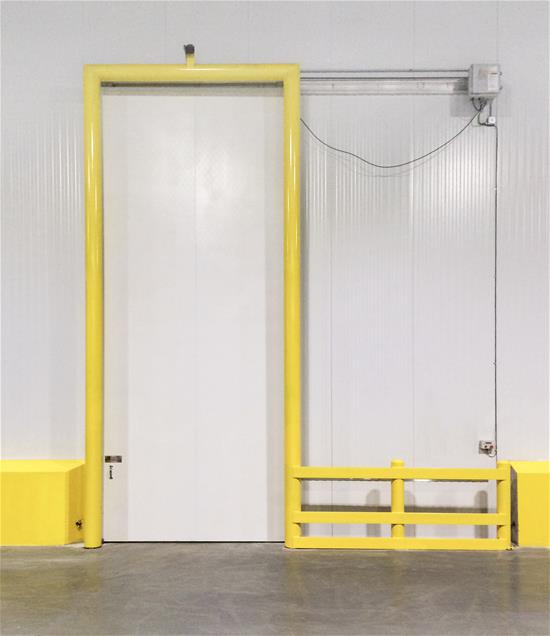

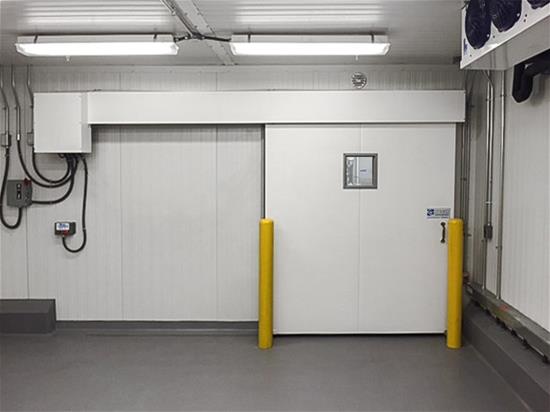

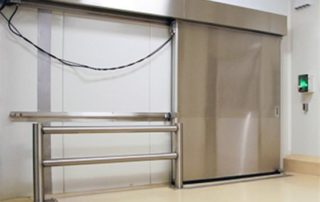

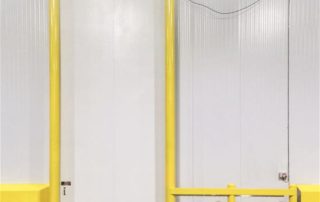

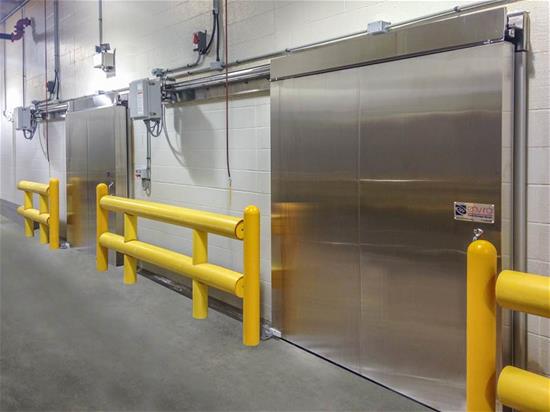

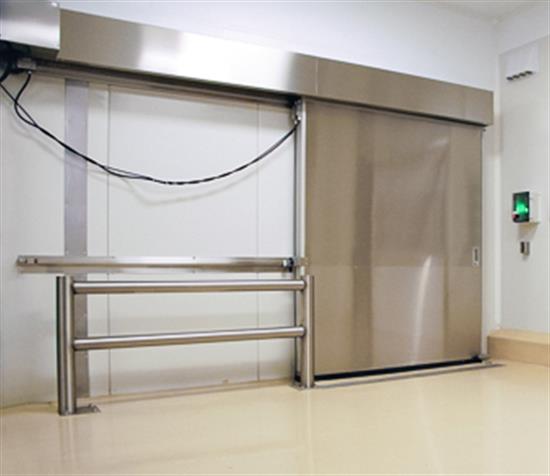

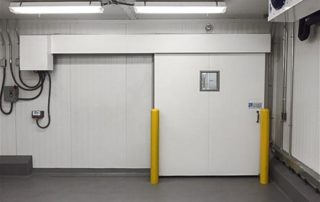

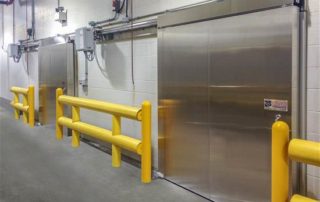

XP 2500 Standard Single Sliding Cooler/Freezer DoorThe standard XP 2500 single sliding door features an optional wall mounted guidance system and a pivoting head capability to withstand impact from the back side without floor hardware and carrier damage. XP 2500 fits door openings between 5'x7' to 10'x14'. |
 |

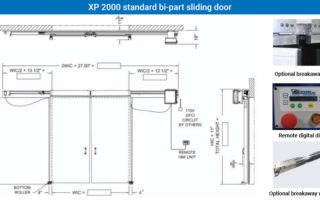

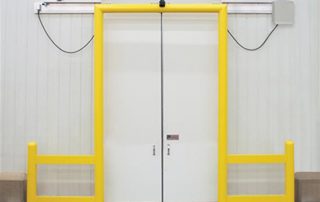

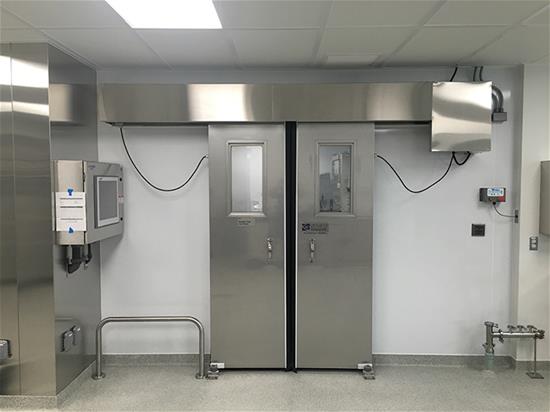

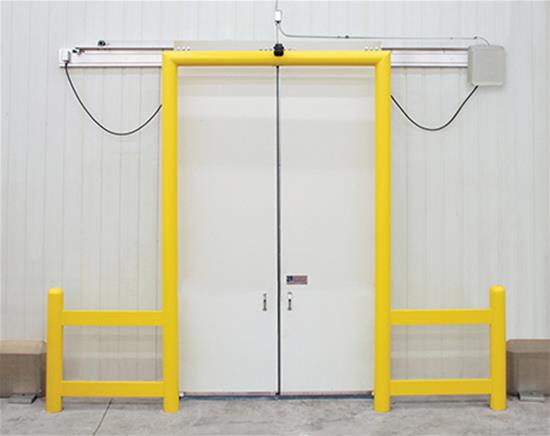

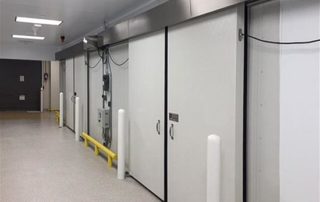

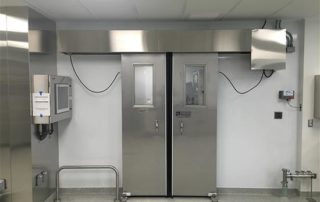

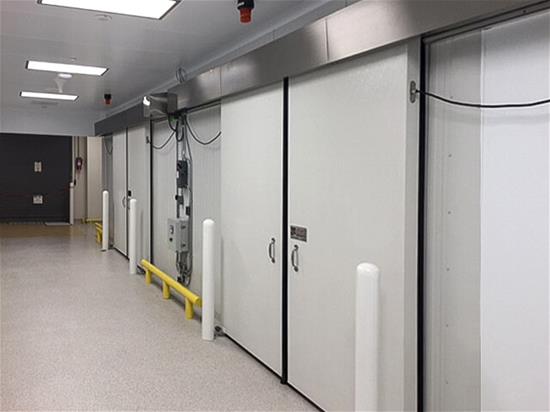

XP 2000 Standard Bi-Part Sliding Cooler/Freezer DoorFeaturing an optional wall mounted guidance system and a pivoting head capability to withstand impact from the back side without floor hardware and carrier damage, the XP 2000 standard bi-part sliding door is capable of reaching speeds of up to eight feet per second and ideal for openings between 5'x7' to 10'x14'. |
Model Comparison Chart
| XP 2700 Single Sliding Door | XP 2200 Bi-Part Sliding Door | |||
| Min. door opening | ||||
| Max. door opening | ||||
| Panel construction | Polyurethane perimeter panel edge. |
|||
| Opening speed | Up to 50"/second | Up to 100"/second | ||
| Closing speed | Up to 25"/second | Up to 50"/second | ||
| Operation | 115/230 volt AC, single phase, or 460 volt AC, 3-phase. DC motor with clutchless/brakeless operation. PLC (Programmable Logic Control). VFD (Variable Frequency Drive). Encoded self-calibrating limit position. H.M.I. (Human Machine Interface) with self-diagnostics, history function and fault indicators. |
|||
| Insulation | R-17 rated. |
|||
| Performance features of powered models | Header mounted control box with pre-wired remote digital display. Pre-wired motor and encoder. LED indicators in control box for door status. |
|||
| XP 2500 Single Sliding Door | XP 2000 Bi-Part Sliding Door | |||
| Min. door opening | ||||
| Max. door opening | ||||
| Panel construction | Full perimeter heat (freezer models only) |
|||
| Opening speed | Up to 50"/second | Up to 100"/second | ||
| Closing speed | Up to 25"/second | Up to 50"/second | ||
| Operation | 115/230 volt AC, single phase or 460 volt AC, 3-phase. DC motor with clutchless/brakeless operation. Encoded self-calibrating limit position. Standard motor/encoder IP65 rated. Remote digital display with self-diagnostics and fault indicators. |
|||
| Insulation | R-30 rated (R-50 rate for optional 5.5" panels). "K" factor of .12 at 75°F. |
|||
| Performance features of powered models | Header mounted control box with pre-wired remote digital display. Pre-wired motor and encoder. LED indicators for door status. |
|||
Customizations
- Manual operation
- Stainless steel construction
- Coloured metal
- Padlocking
- Shroud for rail and operator
Additional Customization Options for Powered Models
- Actuators: Pull cord, push button, photo eye, radio control, loop detector, motion detector.
- Pre-announce to close kit (LED light bar)
- Standard operation: (2) pull cords or (2) push buttons with time delay close.
- Standard operation: Activate open time delay close.
- Manual operation
- Stainless steel construction
- Windows
- Coloured metal
- Padlocking
- 5.5" panel thickness (standard 4")
- Door panels can be upgrade to impactable Iso-Flex flexible panels at any time
Additional Customization Options for Powered Models
- Actuators: Pull cord, photoeye, radio control, loop detector, motion detector.
- Pre-announce to close kit (light, alarm or combo).
- Standard operation includes two pull cords or two push-buttons with time delay close.
- Standard operation: Activate open time delay close for XP 2000 model only.
Warranty
- 1 year limited for XP 2500 and XP 2000.
- 2 years limited for XP 2700 and XP 2200.
