Steel Ranger
Insulated High-Speed Rolling Steel Door
Jump to: Information | Activation | Photos | Customers | Models | Compare | Customizations | Warranty
High-Speed Rolling Steel Door
With opening speeds up to 45″ per second and 20″ per second closing speeds, these high-speed rolling steel doors are perfect for high cycle environments such as parking garages and manufacturing plants.
✓ High traffic, high-speed and high cycle: Keeps up with high and continual workflow demands with fast opening speeds and energy efficiency.
✓ Low maintenance: Springless direct drive design means fewer moving parts to break down and maintain.
✓ Safety: Built-in light curtain to protect people, vehicles and products from getting hit by the door.
✓ Vision panels: Add windows in two different styles.
Information
A Rolling Steel Door for High Traffic Areas
Replace old and slow doors with high-speed rolling steel doors for high-traffic areas. The springless direct drive operation can withstand high cycle environments. As a result, it boasts a 100,000-cycle warranty.
In addition, the springless direct drive design means fewer moving parts that can break down. So this door is low maintenance, especially when compared to traditional sprung doors.
High-Speed Rolling Steel Door
The Steel Ranger door has opening speeds up to 45″ per second and 20″ per second closing speeds. Therefore a 12’0″ high door can open as fast as 3.6 seconds.
Insulated Rolling Steel Door
The Steel Ranger has insulated Decotherm. 29 gauge steel panel slats, which has a polyurethane core. Each slat is 11/16″ thick and 4.3″ high.
The panel sealing technology incorporated around the entire door reduces air and noise infiltration and includes a frost-proof bottom edge.
Damage Resistant Coating
The steel skin on the slats has a triple layer skin to protect it from damage:
1. Zinc coating
2. Base coating
3. Low-friction RAL 9006 top coating
Two Styles of Vision Slats
Compact or full-width vision slats are available. Each rectangular window is 5.9″ wide x 2.16″ high, double pane, polycarbonate.
Compact
The windows are clustered together in the center of the slat.
Full-Width
The windows are spaced out across the width of the slat.
Safety First
Every Steel Ranger comes standard with a built-in light curtain. It has a 8’0″ high light grid with infrared beams every 1.75″. If a beam is interrupted, it will automatically reverse the door to protect people, vehicles and products from making contact with the door. Additionally, it has noise-reduction pads for a quiet operation.
Low-Profile and Low-Headroom Rolling Steel Door
The Steel Ranger has a compact design for confined or low-headroom locations. The low-profile aluminum guide tracks project only 4″x3″. As a result, they are less likely to be hit or damaged, reducing maintenance costs and downtime.
Pair with the LED Lite-Advance
Add the Lite-Advance door monitoring lights to signal drivers with red and green lights when it is safe to proceed through the door.
Activation Method
The most important aspect of any door project is deciding on your activation method to:
✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door
✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy
Motion, presence and safety all in one. These sensors can be set to open for only incoming pedestrian or forklift traffic. Speed up workflows by installing or retrofitting dock, industrial, pedestrian and entrance doors with automatic motion sensors. View »
Prevent cross-contamination by never having to touch a door to open it. Install or retrofit dock, industrial and pedestrian doors with touchless wave sensors. View »

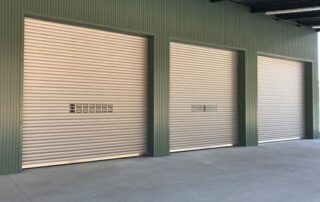

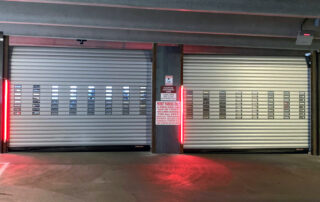

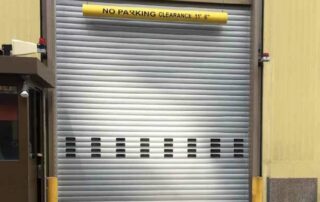

Photos
Models
|
Steel Ranger 5000 LThe Steel Ranger 5000 L rolling steel door fits door sizes up to 16'0" w x 14'0" h or 21'0" w x 10'8" h. It needs 24 1/2" of headroom or 32" of headroom if it has a hood. |
|
Steel Ranger 9000 LH (Low Headroom)A low headroom version of the Steel Ranger rolling steel door only needs 18 1/2" of headroom or 21 1/4" of headroom if it has a hood. However it only fits doors up to 21'0" w x 9'0" h. |
Model Comparison Chart
| 9000 L | 9000 LH (Low Headroom) |
|
| Track configuration | Vertical - aluminum 4" w x 3" proj. | Low headroom - aluminum 4" w x 3" proj. |
| Size range | Max. width x height: 16'0" w x 14'0" h or 21'0" w x 10'8" h Min. required headroom std: 24-1/2" Min. required headroom w/hood: 32" |
Max. width x height: 21'0" w x 9'0" h Min. required headroom std: 18-1/2" Min. required headroom w/hood: 21-1/4" |
| Application | ||
| Operating speed | Closing approx. 20" per second |
|
| Thermal insulation | 0.13 U-value (imperial) in BTU/(h·ft²·ºF) |
|
| Panels | Optional: Wet paint one or both sides of panel - Available for applications that require it. Painted product not recommended and manufacturer‘s warranty not applicable. Standard: Patented noise reduction pads on interior side. |
|
| Vision | ||
| Hood | ||
| Light curtain | ||
| Thru beam photoeye | ||
| Control | Optional: Step-up and step-down transformers Optional: NEMA 4, 230 v / 1-phase – or – HFCB NEMA 3 Smart Start™ NXT with 230 v only / 1-phase |
|
| Emergency | ||
Customizations
- Slats: Optional wet paint one or both sides of panel. Available for applications that require it. Painted product not recommended and manufacturer‘s warranty not applicable.
- Vision windows: Optional 5.9" wide x 2.16" high double-pane polycarbonate. Window positioning in compact or full-width.
- Hood: Optional galvanized steel.
- Safety: Optional thru beam photoeye. Comes with standard built-in light curtain.
- Control panel: Optional step-up and step-down transformers for control panel.
- Control panel: Optional NEMA 4, 230 v / 1-phase – or – HFCB NEMA 3 Smart Start™ NXT with 230 v only / 1-phase.
- Emergency: Optional Hand crank. Comes with standard chain hoist.
Warranty
- Track funnel: 100,000 cycle warranty.
- Motor/gearbox (excluding catch) and panel material: 5 years.
- All other mechanical and electrical components free from defects: 2 years.
