Heavy-Duty High-Speed Rubber Doors

High Speed and High Traffic Rubber Doors

Energy rebates available – contact us for details

Less Maintenance, Less Downtime

Impactable heavy duty rubber doors can be easily reset in minutes; reducing your facility’s downtime in the event of an accidental impact.

Get peace of mind with maximum uptime in your fast-paced and non-stop facility.

Get energy rebates in select areas of Ontario. Contact us today to begin the qualification process—we'll calculate your potential one-time energy rebates, ongoing energy savings and return on investment.

✓ High traffic, high-speed and high cycle: Keeps up with high and continual workflow demands with fast opening speeds and energy-efficiency.

✓ Withstands impact: These doors can withstand accidental impact from moving lift trucks and/or heavy equipment, eliminating all your door impact concerns.

✓ Durable: Dirt, dust, rain, snow and low temperature have little to no effect on it.

✓ Weathers harsh environments: It can handle high wind loads and pressure differentials caused by exterior wind exposure and positive pressure work environments.

✓ Unmatched warranty: Operators have a 5 year or 1,000,000 cycle warranty on it.

✓ Adaptable for any application: Springless, sprung, low headroom and large size models make it available to fit any facility.

Information

High-Speed for High-Efficiency

Save on your energy bills with fast opening and closing rates. The high-efficiency Heligear Head (HG) operator or Heavy Duty Gear Head Direct Drive operator with a multi-function PLC panel can open doors with speeds up to 60 inches per second; to keep up with continual and fast-paced workflows.

Direct Drive
(HD-DD) Model
Opening speeds up to 64″/sec

Hybrid
(HD-HD) Model
Opening speeds up to 63″/sec

Chain Drive
(HD-CD) Model
Opening speeds up to 24″/sec

Sprung Drive
(HD-SD) Model
Opening speeds up to 48″/sec

Built to Last – Easy Install and Maintenance

The sleek profile reduces the clearance needed to install the door, making it easy to install anywhere. While the heavy-duty design does not have any hinges, cables, pulleys or tension springs; reducing maintenance costs.

0 cycles

unmatched operator warranty

The Hybrid (HD-HD), Direct Drive (HD-DD) and Chain Drive (HD-CD) models come with an industrial drive system with soft start and soft stop variable frequency inverter drive to increase safety and reduce wear.

Suitable for Any Climate

These rubber doors are made with a 1/4″ SBR rubber with polyester core weave. This material will remain functional in temperatures -40ºF to +180ºF (-40ºC to 82ºC). In addition, it can withstand high winds and high-pressure differentials. Making it suitable for just about any climate or environment.

Adaptable for Any Facility

Whether you need springless, sprung counterbalance, chain gear head operator, direct drive operator, low headroom, large size, high pressure, high winds or extreme climates we have a model that can suit your needs.

Sprung Drive
(HD-SD) Model
Chain Gear Head Operator

Spring Counterbalance

Chain Drive
(HD-CD) Model
Chain Gear Head Operator

Heavy Duty Cycle Direct Drive (HDC-DD) Rubber Door

Direct Drive
(HD-DD) Model
Heavy Duty Direct Drive Operator

Hybrid (HD-HD) Model
Heavy Duty Direct Drive Operator

Springless System

Strong Enough to Withstand Impacts and High Winds

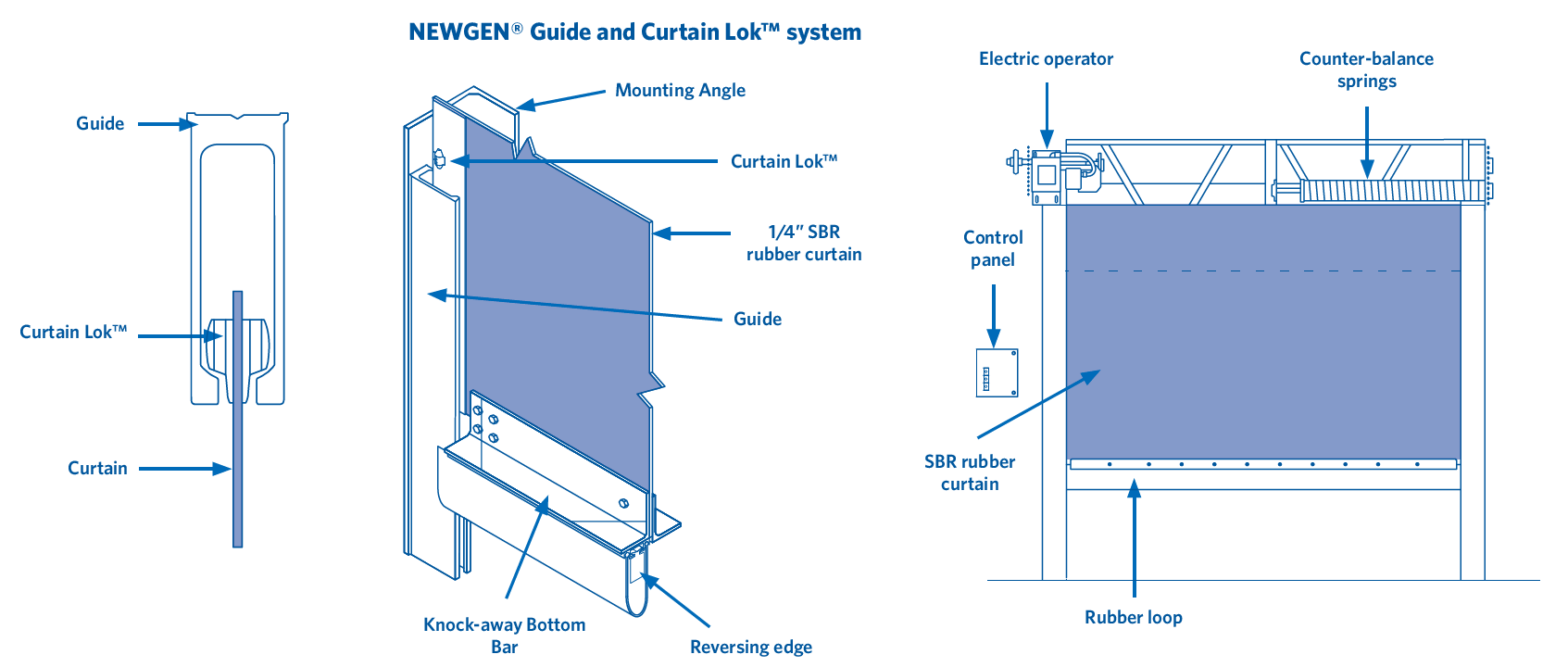

The patented NEWGEN Guide and Curtain Lok System, with a self-supporting steel frame and pivoting bottom bar, is strong enough to withstand impacts from moving lift trucks and/or heavy equipment. The aluminum pivoting bottom bar can easily be reset after an impact to get your facility up and running in minutes.

In addition to an innovative and aesthetically pleasing design, the pivoting bottom bar has been 3rd party tested to withstand high-wind applications without the need for traditional wind bars.

Rubber Door NEWGEN Light Curtain Cross Section

Integrated Light Curtain

The aluminum guides include an integrated channel for 92-inch-tall monitored light curtains. As a result, this ensures safe, consistent operation and protects the light curtains from damage.

A Perfect High Traffic and High-Speed Solution for:

• Manufacturing
• Food processing
• Automotive
• Bus transit stations
• Parking garages
• Postal outlets
• Airports
• Railways
• Mining

Activation Method

The most important aspect of any door project is deciding on your activation method to:

✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door

✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy

✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door

✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy

Choose Your Activation Method

LZR Widescan motion sensor for overhead doors bluetooth

Automatic Motion Sensor

Touchless Wave Sensor

Push Buttton

Floor Loop

Pull Cord

Photos

Videos

Less Maintenance, Less Downtime The ability to take multiple impacts from heavy vehicles without taking damage gives our doors an edge over the competition, and we've saved countless organizations time while improving their budgets.	History of High-Speed Rubber Doors Creating high-performance doors for a variety of industries, from mining and industrial, to food and beverage, parking and automotive, and more.
Reset Aluminum Bottom Bar Reset the bottom bar within minutes after an impact with the door.	Where Do Our Doors Excel? These heavy duty high-traffic rubber roll-up doors are perfect for parking garages, airports, bus transit stations, and more.
Energy Conservation Increase energy savings when compared to other standard overhead doors.	HDC DD Opening and Closing Fast opening and closing speeds of the HDC DD model.

Customers That Love This Product

Click a logo below to view the success story

Read Customer Success Stories

Models

	Direct Drive (HD-DD) This impactable and springless system with direct drive operator and variable frequency inverter drive has a soft-start and soft-stop to increase safety and reduce mechanical wear/breakdown.
	Hybrid (HD-HD) It is a hybrid alternative of a lighter rubber curtain or 88 oz fabric curtain. In addition it has a springless system with direct drive operator and variable frequency inverter drive. The a soft-start and soft-stop to increase safety and reduce mechanical wear/breakdown.
	Sprung Drive (HD-SD) This impactable and heavy duty door with counterbalance springs has opening speeds of up to 60"/sec. The variable frequency inverter drive has a soft-start and soft-stop to increase safety and reduce mechanical wear/breakdown.
	Chain Drive (HD-CD) This impactable and springless system with chain drive operator and frequency inverter drive has a soft-start and soft-stop to increase safety and reduce mechanical wear/breakdown.

Model Comparison Chart

	Hybrid (HD-HD)	Direct Drive (HD-DD)	Chain Drive (HD-CD)	Sprung Drive (HD-SD)
Maximum Door Size	25'x22'	30'x30'	30'x30'	30'x30'
Opening Speed	Up to 63"/sec.	Up to 64"/sec.	Up to 24"/sec.	Up to 48"/sec.
Curtain	5/32" black SBR rubber with polyester core weave.	1⁄4" black SBR rubber with polyester core weave. Flexible and resistant to abusive environments and impacts in temperatures from -40°F to +180°F.
NEWGEN® Guide and Curtain-Lok™ System	Reliable and consistent door operation and impact release performance. No guide gap maintenance required.
Impactable Bottom Bar	Aluminum pivoting bottom bar that can be easily reset after impact. Moreover it can withstand high-wind applications removing the need for traditional wind bars
Wind Load (Door Closed)	20 psf (958 PA, 1.38 bar) or 88 mph (141 km/h). Optional travellling wind bar or weighted bottom bar to increase windload protection.
Self-Supporting Steel Frame	Steel truss, mounting angles and end plates.
Simple Design	No hinges, cables, pulleys or extension springs; reduced clearances. Easy to install and maintain - reduced installation and operating costs.
Drive System	Heavy Duty Direct Drive Operator includes operator. Variable frequency drive integrated with control panel.		Springless chain drive operator	Chain drive operator wtih counterbalance springs rated for up to 50,000 cycles. Upgradable springs for up to 100,000 or 200,000 cycles.
Safety System	Integrated light curtain in guides
Control Panel	Multi-function Programmable Logic Controller, NEMA 4 enclosure.

Customizations

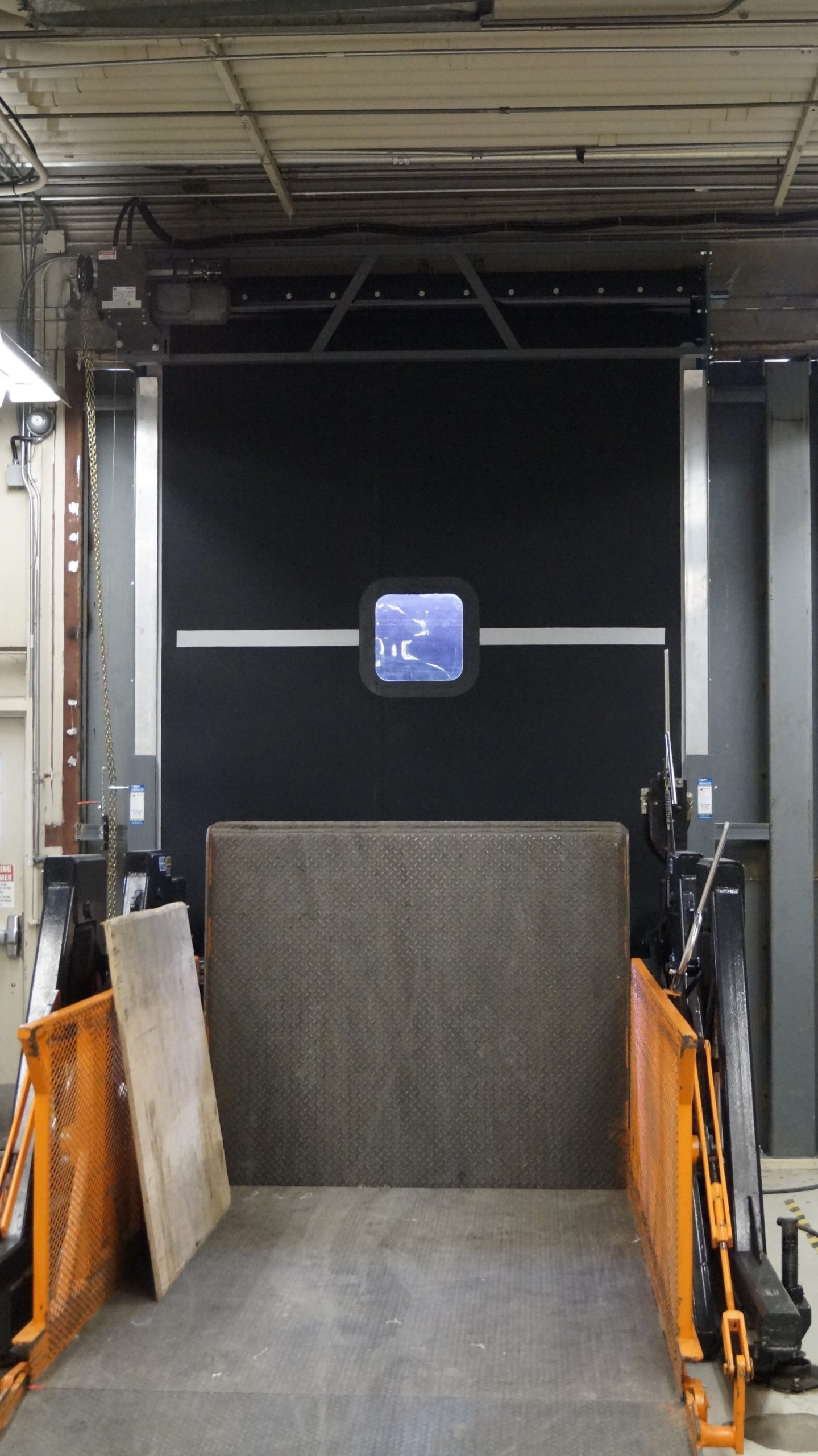

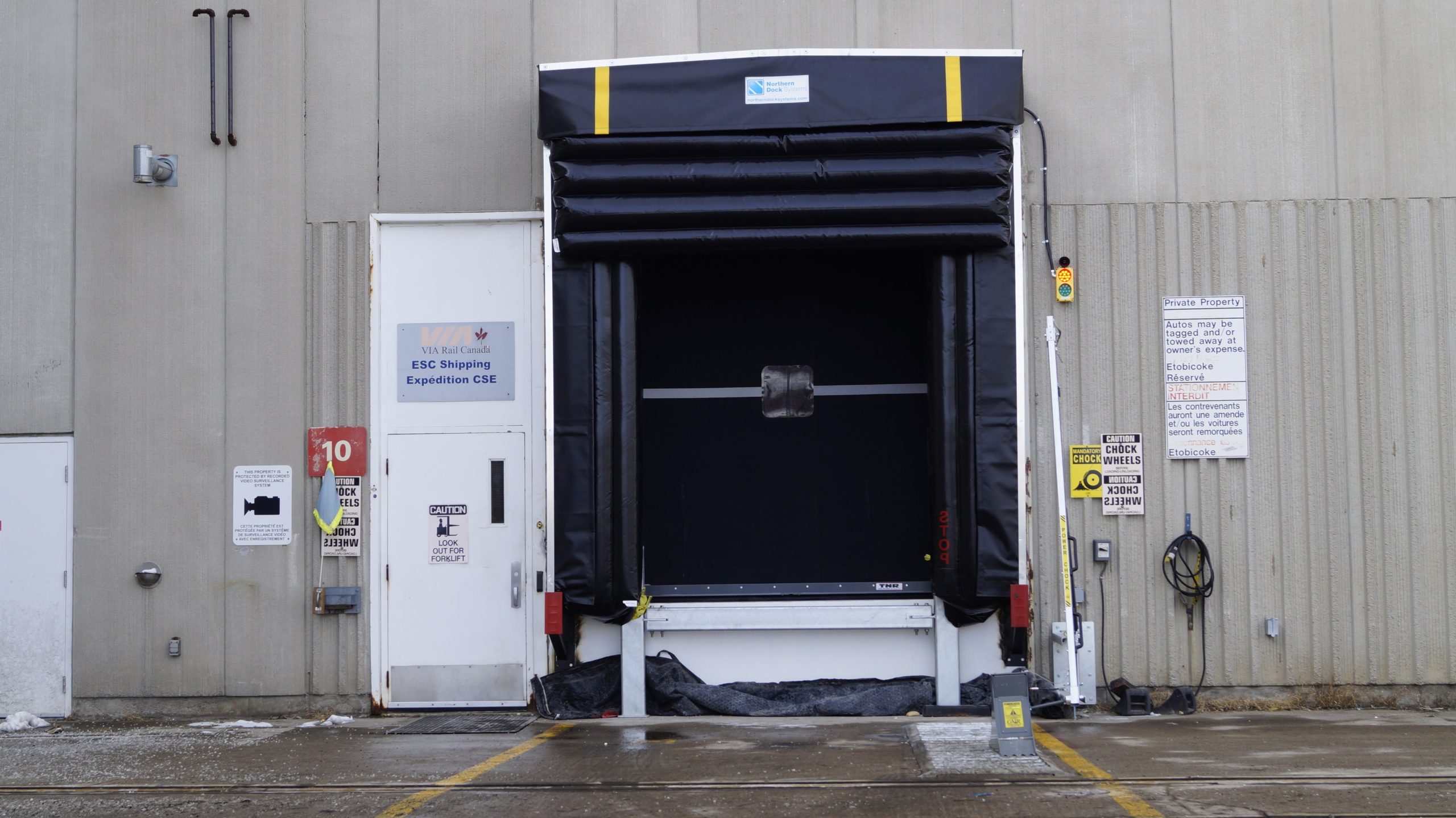

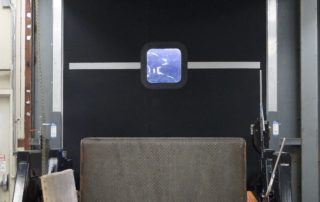

Mechanical options: Rubber colours, windows, front/top hoods, traveling windbar, weight bottom bar, guide guards, photo-eyes, reversing edge or MSHA-rated self-extinguishing curtain.
Activation options: Remote controls, pull cords, loop detectors and more.

Warranty

Limited Lifetime
Curtain

Limited Lifetime
NEWGEN Guides

0 Cycles

Operators with Frequency Drive

2 Years
Parts and Labour

Curtain: Limited lifetime.
NEWGEN guides: Limited lifetime.
Operators with variable frequency drive: 5 years or 1 million cycles.
Parts and labour: 2 years.
