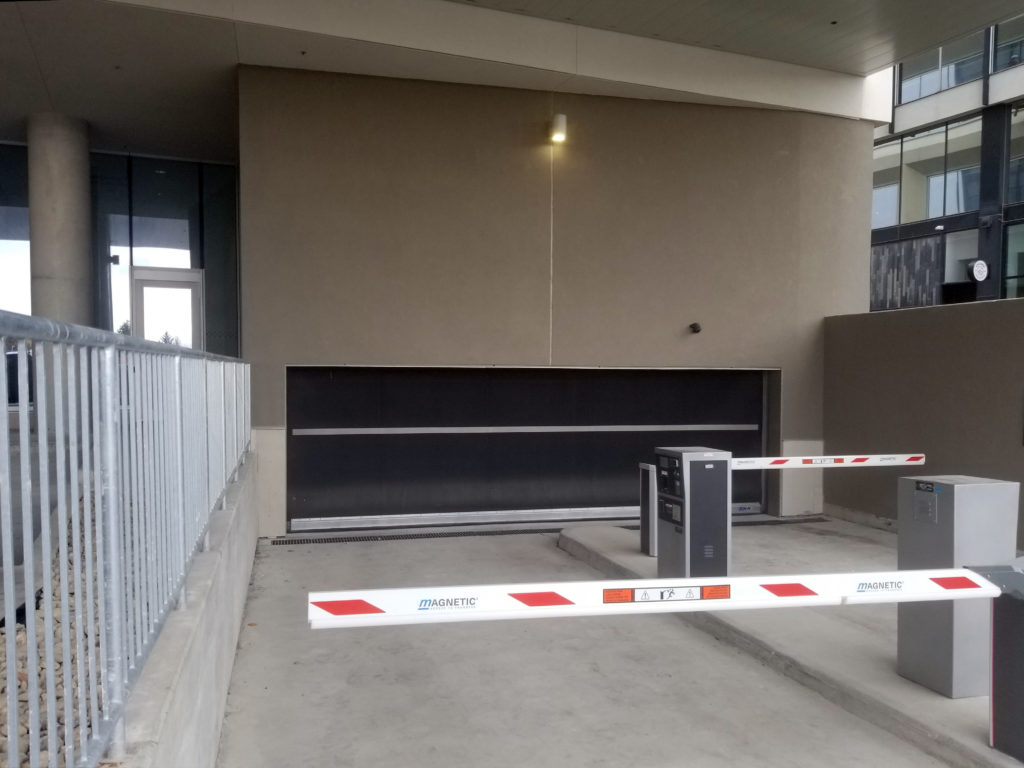

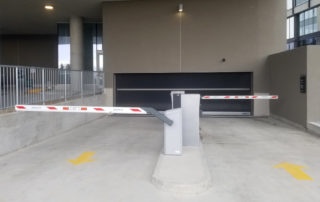

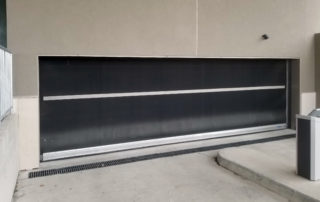

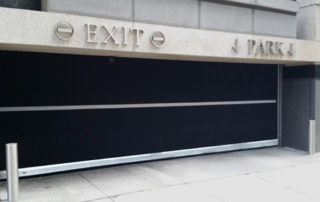

Low Headroom and High-Speed Parking Garage Doors
The reliable low-profile header design can work in applications with headrooms as low as 13 inches. Also, these durable high-speed rubber are perfect for high cycle applications in condominiums, office complexes, hotels, public parking and airports.
✓ Low headroom: The sleek and low-profile headers only need 13″ of clearance.
✓ Withstands impact: These doors can withstand accidental impact from moving lift trucks and/or heavy equipment, eliminating all your door impact concerns.
✓ Reliable and cost-effective: The springless design with less moving parts, which means less break down and maintenance costs for you.
✓ High-speed and high cycle: Opening speeds up to 30″/second.
✓ Durable: Dirt, dust, rain, snow and low temperatures have little to no effect on it.
✓ Weathers harsh environments: It can handle high wind loads and pressure differentials caused by exterior wind exposure and positive pressure work environments.
✓ Unmatched warranty: Operators have a 5 year or 1,000,000 cycle warranty.
Information
For Tight Overhead & Low Headroom Spaces

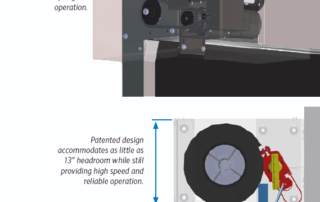

Only 13 Inches of Clearance Needed

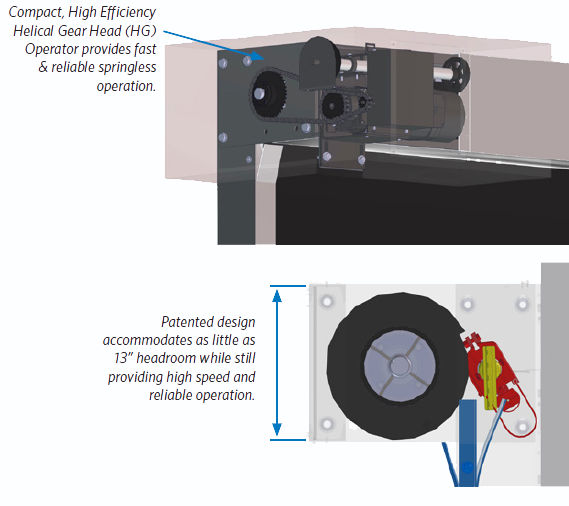

The sleek and low-profile headers reduces the clearance needed to install the door to just 13 inches. As a result, it’s easy to install this door just about anywhere.
Reliable & Durable
Easy Install & Low Maintenance
These reliable doors do not have any hinges, cables, pulleys or tension springs. Consequently, this reduces the number of moving parts that could break down and decreases your maintenance costs.
Both models come with an industrial drive system with opening speeds of up to 30″ per second. In addition, the drive system also has a soft start and soft stop frequency inverter drive to increase safety and reduce wear. As a result, these doors can be used in any high cycle application without fear of it breaking down.
Suitable for Any Climate or Environment

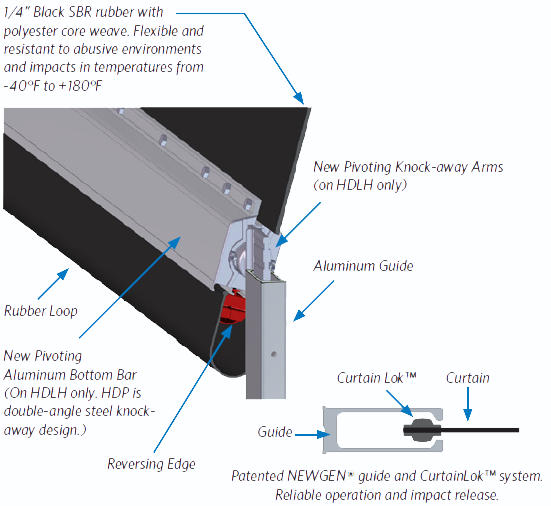

These rubber doors are made with a 1/4″ SBR rubber with polyester core weave. This material will remain functional in temperatures -40ºF to +180ºF (-40ºC to 82ºC). Similarly, it can withstand high winds and high-pressure differentials. Making it suitable for just about any climate or environment.
Strong Enough to Withstand Impacts

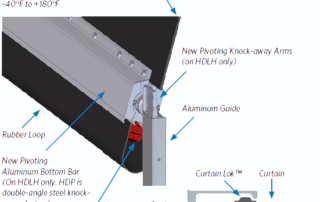

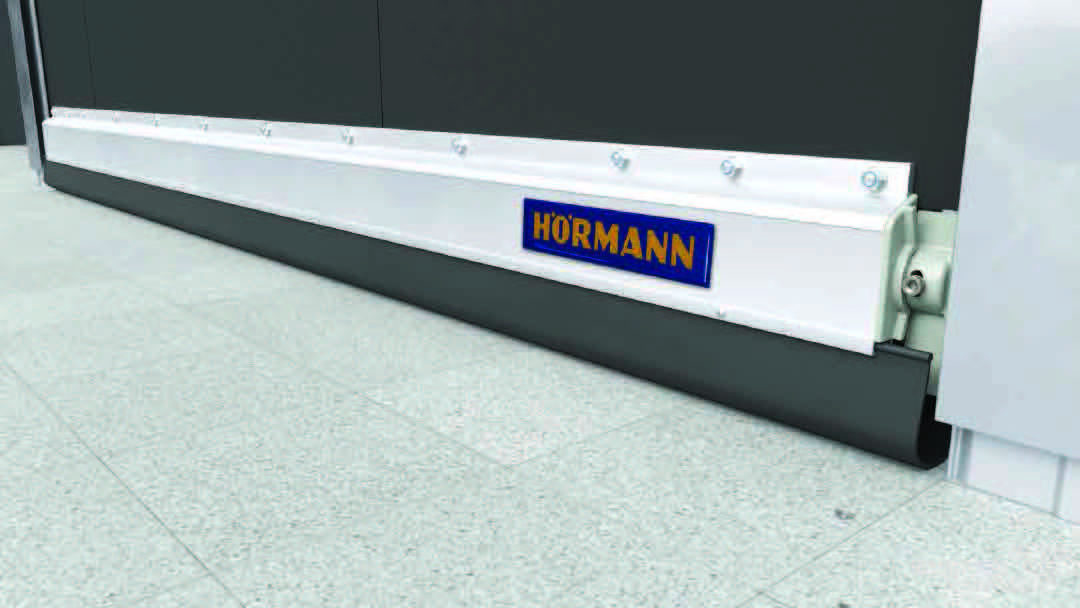

The patented NEWGEN Guide and Curtain Lok System includes a self-supporting aluminum frame and knock-away aluminum bottom bar with rubber loop. Firstly, this system is strong enough to withstand impacts from moving lift trucks and/or heavy equipment. Secondly, if the impact was strong enough, the knock away bottom bar can easily be reset after the impact to get your facility back up and running in minutes.

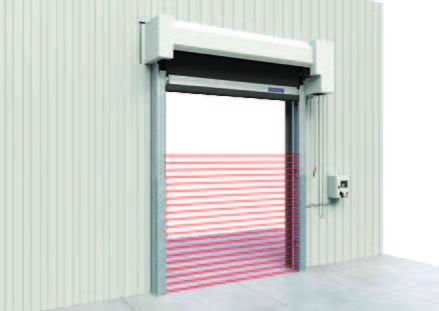

Furthermore, these doors have a reversing edge and thru-beam photoelectric sensors that help prevent accidental impacts when the door is closing to keep people and vehicles safe.
Lite-Advance Door Monitoring Lights
Red and green lights are visual indicators to promote safety. Waterproof, UV protected and IP68 rated, LED Lite-Advance lights are daylight visible for reliable performance regardless of location. User-programmable, the LED Lite-Advance can display red or green as fixed or flashing. View »
A Perfect Low Headroom Solution for:
• Office towers
• Hotels
• Underground parking garages
• Airports
Activation Method
The most important aspect of any door project is deciding on your activation method to:
✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door
✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy
✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door
✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy
Choose Your Activation Method
Photos
Videos
Low Headroom and High-Speed Parking Garage DoorsThe reliable low-profile header design can work in applications with headrooms as low as 13 inches. Also, these durable high-speed rubber are perfect for high cycle applications in condominiums, office complexes, hotels, public parking and airports. |
History of High-Speed Rubber DoorsCreating high-performance doors for a variety of industries, from mining and industrial, to food and beverage, parking and automotive, and more. |

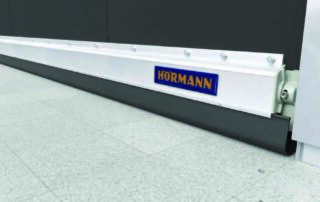

Reset Aluminum Bottom BarReset the bottom bar within minutes after an impact with the door. |
Where Do Our Doors Excel?These heavy duty high-traffic rubber roll-up doors are perfect for parking garages, airports, bus transit stations, and more. |
Energy ConservationIncrease energy savings when compared to other standard overhead doors. |
Models
|

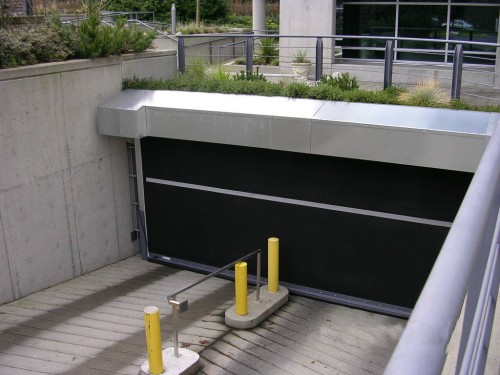

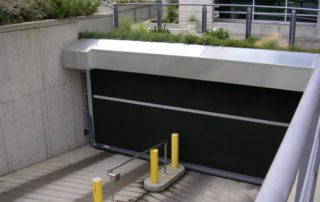

Low Headroom (HDP)This impactable and highly durable door with 18" minimum headroom clearance has opening speeds of up to 30"/sec. |
|

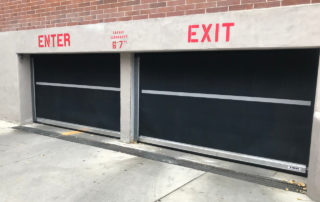

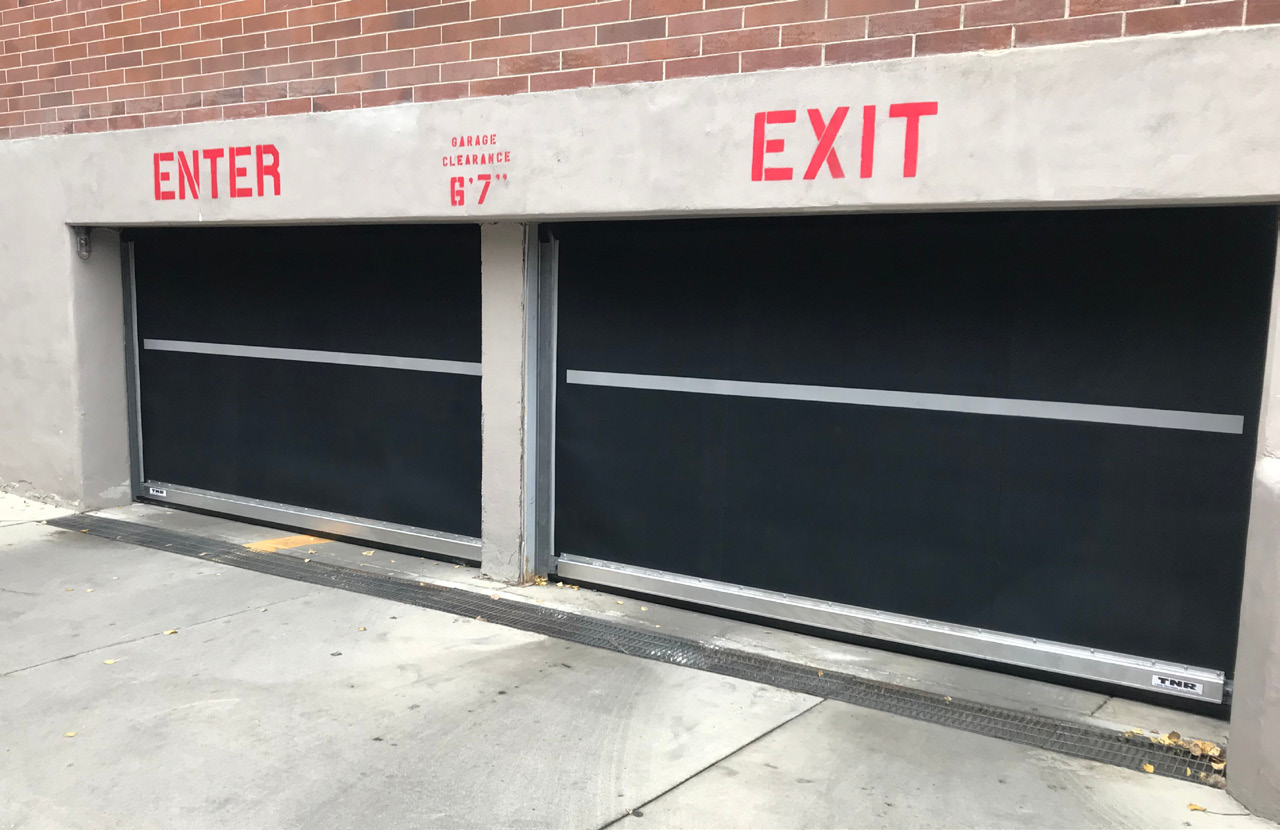

Extra Low Headroom (HDLH)For those applications that have an extra low headroom, this door has the same features as the HDP door but it only needs 13" of headroom cleanance. |
|

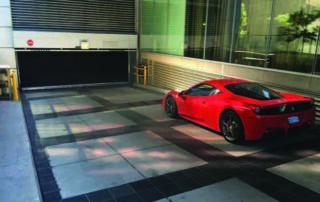

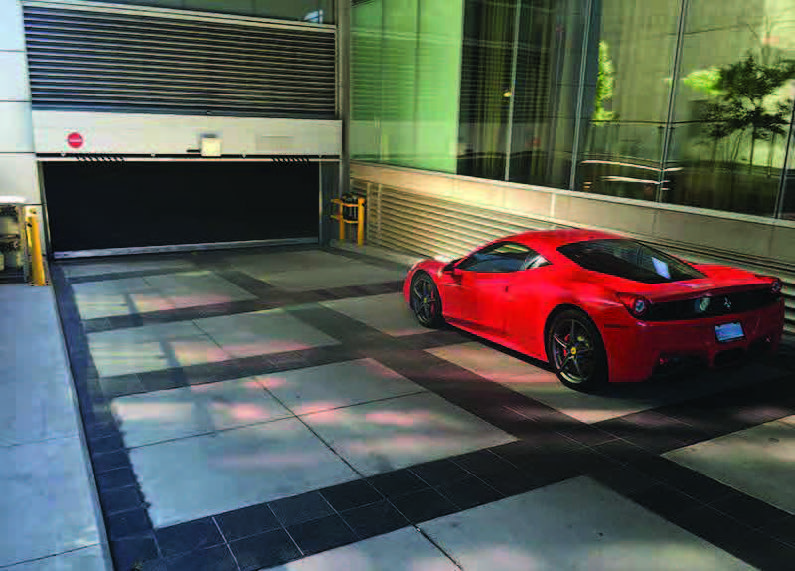

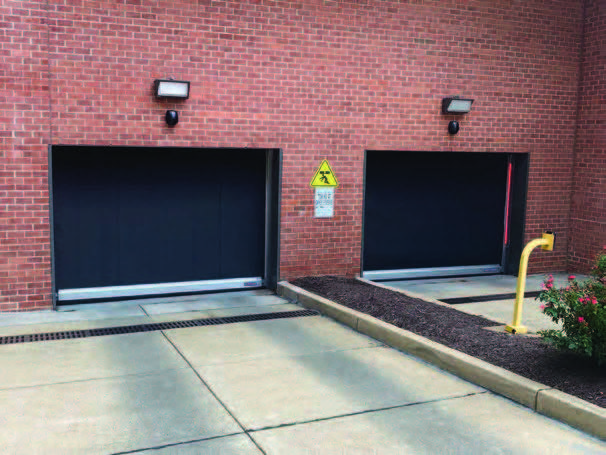

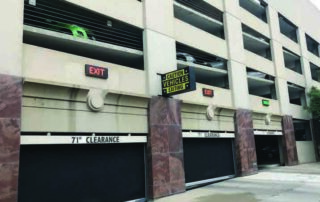

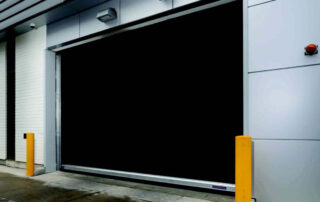

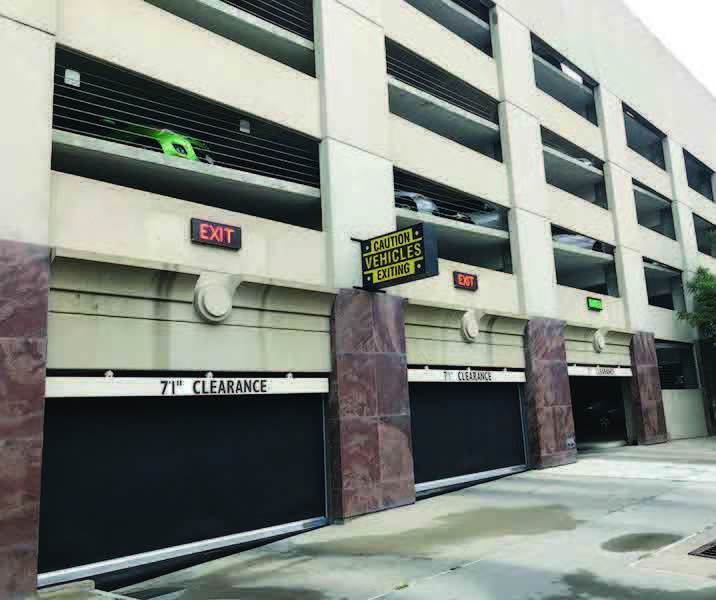

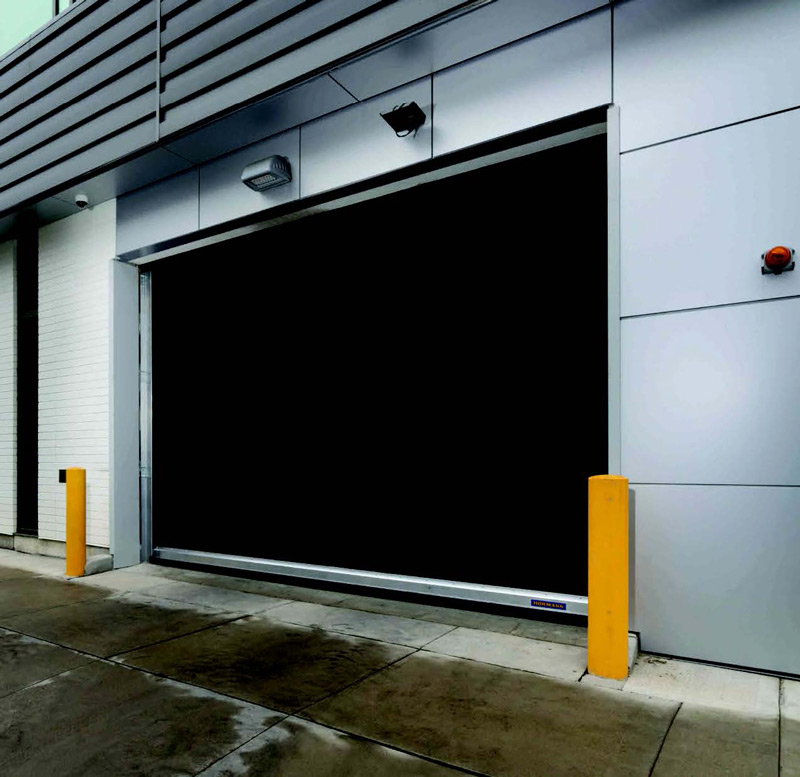

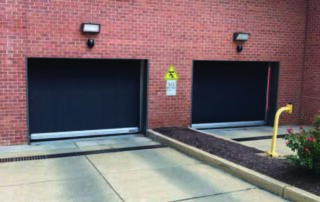

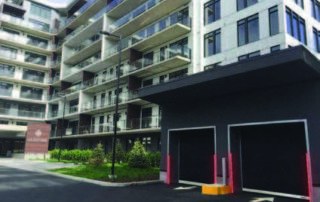

Low Headroom Chain Drive (HD-CD 2530)The HD-CD 2530 is a springless, chain drive low headroom rubber door designed for parking garages where extremely reliable, high-cycle operation is a must. All the same dependable HD SERIES features plus a unique low headroom design that only needs 13" of headroom cleanance. |
Model Comparison Chart
| Low Headroom (HDP) | Extra Low Headroom (HDLH) | Chain Drive (HD-CD 2530) | |
| Maximum Door Size | |||
| Minimum Headroom Clearance | 18" | 13" | 13" |
| Opening Speeds | |||
| Drive | Direct drive operator, springless | Direct drive operator, springless | Chain drive operator, springless |
| Curtain Type | |||
| Static Windload | |||
| Traveling Windbar | Optional for windy applications. | Optional weighted bottom bar for 15 lb/ft. | Optional weighted bottom bar, increased windload protection (standard on door width >12 ft) |

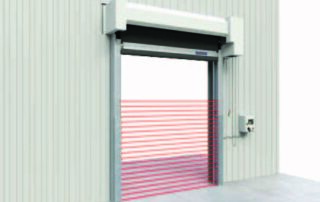

| In Guide Light Curtain | |||
| Photoeyes | |||
| Lite-Advance Door Monitoring Lights | |||

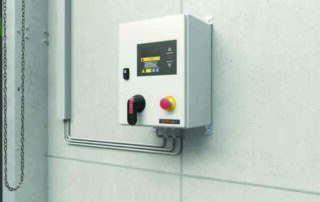

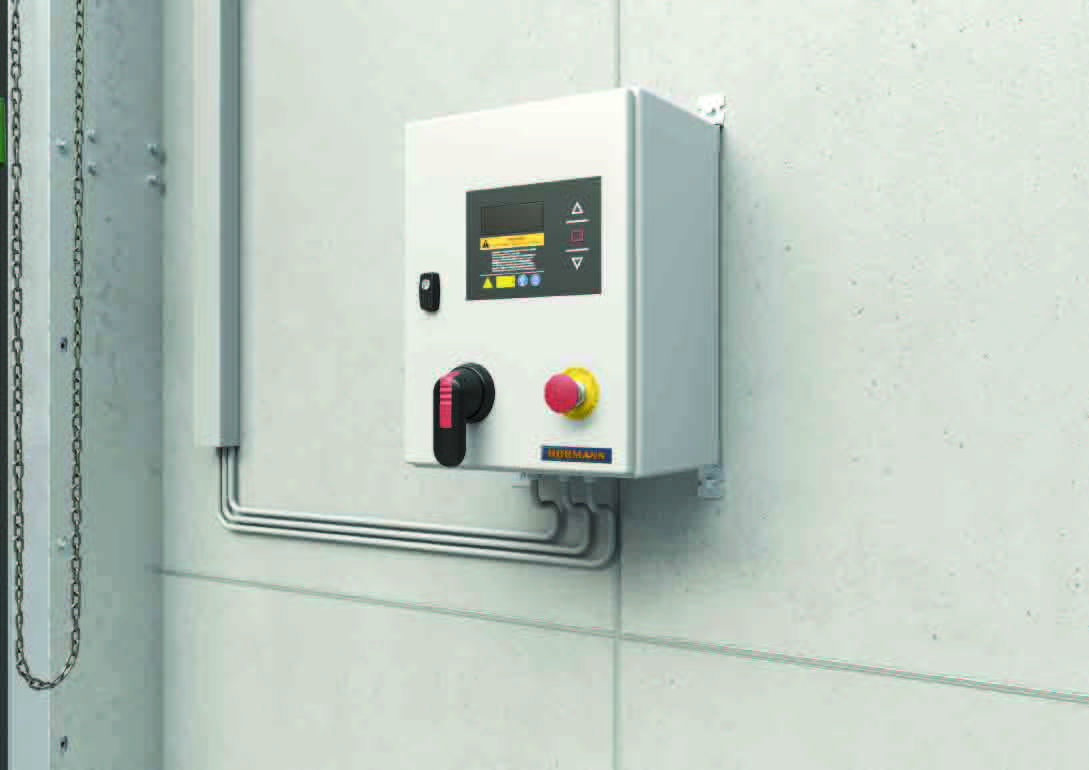

| Control Panel | |||
| Activation | |||
| Frame | |||
| Egress | |||
Customizations
- Activation options: Remote controls, pull cords, loop detectors, motion detectors and more.
- Curtain colours.
- Windows.
- Glavanized hoods.
- Access controls.
- Speciality functions.
- Sequencing.
- Traffic lights.
Warranty
Limited Lifetime
Curtain
Limited Lifetime
NEWGEN Guides
2 Years
Parts and Labour
- Curtain: Limited lifetime.
- NEWGEN guides: Limited lifetime.
- Operators with frequency drive: 5 years or 1 million cycles.
- Parts and labour: 2 years.
