Industrial & Food Grade High Velocity Fan
Jump to: Information | Photos | Customers | Compare Models | Customizations | Warranty |
✓ Keeps workers cool: These industrial-grade fans efficiently move the air and creates and evaporating cooling effect to keep everyone cool and comfortable in the hot summer months.
✓ Heavy-duty and high velocity air circulation: Circulates air up to 17,000 CFM and creates a cooling air that can be felt from up to 140 feet away.
✓ Food-grade safe: Stainless steel guards and washdown motor make it safe for any food service and processing facility.
✓ Multiple styles to fit your facility: Available in 10″, 14″, 18″, 22″, 26″, 30″ and 34″ sizes along with eight different mounting options to suit your needs.
Information

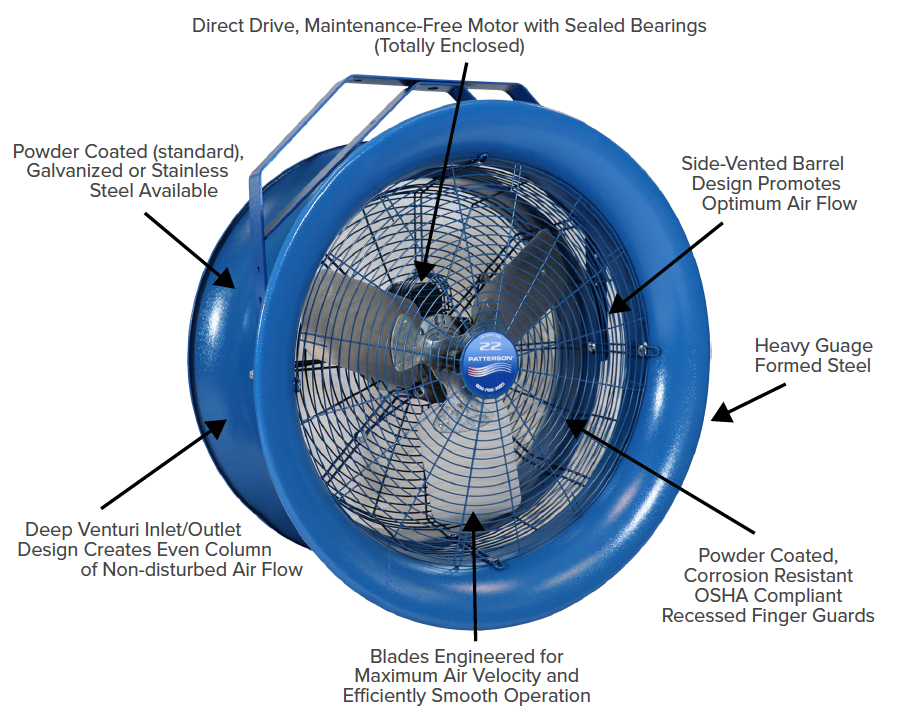

Heavy-Duty High Velocity Fans

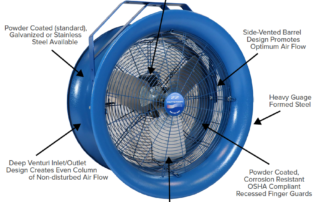

The heavy-duty design of these commercial and industrial fans produces an optimum and undisturbed air flow. They are engineered to provide maximum air velocity while giving an efficiently smooth operation.
It is available in corrosive resistant and OSHA compliant powder coated, galvanized or stainless steel. While the maintenance-free direct drive motor is also available the standard totally enclosed, stainless steel or washdown duty making it suitable for any wet or moist indoor or outdoor environment.
From Workstation Fans to Floor Fans – There’s a Fan for You
From fans as small as 10″ for your workstation or fans as large as 34″, we have a fan that will suit your needs. These industrial fans are available in 10″, 14″, 18″, 22″, 26″, 30″ and 34″.
These powerful commercial fans can reach up to 17,000 CFM and can be as quiet as 56.5 dB. Keep your workers cool and comfortable during the hot summer months and the air circulating with these high velocity fans.

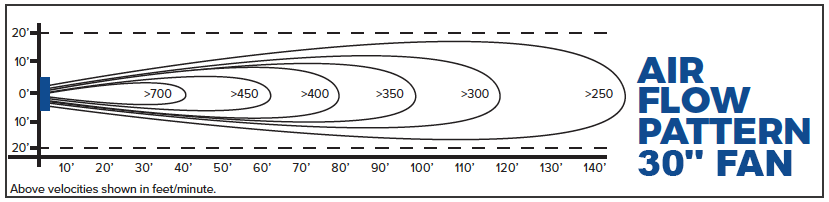

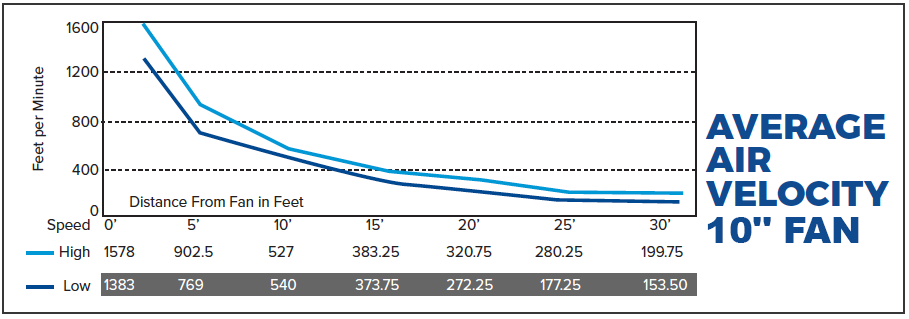

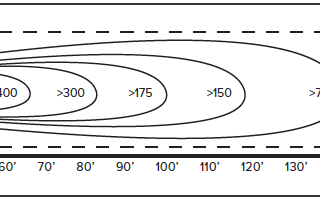

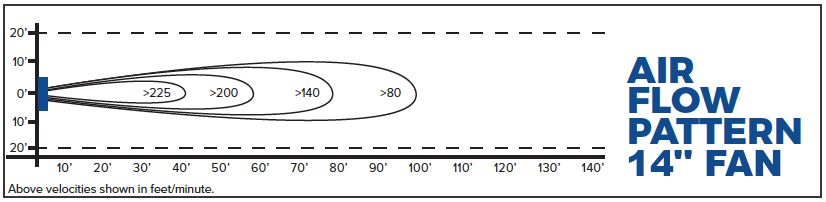

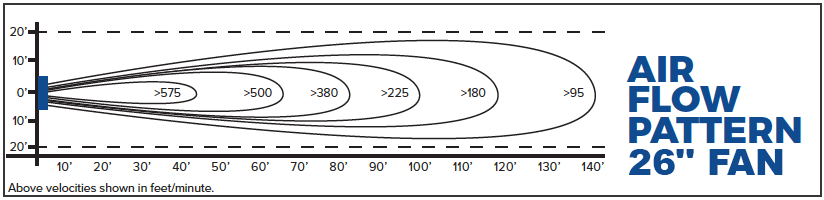

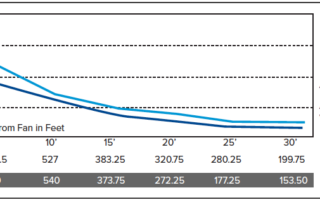

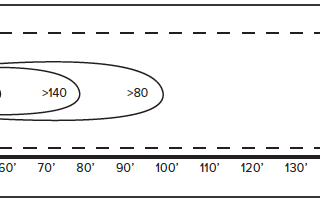

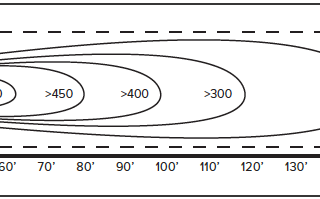

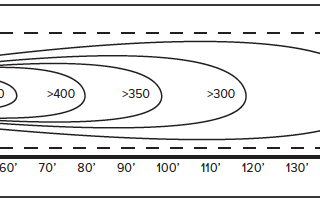

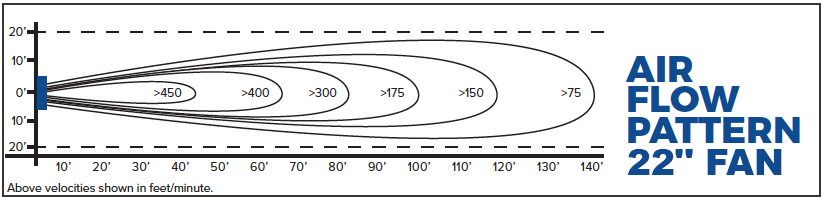

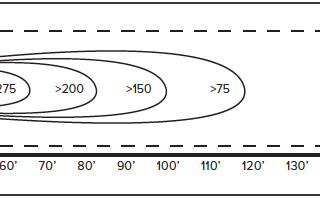

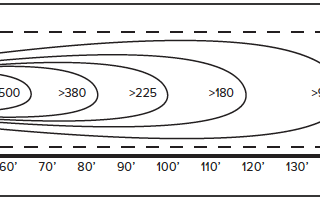

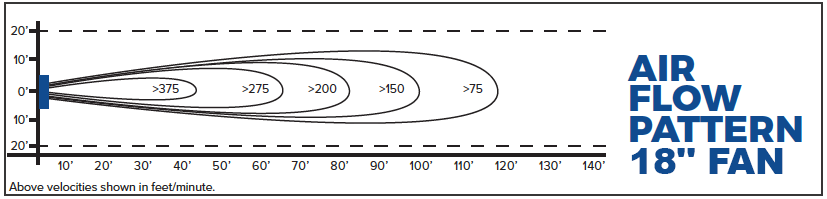

Cooling Power from Up to 140 Feet Away
Feel the cooling effect from these industrial high velocity fans from up to 140 feet away.

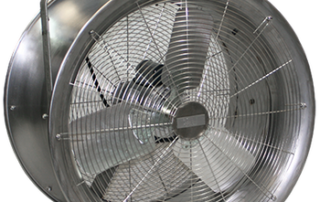

Stainless Steel High Velocity Fan

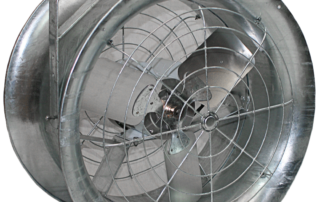

Galvanized High Velocity Fan
Food-Grade & Food Processing Safe
These industrial fans are available in:
- OSHA compliant blue powder coated guards.
- OSHA compliant stainless steel guards.
- OSHA compliant galvanized guards.
While the heavy-duty motor is available in 3 different styles:
- Direct drive totally enclosed.
- Washdown duty.
- Stainless steel.
The stainless steel or galvanized version combined with a washdown motor is perfect for food-grade and food processing facilities. The washdown motor is designed to handle moist or wet environments and high pressure cleaning with concentrated solutions without being affected.

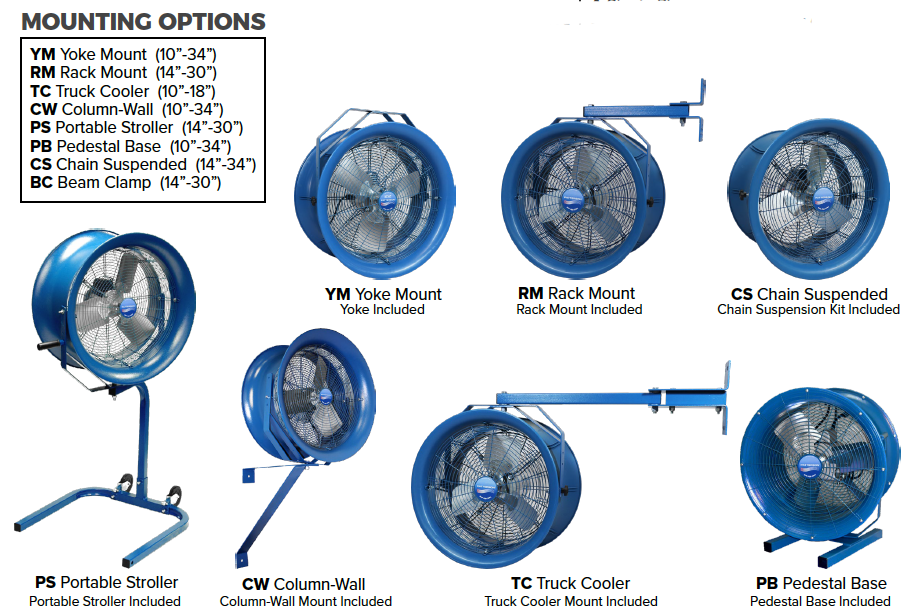

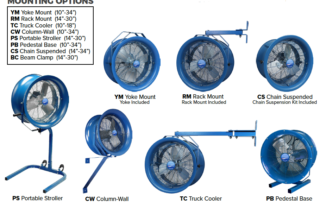

Eight Mounting Styles to Fit Your Needs
Whether you have limited ceiling space, cramped floors or shifting workstations; we have a style to fit your needs:
- Yoke mount

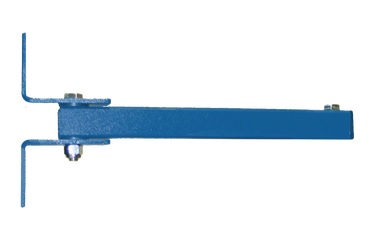

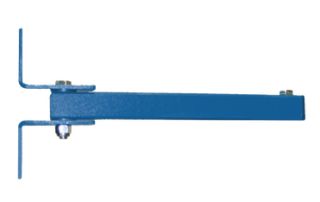

- Rack mount

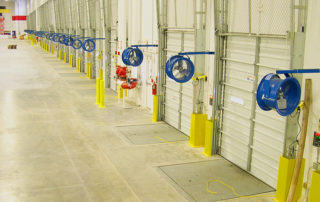

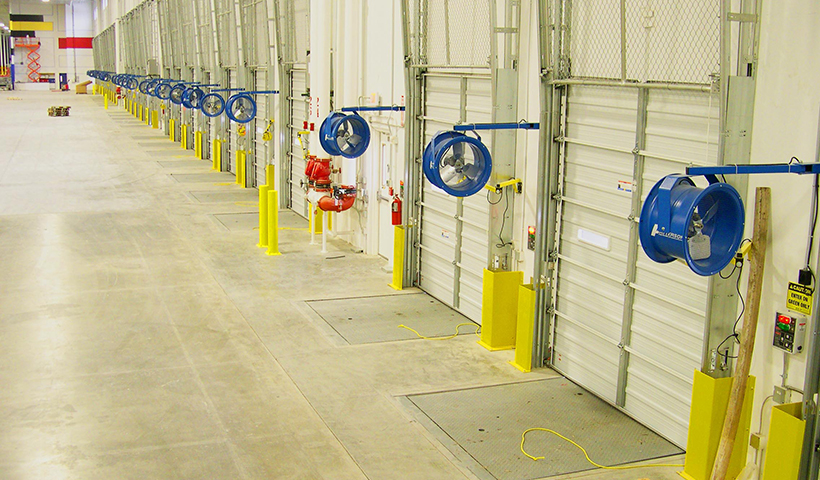

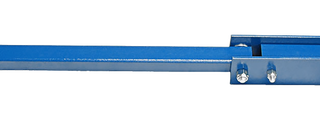

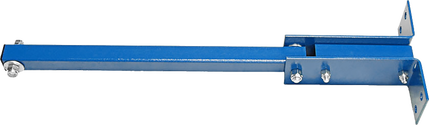

- Truck cooler mount

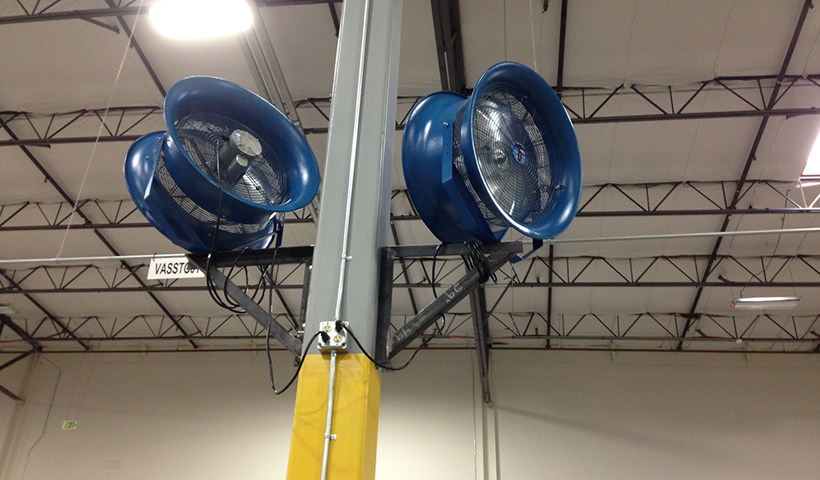

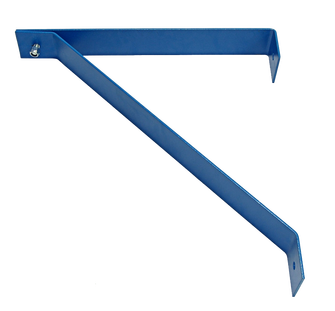

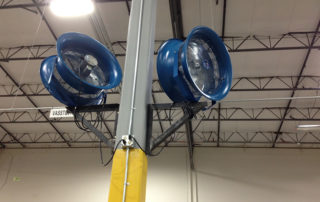

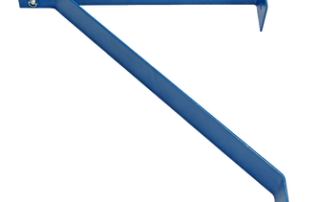

- Column-wall mount

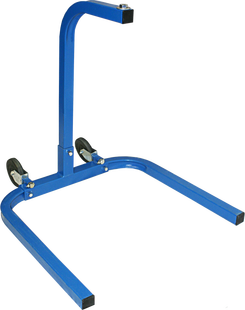

- Portable stroller

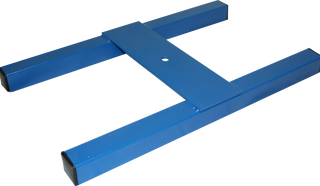

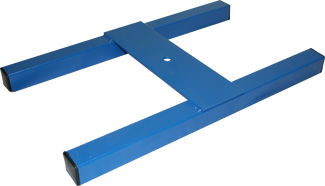

- Pedestal base
- Chain suspended mount
- Beam clamp
Available in blue powder coated, galvanized and stainless steel.
Photos
Model Comparison Chart
| 10" | 14" | 18" | 22" | 26" | 30" | 34" | |
| CFM | 800 | 2,600 | 3,800 | 5,570 | 7,650 | 12,000 | 17,000 |
| Air Throw Distance | 40' | 60' | 80' | 120' | 150' | 200' | 230' |
| Motor | Shaded Pole | 0.25 HP | 0.5 HP | 0.5 HP | 1 HP | 1 HP | 3 HP |
| Voltage | 115V | 460V | |||||
| Running Amps | 0.8 | 2.8 | 6.0 | 1.8 | 4.6 | ||
| Volume at 20' | 56.5 dB | 63.1 dB | 65.1 dB | 66.5 dB | 80.8 dB | 82.2 dB | 88 dB |
| Coating | Blue powder coated | Blue powder coated, galvanized or stainless steel | Blue powder coated or stainless steel | ||||
| Guard Styles | Standard | Hand guard, finger spiral hybrid or finger mesh | |||||
| Mounting Yoke (Standard) |
Yes | ||||||
| Mounting Pedestal Base |
Yes | ||||||
| Mounting Column-Wall |
Yes | ||||||
| Mounting Truck Cooler |
Yes | No | |||||
| Mounting Rack Mount |
No | Yes | No | ||||
| Mounting Portable Stroller |
No | Yes | No | ||||
| Mounting Chain Suspended |
No | Yes | |||||
| Mounting Beam Clamp |
No | Yes | No | ||||
| Weight* | 12.5 lbs | 35 lbs | 44 lbs | 49 lbs | 93 lbs | 125 lbs | 215 lbs |
Customizations
- Motor options:
- Totally enclosed.
- Washdown duty.
- Stainless steel.

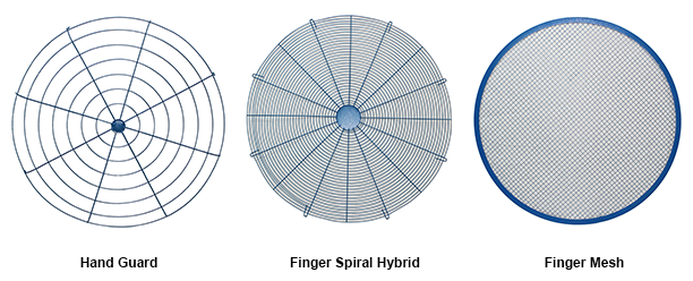

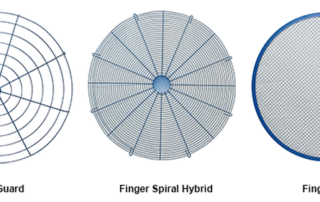

- Fan guard options:
- Hand guard.
- Finger spiral hybrid.
- Finger mesh.
- Coating options:
- OSHA compliant blue, powder coated guards.
- OSHA compliant galvanized guards.
- OSHA compliant stainless steel guards.

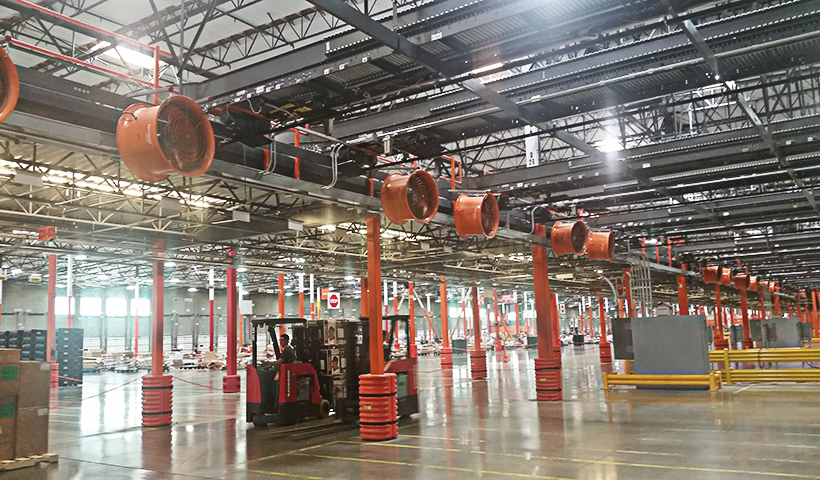

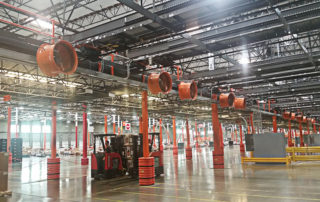

- Custom painted.
- Mounting options:
- Yoke (blue powder coated, galvanized or stainless steel).
- Pedestal base (blue powder coated or galvanized).
- Column-wall (blue powder coated, galvanized or stainless steel).
- Truck cooler (blue powder coated only).
- Rack mount (blue powder coated only).
- Portable stroller (blue powder coated, galvanized or stainless steel).
- Chain suspended.
- Beam clamp.
Warranty
- 10″: 1 year limited.
- 14″, 18″, 22″, 26″, 30″ and 34″: 2 years limited.
