Project Overview

Lift Table with Concrete Pit

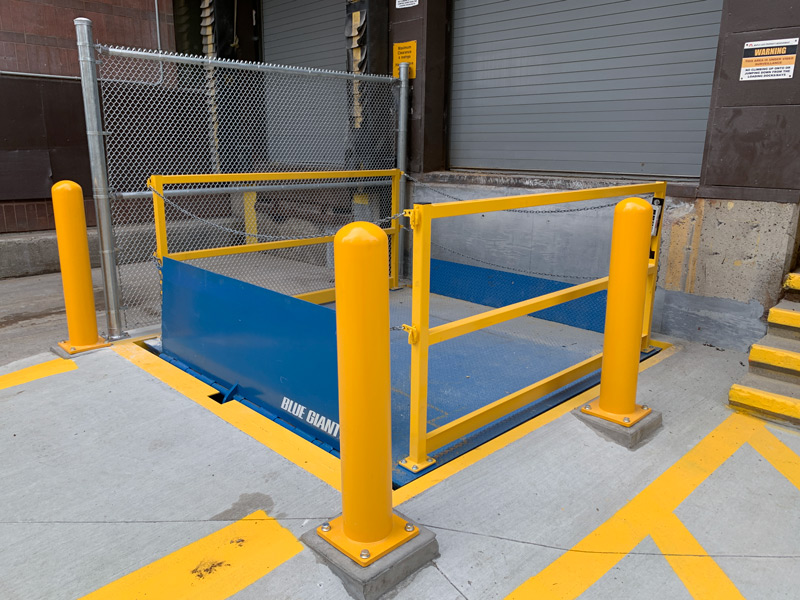

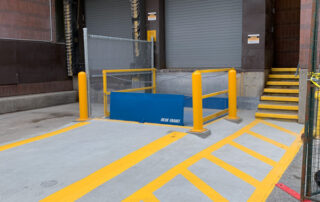

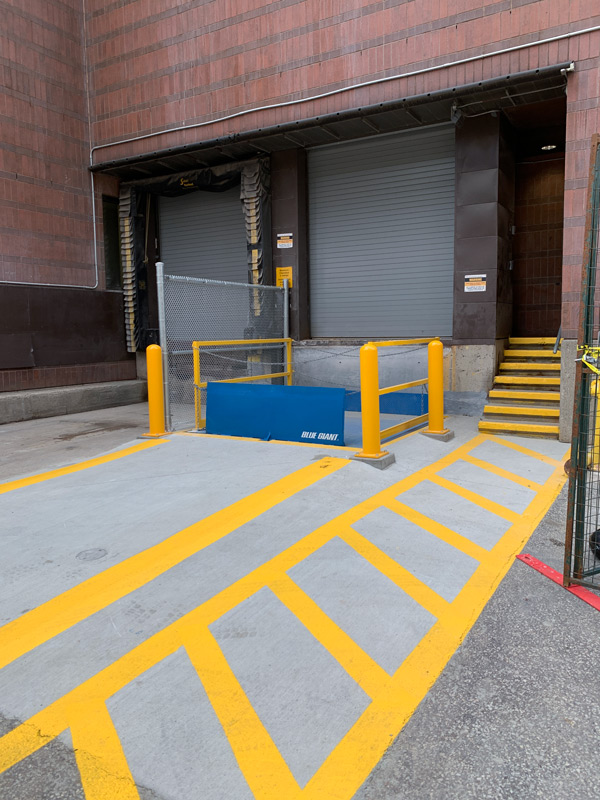

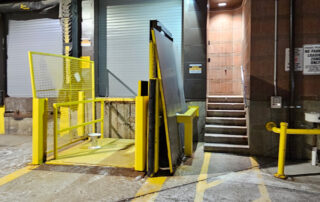

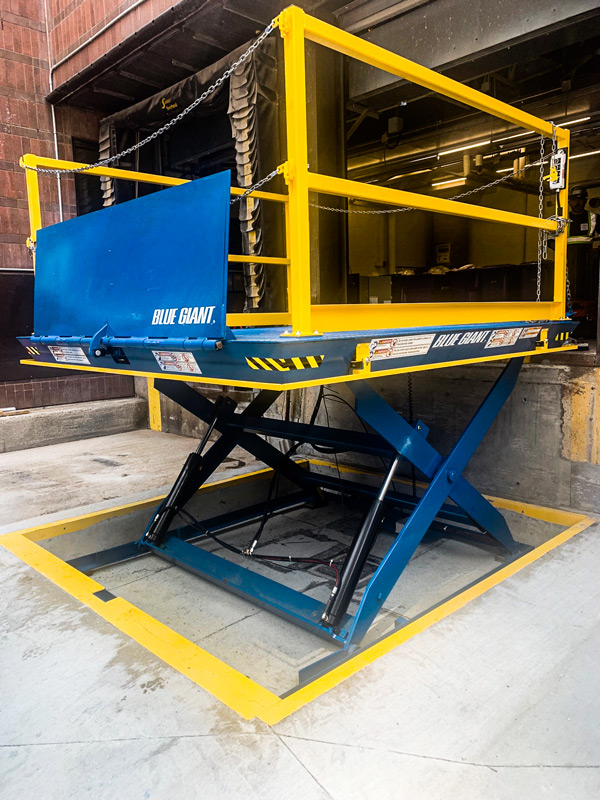

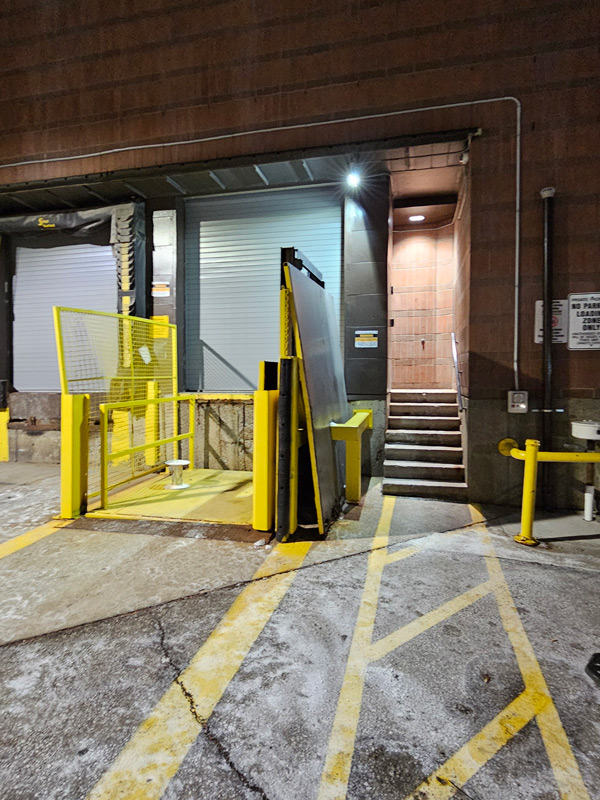

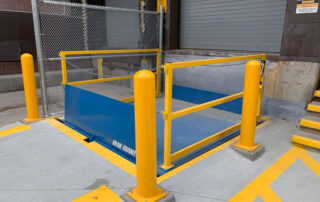

The old lift table at 4900 Yonge Street in Toronto had reached the end of its lifespan and needed to be replaced. Our Equipment Construction and Design team collaborated with Palmark Construction to provide and install a new Blue Giant LoMaster Stationary Dock Lift. The dock lift was installed into a preformed concrete pit so that the lift table could sit flush to the ground for easy loading and unloading.

Waterproof Controls and Easy Operation

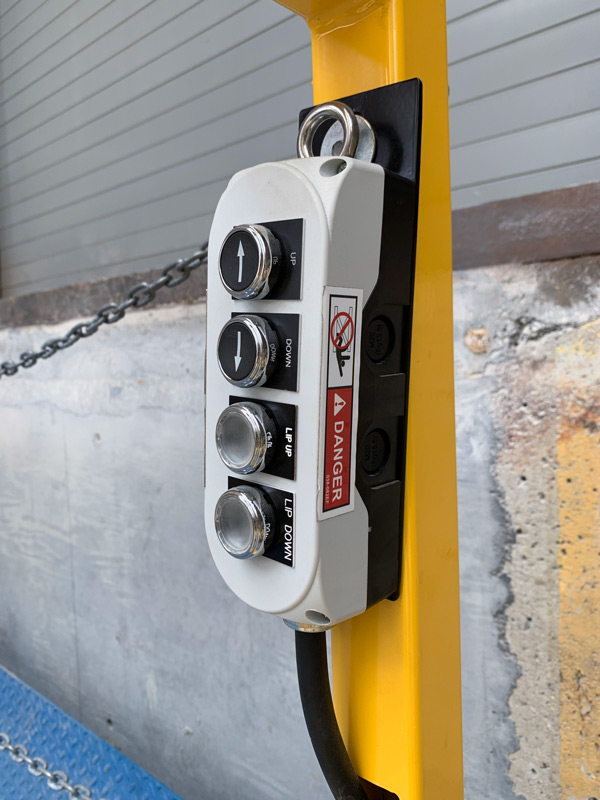

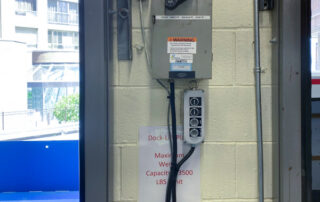

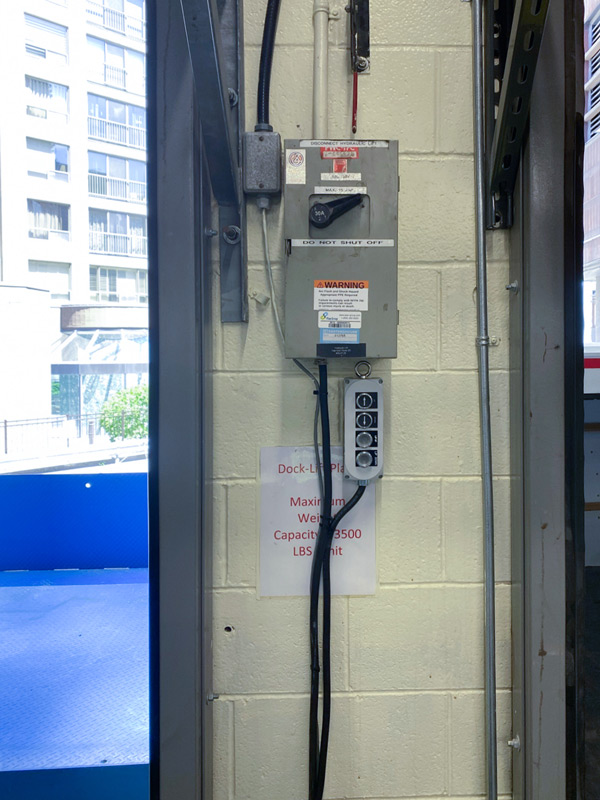

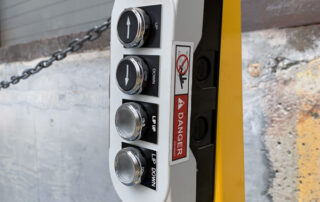

Our electrical team installed a NEMA 4X-rated (waterproof) push-button control and mounted it on the deck for easy operation. Additionally, NEMA 4X-rated (waterproof) push-button controls were added on the inside of the door, which we interlocked with the overhead door to prevent the dock lift from being operated from the inside when the door is closed. This was added to improve safety and to prevent the dock lift from being operated from inside when the operator does not have a clear view of the dock lift.

Enhance Safety with LoMaster Dock Lift

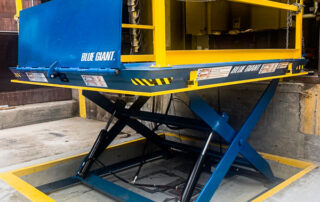

These controls both raise and lower the dock lift, in addition to raising and lowering the optional hydraulic lip. Furthermore, the deck has an anti-slip powder coat to prevent accidents. Moreover, the frame and deck have an enriched zinc powder coating to protect them from rust.

To further enhance safety and stay compliant with OHSA, this dock lift features:

• Electric toe guards.
• Yellow curb angles to mark concrete pit.
• 42” high bolt-on steel guardrail comes with a mid-rail and 4” kick plate.

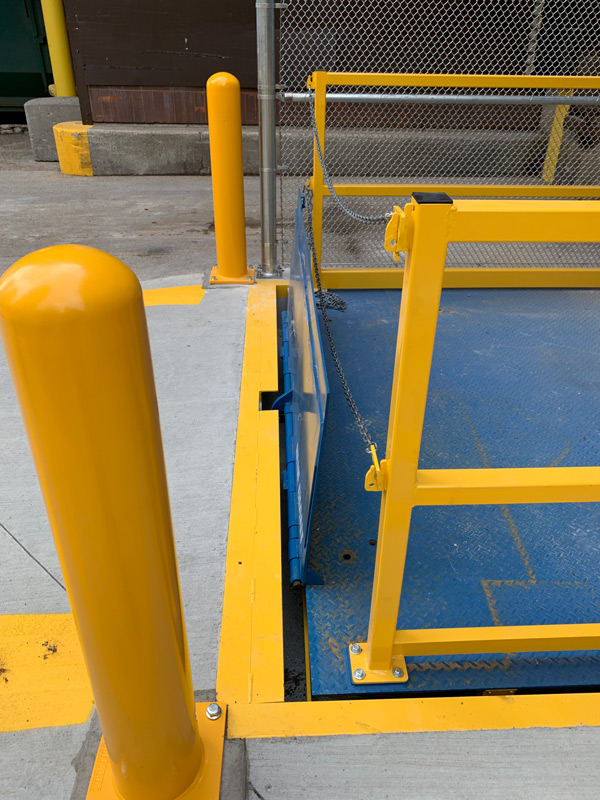

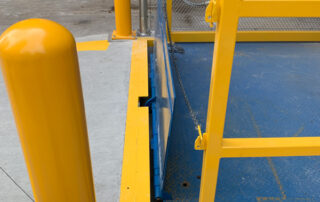

• Bollards to protect the new dock lift from accidental impacts.
• Personnel restraint chains on the openings of the dock lift.
