Information
Jump to: Custom Scissor Lift Tables | Mobile Lift Tables | Tilters | Upenders | Pallet Positioner | Turn Tables
Custom Scissor Lift Tables
- Heavy-duty cylinders for hydraulic models
- Heavy-duty air spring for pneumatic models
- Heavy-duty steel legs
- Internal power units (except Zero Ground Level and Double Scissor models)
- Lifetime lubricated bushings
- Safety maintenance blocks
- Standard hand controls
Heavy-Duty to
Handle Heavy Loads

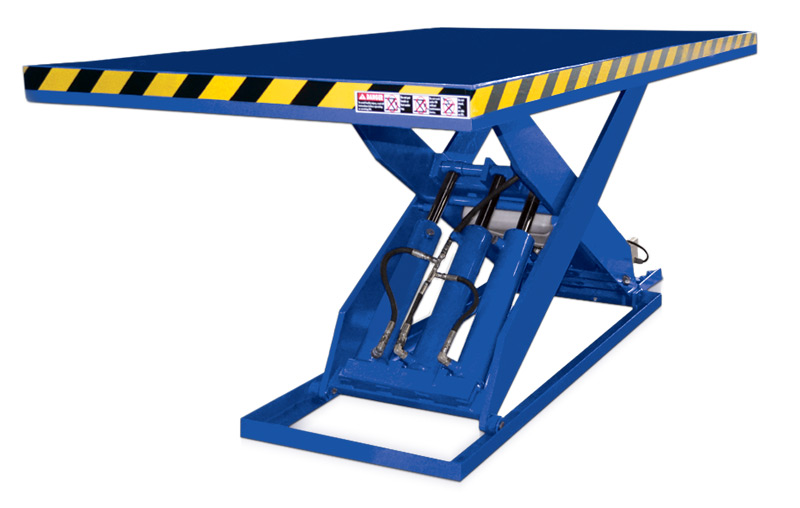

Standard Duty Scissor Lift Table
The Standard Duty Scissor Lift Table is ergonomically designed to improve operator efficiency. With vertical travel from 24″ to 60″ high and lifting capacities of up to 6,000 lbs., these units can handle loads with ease.

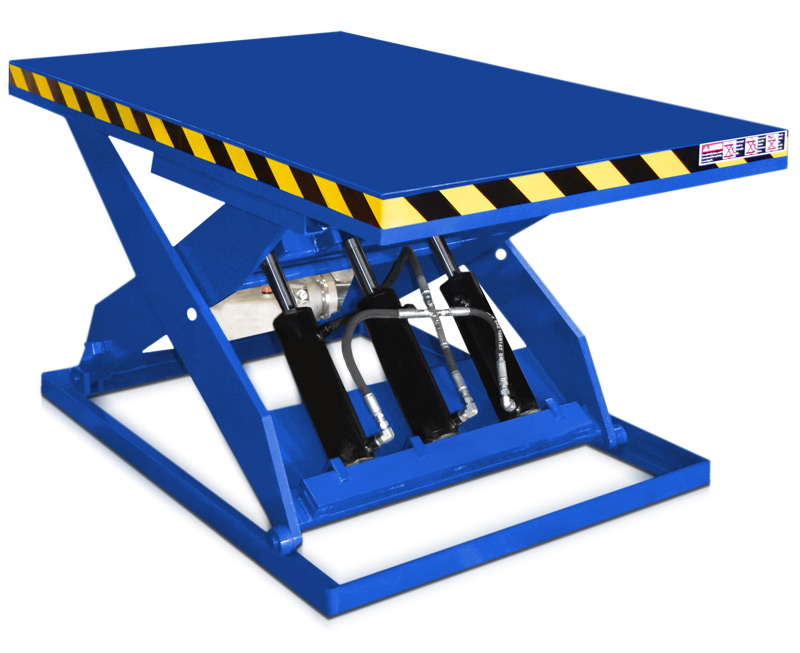

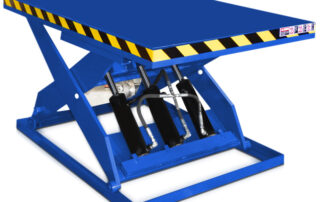

Wide Base Scissor Lift Table
Our Wide Base Scissor Lift Tables are able to lift loads of up to 6,000 lbs. The wide base provides stability and added support required to lift larger loads. With platforms as wide as 84″ x 120″.

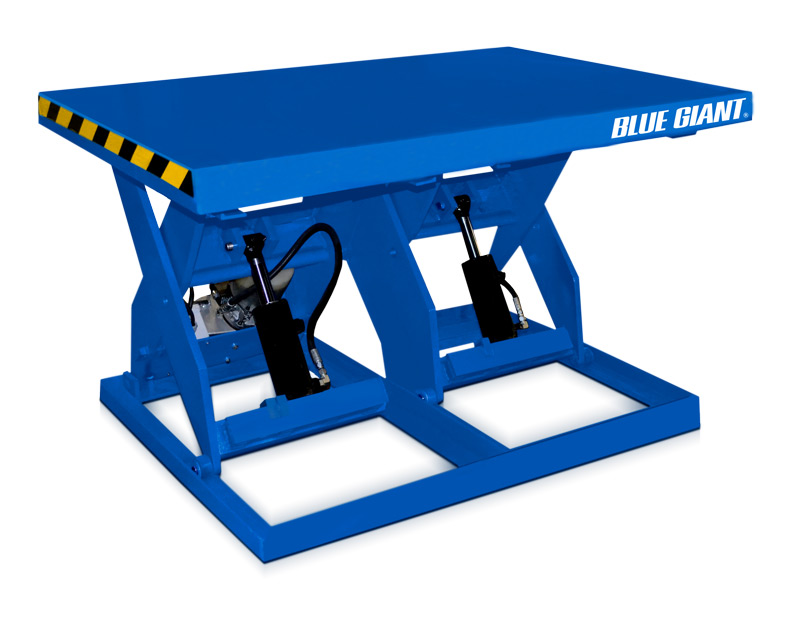

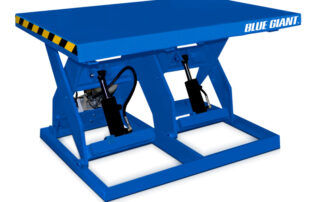

Double Wide Scissor Lift Table
The Double Wide Scissor Lift Table is designed to provide enhanced load support and is equipped to lift loads ranging from 2,000 to 6,000 lbs. In addition, to a vertical travel range from 24″ to 60″ high. With platforms as wide as 96″ x 120″.

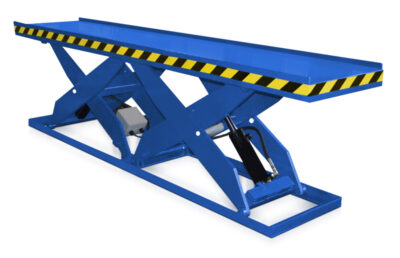

Tandem Long Scissor Lift Table
Our Tandem Scissor Lift Tables are durable, hydraulic scissor lift tables that are perfect for applications requiring longer platform sizes. Platforms can be as long as 48″ x 220″.

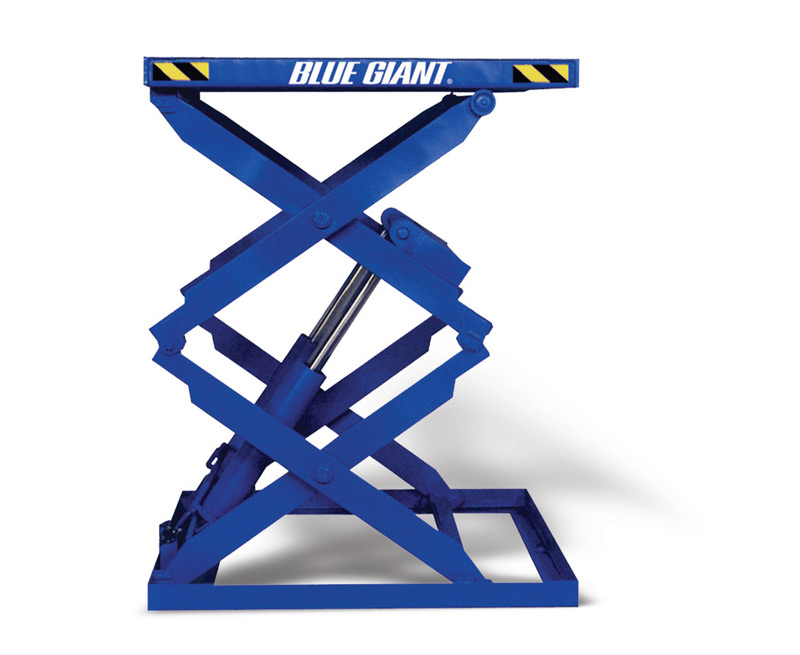

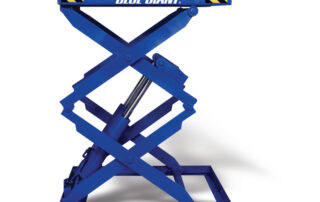

Double Scissor Lift Table
The Double Scissor Lift Table is engineered to reach a vertical travel height of up to 72″ making it ideal for higher lift applications.

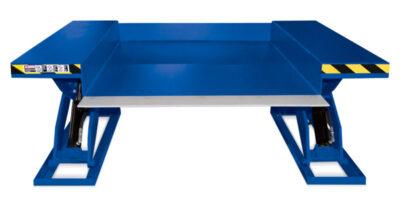

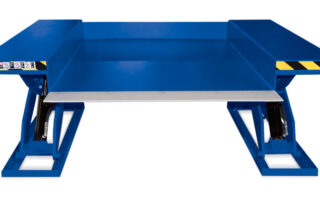

Zero Ground Level Scissor Lift Table
Zero Ground Level Scissor Lifts are built for easy floor-level loading and unloading by pallet jacks and other material handling equipment.

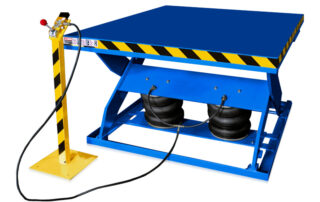

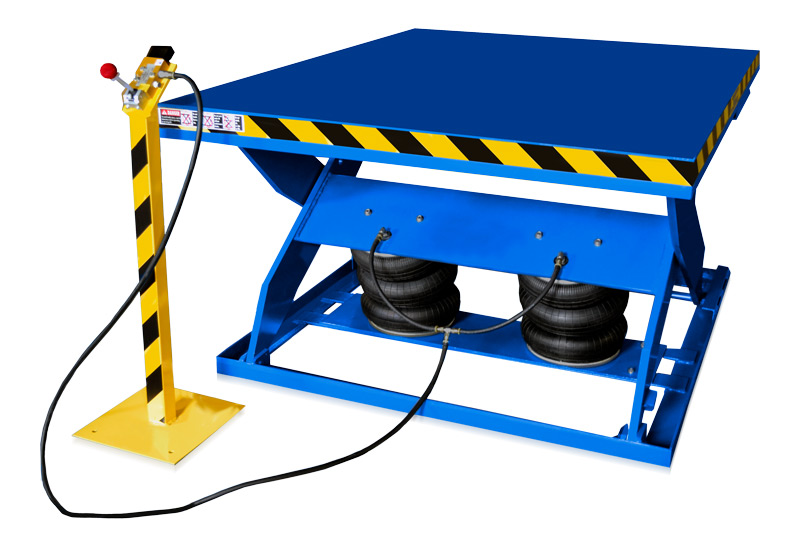

Pneumatic Scissor Lift Tables
Pneumatic Scissor Lift Tables are 100% air actuated and are ideal in applications where hydraulic equipment (oils and fluids) is prohibited.
Mobile Lift Tables
Manual Mobile Lift Table (Single or Double Scissor)
The manually adjustable working height helps to reduce worker fatigue by minimizing bending, lifting, and reaching. Available in 660, 770 or 1,100 lbs capacities in either single (35.4″ max height) or double scissor lifts (51.18″ max height)
Battery Mobile Lift Table (Double Scissor)
Each table features structural heavy-duty steel construction for durability and longevity. The battery powered mobile double scissor lift has a 770 lbs capacity and can lift loads up to 52″ hight.
Titlers (Hydraulic and Pneumatic)

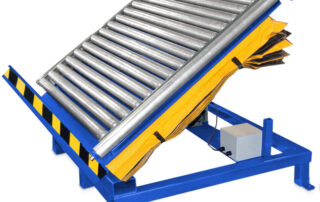

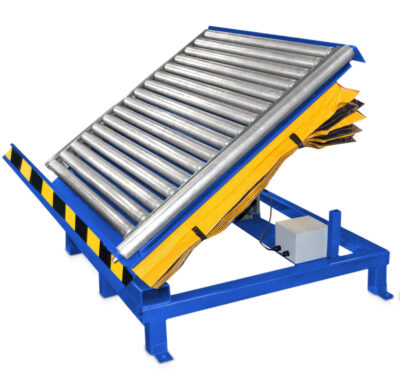

Hydraulic Tilter
Hydraulic tilters are designed for applications where tilting the load provides improved access to the product. They come with 30°, 60° and 90° tilting angles.

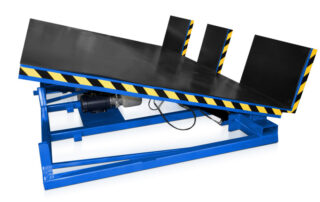

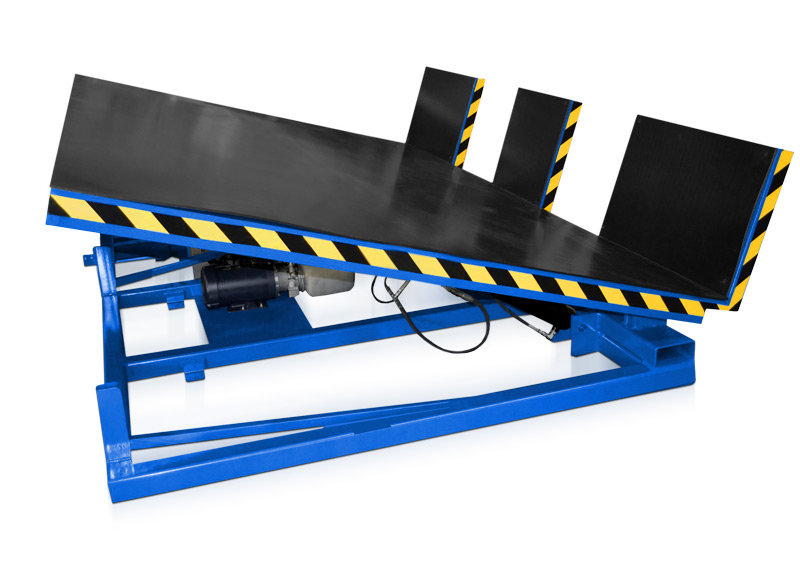

Wide Base Hydraulic Tilter
Wide Base Hydraulic tilters are ideal for all tilting applications that require a wider platform size. These units come with a standard base and platform of 60″ x 60″ and a maximum platform size of 120″ x 120″.

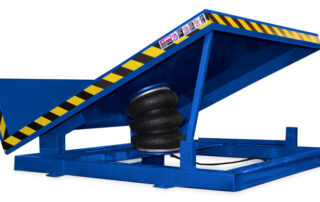

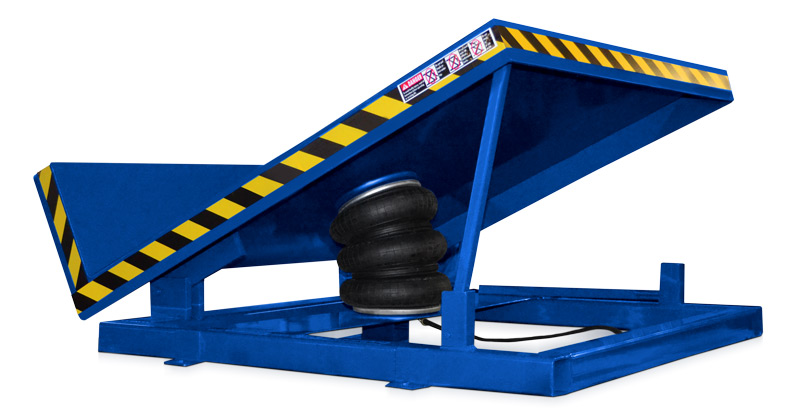

Pneumatic Tilter
Pneumatic Tilters are 100% air actuated and are ideal in applications where hydraulic equipment (oils and fluids) is prohibited. They feature 30° and 45° of tilt for easy product access and storage.

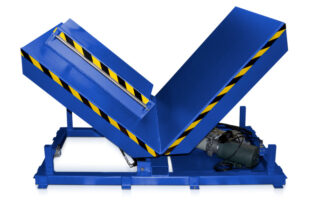

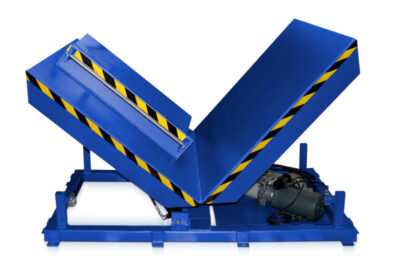

Hydraulic Upenders
Upenders
The 90° Upenders are perfect for the safe re-positioning of pallet loads and odd shaped objects such as rolls or coils.
Pallet Handling Lifts

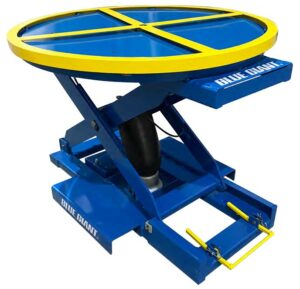

Automatic Pallet Positioner (PL4)
The PL4 Automatic Pallet Positioner with a turn table helps prevent worker injury by bringing the top of the load closer to the worker, reducing bending, lifting, and stretching. The pallet positioner reduces pallet loading and unloading times by up to 40%! In addition, it can self-level loads ranging from 400-3,500 lbs with a maximum capacity of 4,000 lbs.

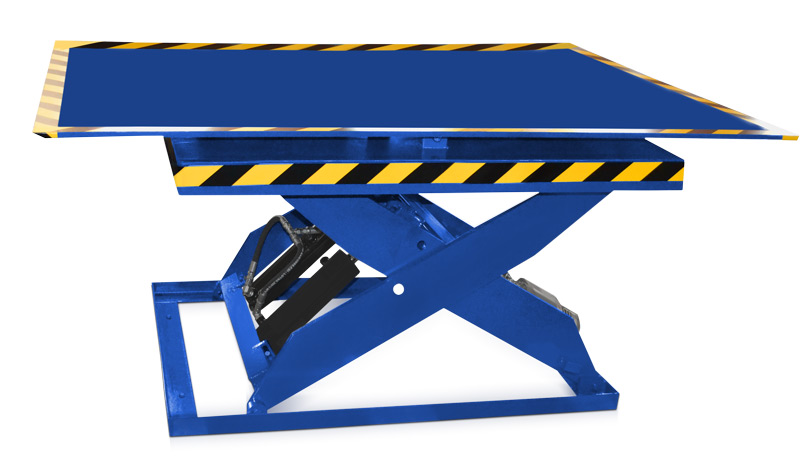

Turn Tables

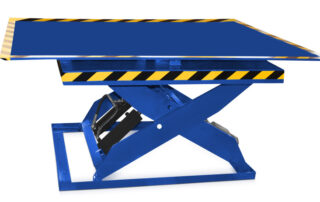

Turn Lift Table
Manual Turn Lift Tables are designed to enhance operator ergonomics and productivity, by reducing the necessity to reach across, or walk around a load. 90° to 180° detents can be added to increase operator efficiency.
Photos
Specifications
Load Capacities
| Standard Duty: 2,000 lbs, 4,000 lbs or 6,000 lbs |
Wide Base: 2,000 lbs, 4,000 lbs or 6,000 lbs |
Double Wide: 4,000 lbs, 6,000 lbs or 12,000 lbs |
| Tandem Long: 4,000 lbs, 6,000 lbs or 12,000 lbs |
Double: 1,000 lbs, 2,000 lbs, 3,000 lbs or 4,000 lbs |
Zero Ground Level: 2,000 lbs or 4,000 lbs |
| Pneumatic: 1,000 lbs, 2,000 lbs or 4,000 lbs |
Weight
| Standard Duty: 550-1,450 lbs |
Wide Base: 720-1,800 lbs |
Double Wide: 1,280- 2,750 lbs |
| Tandem Long: 1,280-2,750 lbs |
Double: 1,100-1,505 lbs |
Zero Ground Level: 1,300-1,425 lbs |
| Pneumatic: 820-1,135 lbs |
Travel
| Standard Duty: 24", 36", 48" or 60" |
Wide Base: 24", 36", 48" or 60" |
Double Wide: 24", 36", 48" or 60" |
| Tandem Long: 24", 36", 48" or 60" |
Double: 48", 60" or 72" |
Zero Ground Level: 36" |
| Pneumatic: 24" |
Lowered Heights
| Standard Duty: 7.5"-10" |
Wide Base: 7.5"-10" |
Double Wide: 7.5"-10" |
| Tandem Long: 7.5"-10" |
Double: 12" |
Zero Ground Level: 3/8"-1/2" |
| Pneumatic: 9.5" |
Rasied Height
| Standard Duty: 31.5"-70" |
Wide Base: 31.5"-70" |
Double Wide: 31.5"-70" |
| Tandem Long: 31.5"-70" |
Double: 60"-84" |
Zero Ground Level: 36.5" |
| Pneumatic: 33.5" |
Minimum Platform Size
| Standard Duty: 24" x 36" |
Wide Base: 36" x 36" |
Double Wide: 72" x 36" |
| Tandem Long: 24" x 72" |
Double: 24" x 48" |
Zero Ground Level: 44" x 48" |
| Pneumatic: 36" x 48" |
Maximum Platform Size
| Standard Duty: 48" x 120" |
Wide Base: 84" x 120" |
Double Wide: 96" x 120" |
| Tandem Long: 48" x 220" |
Double: 48" x 72" |
Zero Ground Level: 50" x 48" |
| Pneumatic: 48" x 60" |
Load Capacities
| Manual Single Scissor: 660 lbs or 1,100 lbs |
Manual Double Scissor: 770 lbs |
Battery Double Scissor: 770 lbs |
Control
| Manual Single Scissor: Manual |
Manual Double Scissor: Manual |
Battery Double Scissor: Battery |
Lowered Heights
| Manual Single Scissor: 11" |
Manual Double Scissor: 13.8" |
Battery Double Scissor: 15.9" |
Rasied Height
| Manual Single Scissor: 35.4" |
Manual Double Scissor: 51.18" |
Battery Double Scissor: 52" |
Platform Size
| Manual Single Scissor: 19.7" x 32" |
Manual Double Scissor: 19.7" x 32" |
Battery Double Scissor: 19.7" x 32" |
Load Capacities
| Hydraulic: 2,000 lbs, 4,000 lbs or 6,000 lbs |
Wide Base: 2,000 lbs, 4,000 lbs or 6,000 lbs |
Pneumatic: 1,000 lbs, 2,000 lbs or 4,000 lbs |
Weight
| Hydraulic: 630-690 lbs |
Wide Base: 690-750 lbs |
Pneumatic: 640-880 lbs |
Tilt
| Hydraulic: 30°, 45° or 90° |
Wide Base: 45°, 60° or 90° |
Pneumatic: 30° or 45° |
Minimum Platform Size
| Hydraulic: 36" x 48" |
Wide Base: 60" x 60" |
Pneumatic: 36" x 48" |
Maximum Platform Size
| Hydraulic: 48" x 60" |
Wide Base: 96" x 96" |
Pneumatic: 48" x 60" |
Load Capacities2,000 lbs, 4,000 lbs or 6,000 lbs |
Weight1,500-1,700 lbs |
Tilt90° |
Lowered Height12" |
Load CapacitiesMaximum 4,000 lbs to self level loads from 400-3,500 lbs |
Raised Height33.5" |
Lowered Height10.5" |
Travel23" |
Platform Diameter43" |
Load Capacities4,000 lbs |
Weight200-625 lbs |
Lowered Height3" |
Minimum Platform Size24" x 24" |
Maximum Platform Size60" x 60" |
Customizations
- Accordion skirts
- Conveyor
- Electric toe guards
- External power unit
- Foot pedal control
- High cycle
- Oversized platform
- PLC controlled
- Platform with beveled edges
- Portability package
- Tilt table mounted to lift
- Travel limit switch
- Turn table mounted to lift
- Accordion skirts
- Conveyor
- Custom lips
- External power unit
- Oversized platform
- PLC controlled
- Foot pedal control
- Portability package
- Travel limit switch
- Accordion skirts
- Foot control
- Oversized platforms
- PLC controlled
- Remote power units
- Roller conveyors
- V-Cradles
- Custom sizes available
- 90° or 180° detents
- Conveyor mounted to top
- Floor / stand / scissor lift mounted
